NSN 4310-00-167-8995 204N, 00-167-8995, 001678995
Product Details | RECIPROCATING COMPRESSOR CYLINDER
4310-00-167-8995 A cylinder designed to compress air or gas from an initial intake pressure to a higher discharge pressure. Excludes cylinder assemblies.20241300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: 204N, 4310-00-167-8995, 00-167-8995, 4310001678995, 001678995
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-167-8995 | 21825 ( CYLINDER, RECIPROCATING COMPRESSOR ) |
Drawings & Photos | NSN 4310-00-167-8995
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4310-00-167-8995
Technical Data | NSN 4310-00-167-8995
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 10.500 INCHES NOMINAL |
| OVERALL HEIGHT | 10.625 INCHES NOMINAL |
| OVERALL DIAMETER | 8.000 INCHES NOMINAL |
| BODY MATERIAL | STEEL |
| BORE DIAMETER | 6.000 INCHES NOMINAL |
| BORE LENGTH | 10.500 INCHES NOMINAL |
| MOUNTING TYPE AND LOCATION | FLANGE CENTER SECTION |
| MOUNTING PROVISION | UNTHREADED MOUNTING HOLES |

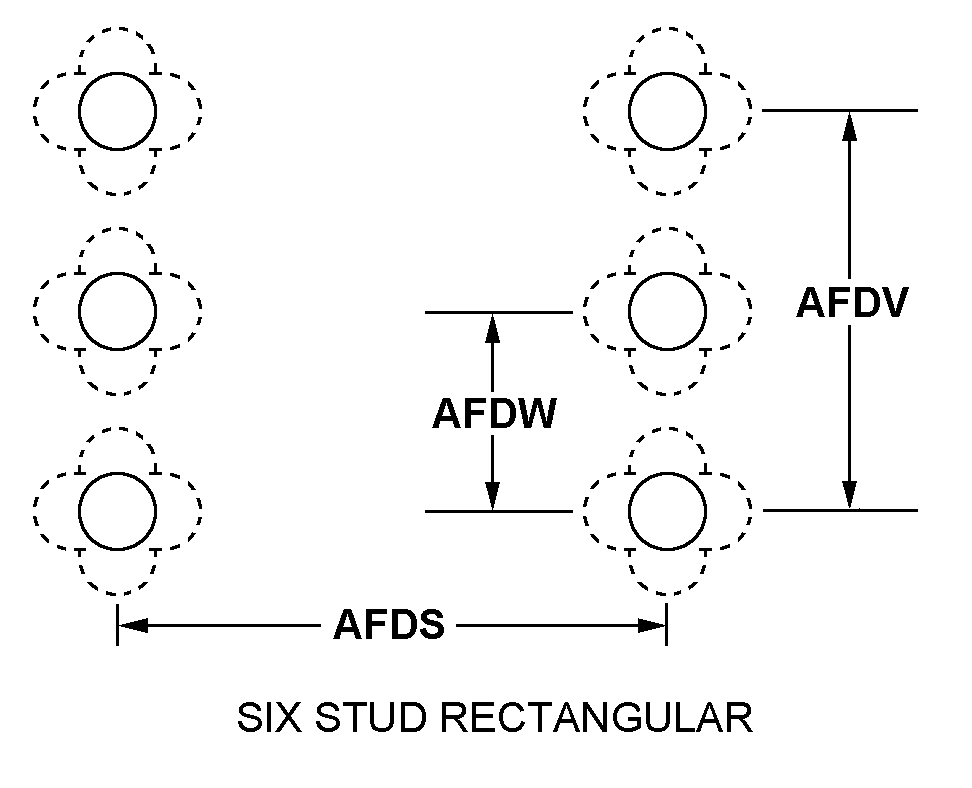

| MOUNTING PROVISION ARRANGEMENT STYLE | 23 SIX STUD RECTANGULAR |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 7.125 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 9.125 INCHES NOMINAL |
| SHORTEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 4.250 INCHES NOMINAL |
| MOUNTING FACILITY DIAMETER | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 4310-00-167-8995
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 041160 | CYLINDERS(AIR/GAS/LIQUID) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4310-00-167-8995
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 AY : Assembly |
