Product Details | ROTARY VACUUM PUMP UNIT
4310-00-186-0710 An assembled unit consisting of a commonly mounted rotary vacuum pump(s), prime mover(s), and the necessary components to provide for a complete operation. It may include vacuum storage tank(s).
Part Alternates: 22510, 225-1-0, 225601, 225-601, 71010006001, 4310-00-186-0710, 00-186-0710, 4310001860710, 001860710
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 22 MAR 1971 | 00-186-0710 | 29904 ( VACUUM PUMP UNIT, ROTARY ) |

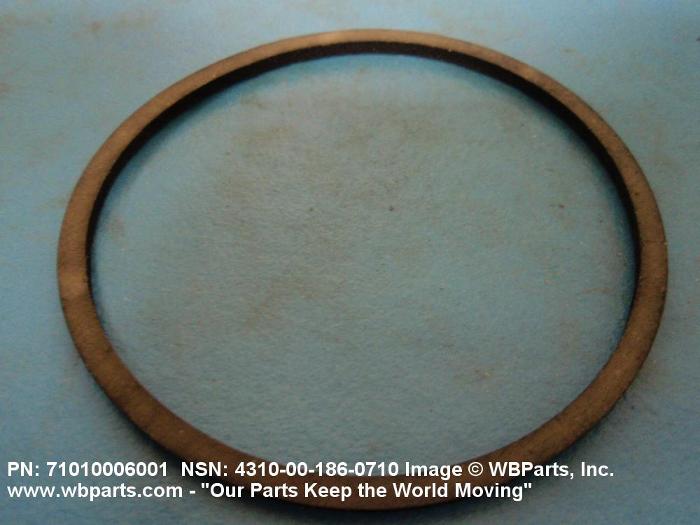

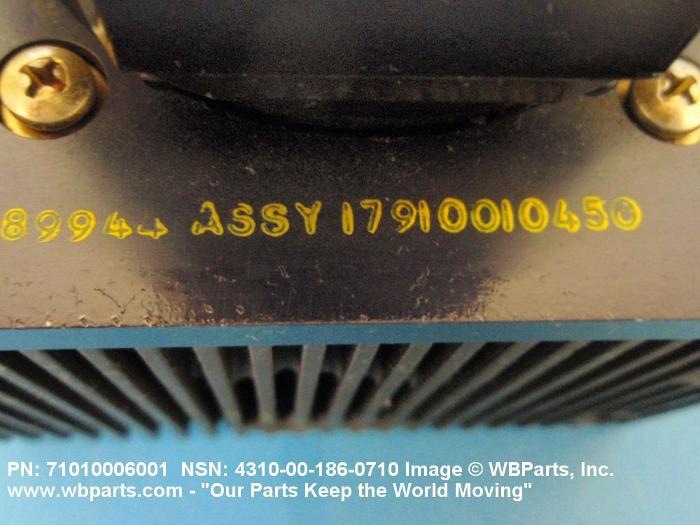

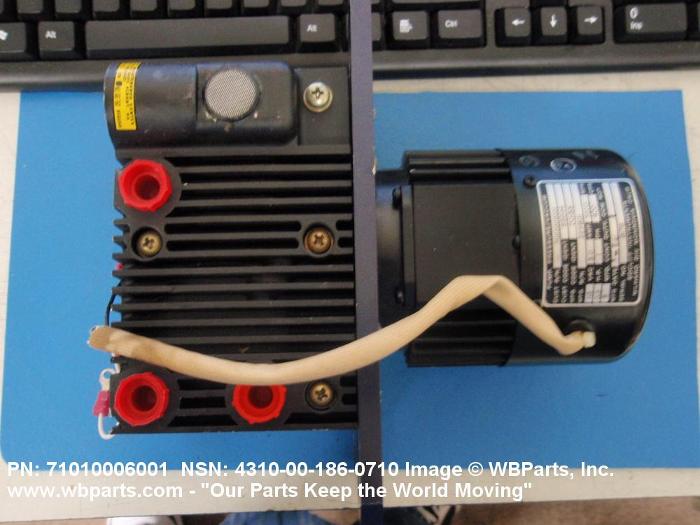

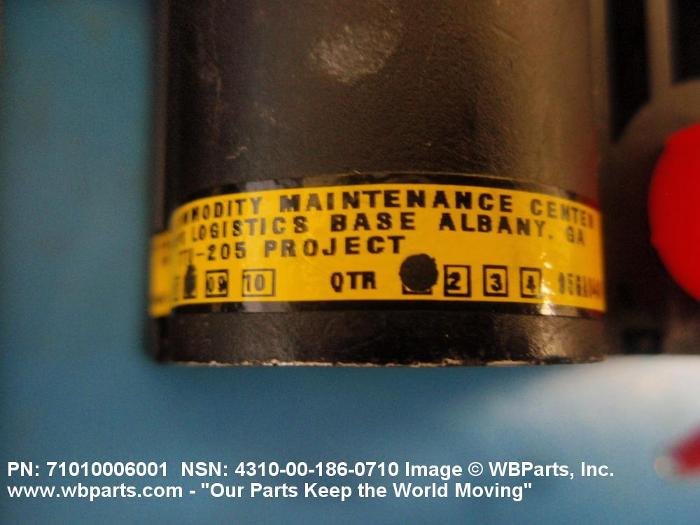

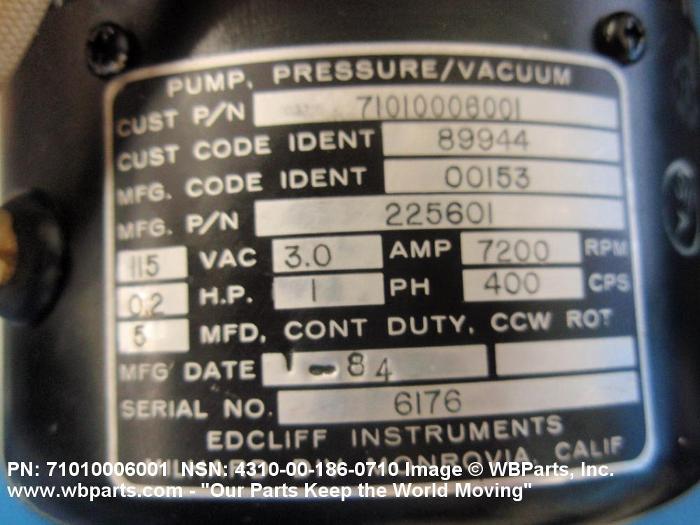

Drawings & Photos | NSN 4310-00-186-0710
Demand History | NSN 4310-00-186-0710
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4310-00-186-0710 | 2020-04-08 | 1 | US |
| 4310-00-186-0710 | 2018-07-05 | 1 | Greece |
| 71010006001 | 2018-03-07 | 1 | US |
| 4310-00-186-0710 | 2013-10-18 | 1 | US |
| 71010006001 | 2011-05-31 | 2 | Denmark |
| 71010006001 | 2011-03-21 | 1 | Denmark |
| 4310-00-186-0710 | 2008-10-10 | 5 | US |
| 71010006001 | 2007-12-27 | 1 | Seychelles |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4310-00-186-0710
Related Products | NSN 4310-00-186-0710
4310-00-186-2869, 4310-00-186-3488, 4310-00-188-4449, 4310-00-190-0976, 4310-00-190-0983
Technical Data | NSN 4310-00-186-0710
| Characteristic | Specifications |
|---|---|
| PUMP QUANTITY | 1 |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| PUMP BODY MATERIAL | ALUMINUM ALLOY, QQ-A-250/4, ALLOY 2024 |
| BODY SURFACE TREATMENT | ANODIZED, MIL-A-8625, TYPE 1, CLASS 2 |
| VACUUM RATING | 0.2 MILLITORR |
| SYSTEM DESIGN | NONCORROSIVE |
| SPECIFIC GAS FOR WHICH DESIGNED | AIR |
| PUMPING ELEMENT TYPE | ROTARY PISTON |
| STAGE QUANTITY | 1 |
| COOLING MEDIUM | AIR |
| INTAKE CONNECTION QUANTITY | 2 |
| INTAKE CONNECTION TYPE | THREADED INTERNAL |
| INTAKE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1/4-18 ANPT |
| DISCHARGE CONNECTION QUANTITY | 1 |
| DISCHARGE CONNECTION TYPE | THREADED INTERNAL |
| DISCHARGE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1/4-18 ANPT |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 115.0 |
| FREQUENCY IN HERTZ | 400.0 |
| PHASE | SINGLE |
| CURRENT RATING IN AMPS | 2.5 |
| BRAKE HORSEPOWER REQUIRED | 0.200 |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 7200.0 |
| AIR DISPLACEMENT RATE | 1200SCIM |
| MOUNTING TYPE | ANY ACCEPTABLE |
| DRIVE CONNECTION TYPE | CLOSE COUPLED |
| OVERALL HEIGHT | 8.250 INCHES NOMINAL |
| OVERALL LENGTH | 8.125 INCHES NOMINAL |
| OVERALL WIDTH | 5.516 INCHES NOMINAL |
| FEATURES PROVIDED | FUNGUS RESISTANT TREATMENT |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS MODIFIED BY SOURCE CONTROLLED DRAWING NUMBER 71010006001 |
| MANUFACTURERS CODE | 89944 |
| MFR SOURCE CONTROLLING REFERENCE | 71010006001 |
| MANUFACTURERS CODE | 00153 |
| DESIGN CONTROL REFERENCE | 225-601 |
Restrictions/Controls & Freight Information | NSN 4310-00-186-0710
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4310-00-186-0710
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | JX | TG:AIRCRAFT MAINTENANCE EQUIPMENT |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | AZ | SPECIAL PROJECTS (AIMS) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
