NSN 4310-00-273-9986 E1280PC41, E1286PC41, E2363PC28
Product Details | PISTON PIN
4310-00-273-9986 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: E1280PC41, E1286PC41, E2363PC28, E2369PC5, E2385PC41, E2391PC4, UH1282, 1175PC41, 1179PC41, 4310-00-273-9986, 00-273-9986, 4310002739986, 002739986
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-273-9986 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 4310-00-273-9986
Cross Reference | NSN 4310-00-273-9986
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1175PC41 | 12736 | CLAYTON MANUFACTURING COMPANY DBA CLAYTON INDUSTRIES |
| 1179PC41 | 12736 | CLAYTON MANUFACTURING COMPANY DBA CLAYTON INDUSTRIES |
| E1280PC41 | 12736 | CLAYTON MANUFACTURING COMPANY DBA CLAYTON INDUSTRIES |
| E1286PC41 | 12736 | CLAYTON MANUFACTURING COMPANY DBA CLAYTON INDUSTRIES |
| E2363PC28 | 12736 | CLAYTON MANUFACTURING COMPANY DBA CLAYTON INDUSTRIES |
| E2369PC5 | 12736 | CLAYTON MANUFACTURING COMPANY DBA CLAYTON INDUSTRIES |
| E2385PC41 | 12736 | CLAYTON MANUFACTURING COMPANY DBA CLAYTON INDUSTRIES |
| E2391PC4 | 12736 | CLAYTON MANUFACTURING COMPANY DBA CLAYTON INDUSTRIES |
| UH1282 | 12736 | CLAYTON MANUFACTURING COMPANY DBA CLAYTON INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4310-00-273-9986
Technical Data | NSN 4310-00-273-9986
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | CASEHARDENED |

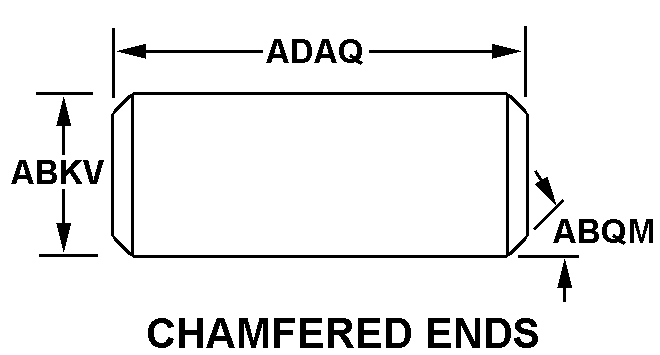

| BODY STYLE | 5B CHAMFERED ENDS |
| OUTSIDE DIAMETER | 0.99000 INCHES MINIMUM AND 1.00000 INCHES MAXIMUM |
| BODY LENGTH | 2.3120 INCHES NOMINAL |
| END CHAMFER ANGLE IN DEG | 45.0 |
| HOLE ARRANGEMENT STYLE | 5 ONE HOLE IN SOLID PIN |
| HOLE DIAMETER | 0.3800 INCHES NOMINAL |
| HOLE DEPTH | 0.1200 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 1.156 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4310-00-273-9986
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4310-00-273-9986
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
