NSN 4310-00-277-3455 HL4042PC88, HL4043PC88, HL4047PC88
Product Details | PISTON PIN
4310-00-277-3455 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: HL4042PC88, HL4043PC88, HL4047PC88, HL4056PC88, HL4057PC88, HL4781PC47, HL4782PC47, HL4784PC47, HL4798PC47, HL4799PC47, HL5811PC47, HL5812PC47, HL5814PC47, HL5829PC47, HL5830PC47, HL6016PC90, HL6017PC90, HL6021PC90, HL6032PC90, HL6033PC90, PC88100, PC88-100, 110952PC88, 110953PC88, 110957PC88, 110967PC88, 244N, 589N, 4310-00-277-3455, 00-277-3455, 4310002773455, 002773455
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1961 | 00-277-3455 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 4310-00-277-3455
Cross Reference | NSN 4310-00-277-3455
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 110952PC88 | 0AT62 | DRESSER-RAND COMPANY DBA RECIPROCATING PRODUCTS DIV |
| 110952PC88 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 110952PC88 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| 110953PC88 | 0AT62 | DRESSER-RAND COMPANY DBA RECIPROCATING PRODUCTS DIV |
| 110953PC88 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 110953PC88 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| 110957PC88 | 0AT62 | DRESSER-RAND COMPANY DBA RECIPROCATING PRODUCTS DIV |
| 110957PC88 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 110957PC88 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| 110967PC88 | 0AT62 | DRESSER-RAND COMPANY DBA RECIPROCATING PRODUCTS DIV |
| 110967PC88 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 110967PC88 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| 244N | 0AT62 | DRESSER-RAND COMPANY DBA RECIPROCATING PRODUCTS DIV |
| 244N | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| 589N | 0AT62 | DRESSER-RAND COMPANY DBA RECIPROCATING PRODUCTS DIV |
| 589N | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL4042PC88 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL4043PC88 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL4047PC88 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL4056PC88 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL4057PC88 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL4781PC47 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL4782PC47 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL4784PC47 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL4798PC47 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL4799PC47 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL5811PC47 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL5812PC47 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL5814PC47 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL5829PC47 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL5830PC47 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL6016PC90 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL6017PC90 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL6021PC90 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL6032PC90 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL6033PC90 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| PC88-100 | 0AT62 | DRESSER-RAND COMPANY DBA RECIPROCATING PRODUCTS DIV |
| PC88-100 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| PC88-100 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4310-00-277-3455
Technical Data | NSN 4310-00-277-3455
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, MIL-S-890, CLASS AC |
| METALLIC HARDNESS RATING | 45.0 MINIMUM ROCKWELL C AND 55.0 MAXIMUM ROCKWELL C |
| CASEHARDENING INDICATOR | CASEHARDENED |

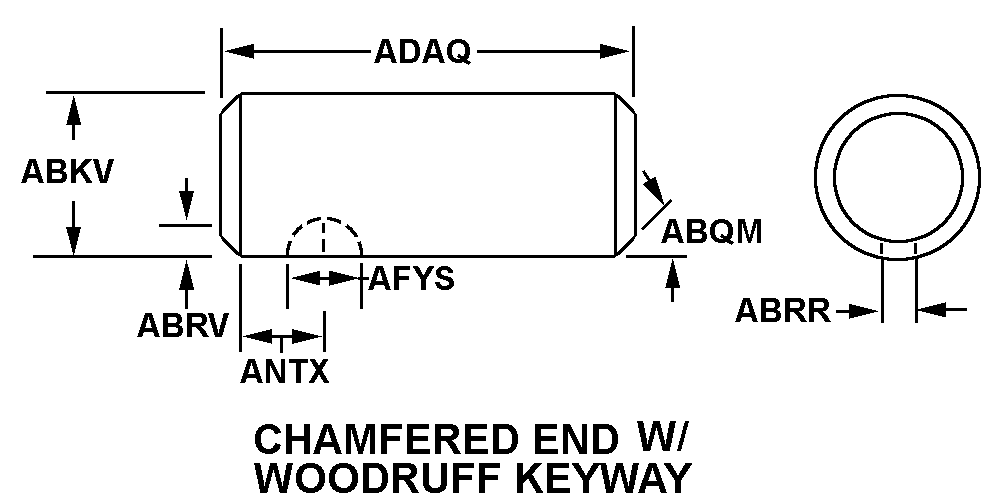

| BODY STYLE | 6C CHAMFERED END W/WOODRUFF KEYWAY |
| OUTSIDE DIAMETER | 1.43720 INCHES MINIMUM AND 1.43740 INCHES MAXIMUM |
| KEYWAY WIDTH | 0.187 INCHES NOMINAL |
| KEYWAY DEPTH | 0.218 INCHES NOMINAL |
| BODY LENGTH | 4.3750 INCHES NOMINAL |
| KEYWAY LENGTH | ANY ACCEPTABLE |
| DISTANCE FROM END TO KEYWAY CENTER | 0.563 INCHES NOMINAL |
| END CHAMFER ANGLE IN DEG | 45.0 |
| BORE STYLE | 7 STRAIGHT-THRU BORE |
| BORE DIAMETER | 0.7500 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE HOLE THRU ONE SIDE OF BORE |
| HOLE DIAMETER | 0.3125 INCHES NOMINAL |
| HOLE DEPTH | 0.3437 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.562 INCHES NOMINAL |
| III FSC APPLICATION DATA | AIR COMPRESSOR |
Restrictions/Controls & Freight Information | NSN 4310-00-277-3455
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4310-00-277-3455
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
