NSN 4310-00-580-4532 AP28417, 28417, 00-580-4532
Product Details | PISTON PIN
4310-00-580-4532 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: AP28417, 28417, 4310-00-580-4532, 00-580-4532, 4310005804532, 005804532
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-580-4532 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 4310-00-580-4532
Cross Reference | NSN 4310-00-580-4532
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4310-00-580-4532
Technical Data | NSN 4310-00-580-4532
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, FED STD 66, AISI/SAE 1020 |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | CASEHARDENED |

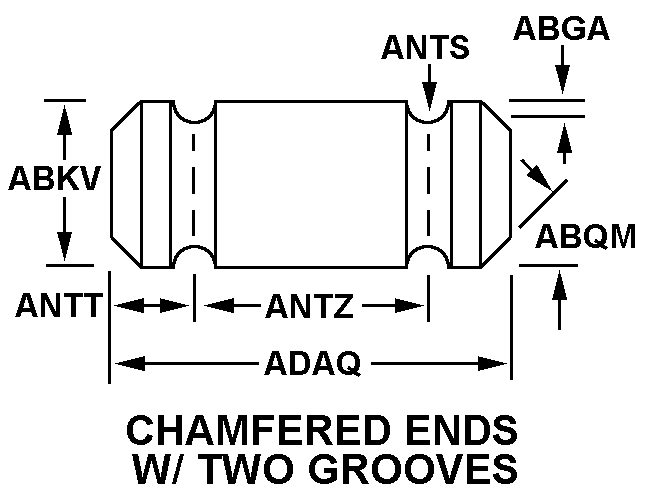

| BODY STYLE | 10A CHAMFERED ENDS W/TWO GROOVES |
| GROOVE DEPTH | ANY ACCEPTABLE |
| OUTSIDE DIAMETER | 0.78740 INCHES MINIMUM AND 0.78760 INCHES MAXIMUM |
| BODY LENGTH | 2.4900 INCHES MINIMUM AND 2.5000 INCHES MAXIMUM |
| RADIAL GROOVE RADIUS | 0.005 INCHES NOMINAL |
| DISTANCE FROM END TO GROOVE CENTER | 0.0670 INCHES MINIMUM AND 0.0770 INCHES MAXIMUM |
| DISTANCE BETWEEN GROOVE CENTERS | 2.3460 INCHES MINIMUM AND 2.3560 INCHES MAXIMUM |
| END CHAMFER ANGLE IN DEG | 45.0 |
| BORE STYLE | 7 STRAIGHT-THRU BORE |
| BORE DIAMETER | 0.4375 INCHES NOMINAL |
| III FSC APPLICATION DATA | AIR COMPRESSOR |
| MANUFACTURERS CODE | 16004 |
| DESIGN CONTROL REFERENCE | 28417 |
