NSN 4310-00-608-5984 ASW147111, 147111, 00-608-5984
Product Details | PISTON PIN
4310-00-608-5984 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: ASW147111, 147111, 4310-00-608-5984, 00-608-5984, 4310006085984, 006085984
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 00-608-5984 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 4310-00-608-5984
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4310-00-608-5984
Technical Data | NSN 4310-00-608-5984
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL SPEC 7341 OR SPEC 6263HT31 66640 |
| METALLIC HARDNESS RATING | 75.0 MINIMUM ROCKWELL SUPERFICIAL 30-N AND 78.0 MAXIMUM ROCKWELL SUPERFICIAL 30-N |
| CASEHARDENING INDICATOR | CASEHARDENED |

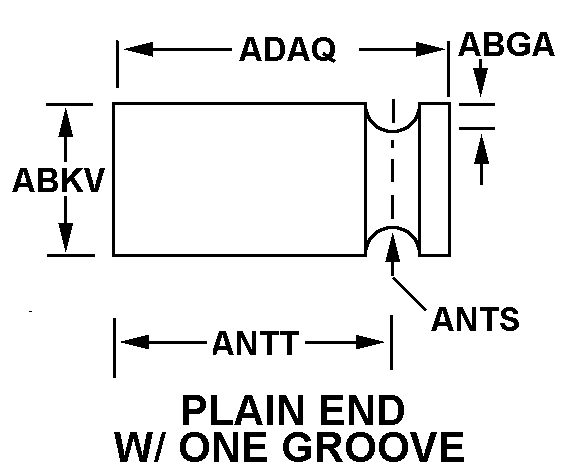

| BODY STYLE | 12A PLAIN END W/ONE GROOVE |
| GROOVE DEPTH | 0.2983 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.49800 INCHES MINIMUM AND 1.49850 INCHES MAXIMUM |
| BODY LENGTH | 4.8210 INCHES MINIMUM AND 4.8250 INCHES MAXIMUM |
| RADIAL GROOVE RADIUS | 1.120 INCHES MINIMUM AND 1.130 INCHES MAXIMUM |
| DISTANCE FROM END TO GROOVE CENTER | 4.7760 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4310-00-608-5984
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
