NSN 4310-00-793-5050 10882682, 00-793-5050, 007935050
Product Details | PISTON PIN
4310-00-793-5050 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: 10882682, 4310-00-793-5050, 00-793-5050, 4310007935050, 007935050
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1962 | 00-793-5050 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 4310-00-793-5050
Cross Reference | NSN 4310-00-793-5050
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10882682 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4310-00-793-5050
Technical Data | NSN 4310-00-793-5050
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CARBON |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

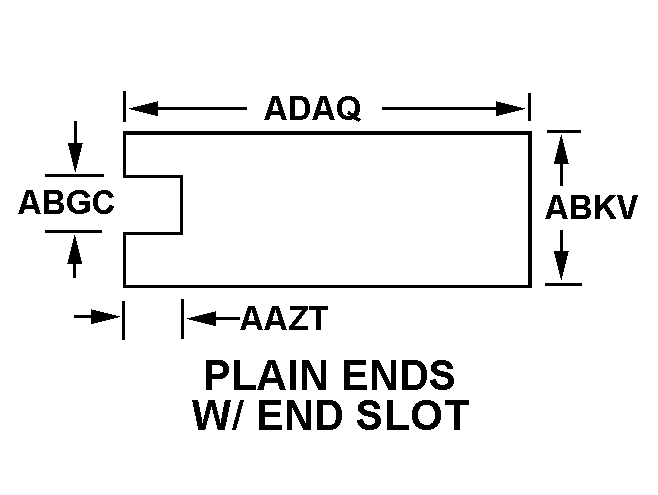

| BODY STYLE | 17 PLAIN ENDS W/END SLOT |
| SLOT DEPTH | 2.5000 INCHES NOMINAL |
| SLOT WIDTH | 0.680 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.25000 INCHES NOMINAL |
| BODY LENGTH | 3.0000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4310-00-793-5050
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
