NSN 4310-00-974-8218 576994, 00-974-8218, 009748218
Product Details | PISTON RING
4310-00-974-8218 A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL.20628050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components30400042Miscellaneous Power Transmission Equipment43100028Compressors and Vacuum Pumps
Part Alternates: 576994, 4310-00-974-8218, 00-974-8218, 4310009748218, 009748218
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1962 | 00-974-8218 | 11459 ( RING, PISTON ) |
Drawings & Photos | NSN 4310-00-974-8218
Cross Reference | NSN 4310-00-974-8218
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 576994 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4310-00-974-8218
Technical Data | NSN 4310-00-974-8218
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | A1 PLAIN RECTANGULAR, STRAIGHT FACE |
| JOINT STYLE | 3 STEP JOINT |
| RING STYLE | 1 CONCENTRIC |
| RADIAL WALL THICKNESS | 0.1120 INCHES MINIMUM AND 0.1220 INCHES MAXIMUM |
| OVERALL WIDTH | 0.1230 INCHES MINIMUM AND 0.1240 INCHES MAXIMUM |

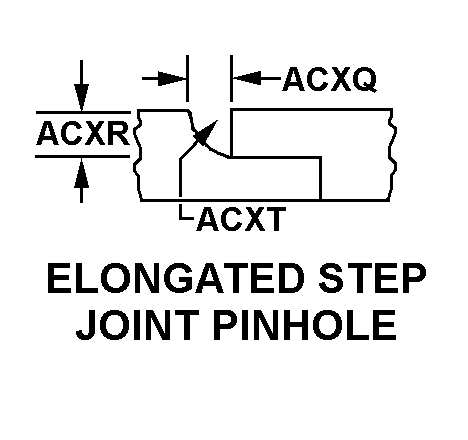

| PIN HOLE STYLE | 7 ELONGATED STEP JOINT PINHOLE |
| PIN HOLE SLOT LENGTH | 0.003 INCHES MINIMUM AND 0.013 INCHES MAXIMUM |
| RING WIDTH PIN HOLE DEPTH | 0.016 INCHES NOMINAL |
| PIN HOLE CORNER RADIUS | 0.016 INCHES NOMINAL |
| STANDARD BORE DIAMETER | 2.625 INCHES |
| III FSC APPLICATION DATA | DOME,PROPELLER,AIRCRAFT |
| MANUFACTURERS CODE | 73030 |
| DESIGN CONTROL REFERENCE | 576994 |
Restrictions/Controls & Freight Information | NSN 4310-00-974-8218
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
