NSN 4310-01-004-5173 H32699, H32699A, 01-004-5173
Product Details | CYLINDER SLEEVE
4310-01-004-5173 A tubular metal item designed primarily as a replaceable wear surface within the cylinder bore of a piston type internal combustion engine, compressor, or reciprocating pump.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps
Part Alternates: H32699, H32699A, 4310-01-004-5173, 01-004-5173, 4310010045173, 010045173
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 10 JUN 1975 | 01-004-5173 | 16756 ( CYLINDER SLEEVE ) |

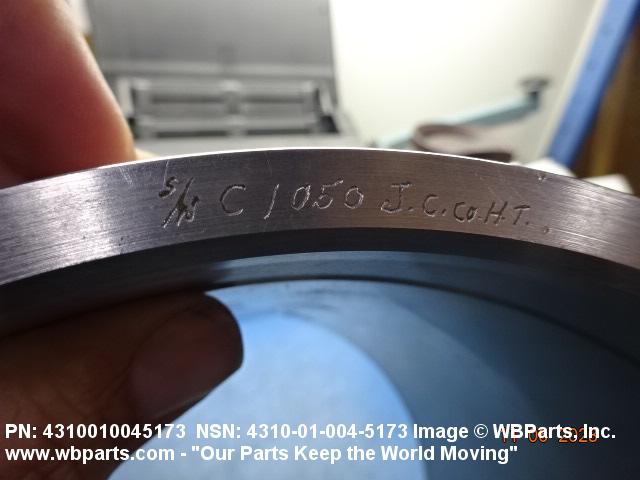

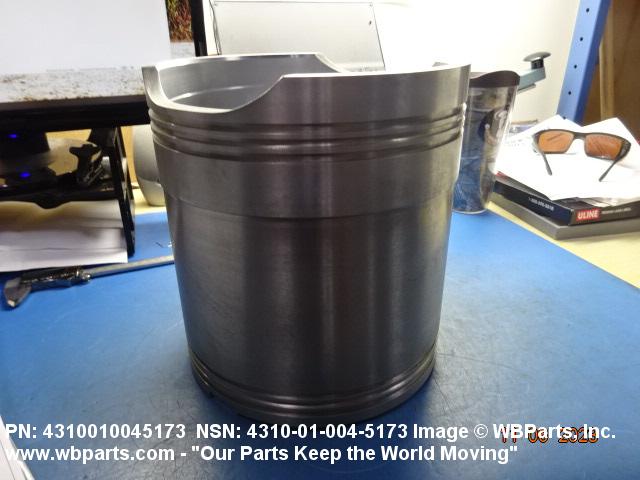

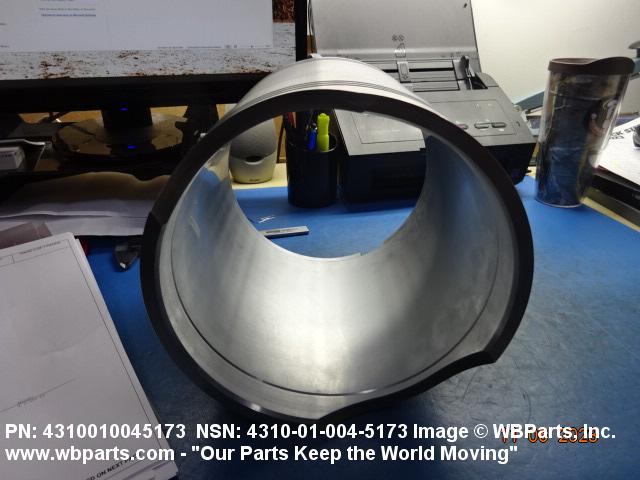

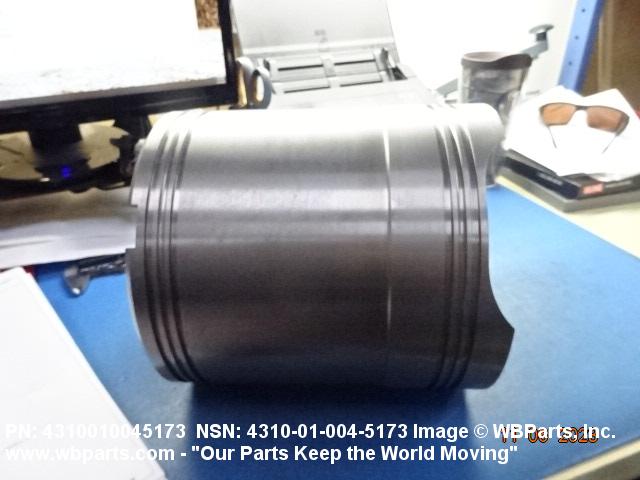

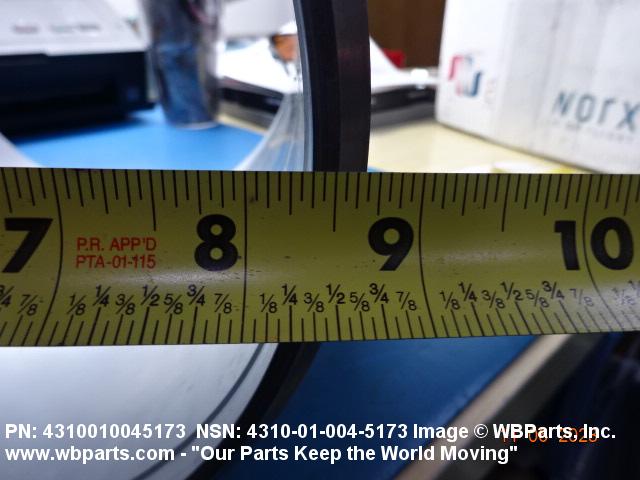

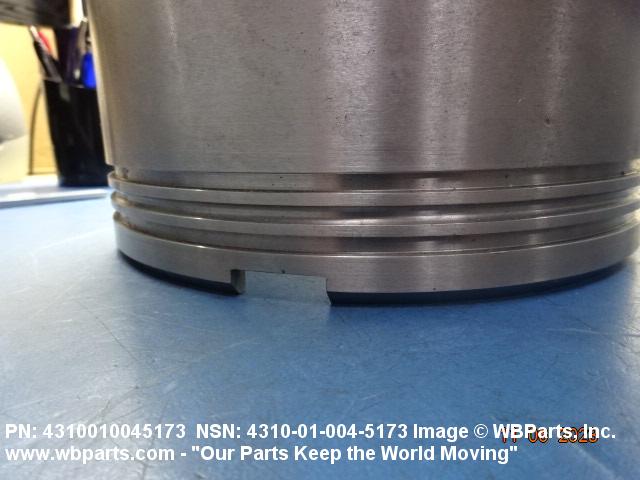

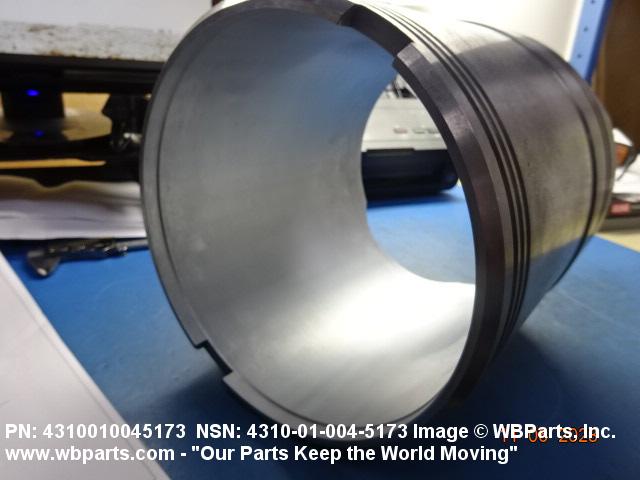

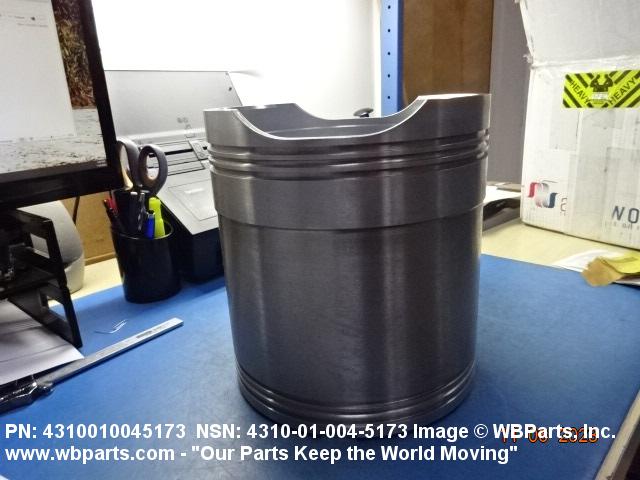

Drawings & Photos | NSN 4310-01-004-5173
Demand History | NSN 4310-01-004-5173
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4310-01-004-5173 | 2023-10-299 | 1 | us |
| H32699 | 2023-09-261 | 1 | DIBBS |
| H32699A | 2023-09-261 | 1 | DIBBS |
| H32699 | 2023-03-73 | 4 | DIBBS |
| H32699A | 2023-03-73 | 4 | DIBBS |
| 4310-01-004-5173 | 2018-02-38 | 2 | India |
| 4310-01-004-5173 | 2017-02-47 | 2 | DIBBS |
| 4310-01-004-5173 | 2017-02-36 | 2 | DIBBS |
Cross Reference | NSN 4310-01-004-5173
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4310-01-004-5173
Technical Data | NSN 4310-01-004-5173
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| METALLIC HARDNESS RATING | NOT RATED |
| DESIGN TYPE | DRY |
| STYLE DESIGNATOR | A1 WET, RELIEVED, THREE SEAL GROOVES |
| GROOVE WIDTH | 0.180 INCHES NOMINAL |
| OVERALL LENGTH | 9.500 INCHES NOMINAL |
| FLANGE THICKNESS | 0.120 INCHES NOMINAL |
| BORE DIAMETER | 8.000 INCHES NOMINAL |
| BODY LENGTH | 5.125 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 8.500 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 8.870 INCHES NOMINAL |
| LARGEST OUTSIDE DIAMETER UNDER FLANGE | 8.865 INCHES NOMINAL |
| LARGEST OUTSIDE DIAMETER WIDTH UNDER FLANGE | 1.250 INCHES NOMINAL |
| GROOVED PORTION OUTSIDE DIAMETER | 8.700 INCHES NOMINAL |
| GROOVED PORTION WIDTH | 1.375 INCHES NOMINAL |
| GROOVE RADIUS DEPTH | 0.094 INCHES NOMINAL |
| VALVE RECESS | NOT INCLUDED |
| TOP INSIDE CHAMFER | NOT INCLUDED |
| BOTTOM INSIDE CHAMFER | NOT INCLUDED |
| TOP INTAKE PORT | NOT INCLUDED |
| INTAKE HOLE | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 4310-01-004-5173
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114730 | BARRELS/LINERS/SLEEVES I/C ENGINE |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4310-01-004-5173
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
