Product Details | RECIPROCATING COMPRESSOR UNIT
4310-01-198-9365 An assembled unit consisting of a commonly mounted reciprocating compressor(s) and a prime mover(s). For items with additional equipment which extends the function of the unit beyond the delivery of compressed air or gas, see PNEUMATIC TOOL AND COMPRESSOR OUTFIT, or more specific names, as applicable. Excludes AUXILIARY SET, ENGINE DRIVEN.
Part Alternates: 10HT8G, E71, 4310-01-198-9365, 01-198-9365, 4310011989365, 011989365
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 16 JAN 1985 | 01-198-9365 | 29301 ( COMPRESSOR UNIT, RECIPROCATING ) |
Drawings & Photos | NSN 4310-01-198-9365
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4310-01-198-9365
Related Products | NSN 4310-01-198-9365
4310-01-198-9472, 4310-01-198-9498, 4310-01-198-9564, 4310-01-198-9587, 4310-01-198-9591
Technical Data | NSN 4310-01-198-9365
| Characteristic | Specifications |
|---|---|
| COMPRESSOR QUANTITY | 1 |
| DUTY CYCLE IN PERCENT | 100 |
| GAS FOR WHICH DESIGNED | AIR |
| DISCHARGE FLOW RATE | 25.000 CUBIC FEET PER MINUTE |
| DISCHARGE PRESSURE | 175.000 POUNDS PER SQUARE INCH GAGE |
| COMPRESSOR SPEED AT RATED CAPACITY IN RPM | 925.0 |
| COOLING SYSTEM DESIGN | SINGLE |
| COMPRESSED GAS COOLING MEDIUM | AIR |
| GAS COOLING EQUIPMENT TYPE | AIR TYPE INTERCOOLER |
| COMPRESSOR COOLING MEDIUM | AIR |
| PRIME MOVER COOLING MEDIUM | AIR |
| UNLOADER TYPE | AUTOMATIC |
| MOUNTING TYPE | HORIZONTAL TANK |
| RECIPROCATING COMPRESSOR DESIGN | SINGLE ACTING |
| CYLINDER QUANTITY | 3 |

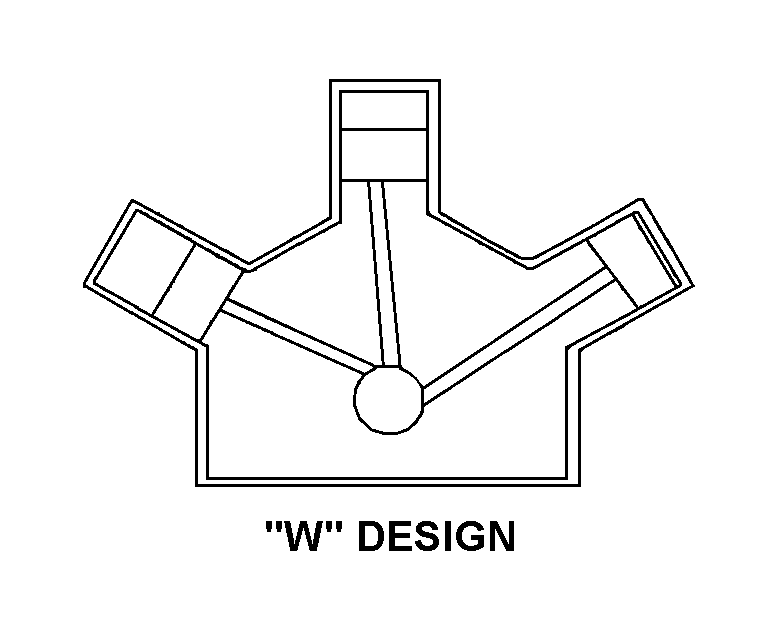

| CYLINDER ARRANGEMENT STYLE | 4 W DESIGN |
| STAGE QUANTITY | 2 |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 230.0 AC |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | THREE |
| CURRENT TYPE AND RATING IN AMPS | 28.0 AC |
| RECEIVER TANK CAPACITY | 10.70 CUBIC FEET |
| INTAKE CONNECTION QUANTITY | 1 |
| SAFETY DEVICE TYPE | RELIEF VALVE |
| CONTROL DEVICE TYPE | AUTOMATIC START-STOP |
| SILENCER TYPE | INLET |
| TEMP RATING PER FUNCTION | NOT RATED |
| FEATURES PROVIDED | FUNGUS RESISTANT TREATMENT |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 1 CLASS AND 25CFM AT 175PSI SIZE |
| MANUFACTURERS CODE | 55921 |
| DESIGN CONTROL REFERENCE | E71 |
Restrictions/Controls & Freight Information | NSN 4310-01-198-9365
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 118100 | COMPRESSORS, AIR, NOI, OR AIR ENDS |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4310-01-198-9365
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | M | Ammunition weapons, and tracked combat vehicles weapons, special weapons, chemical and fire control materiel |
| Appropriation and Budget Activity | Q | Other Support Equipment |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | L | Other Weapons Categories |
| Weapons Systems/End Item or Homogeneous Group | L5 | Other Managed Component of Tool Set |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | B14 | US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
