NSN 4320-00-048-3874 6702090, 00-048-3874, 000483874
Product Details | ROTARY PUMP
4320-00-048-3874 A positive displacement device which utilzes the rotating motion of one or more gears, cams, vanes, or screws in an enclosure as a means of transferring a liquid from one place to another. It is designed to be driven manually or by a prime mover which is not an integral part of the pump. Excludes aircraft engine pumps.
Part Alternates: 6702090, 4320-00-048-3874, 00-048-3874, 4320000483874, 000483874
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-048-3874 | 30410 ( PUMP, ROTARY ) |

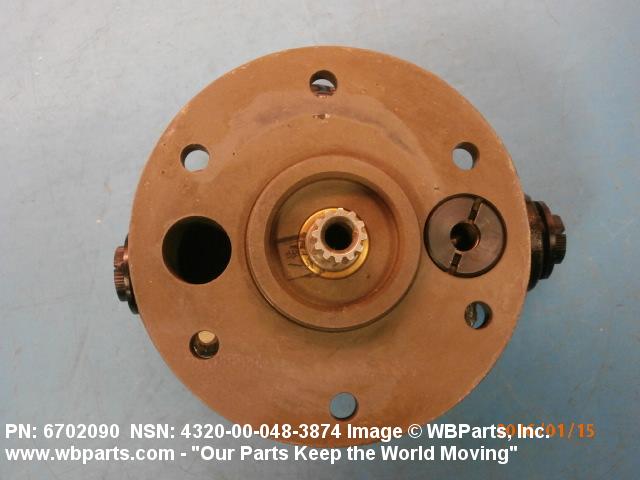

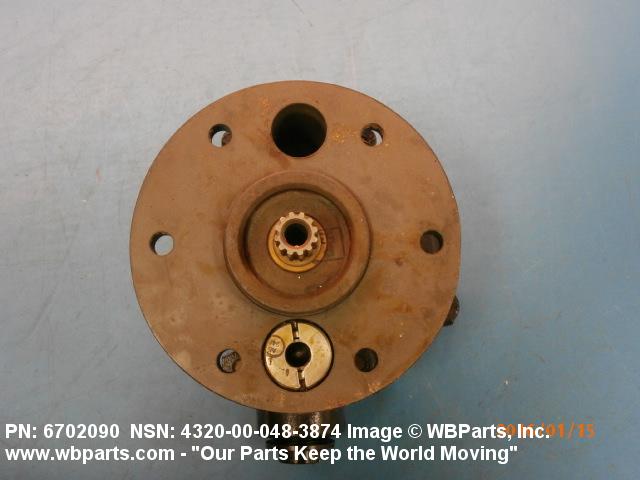

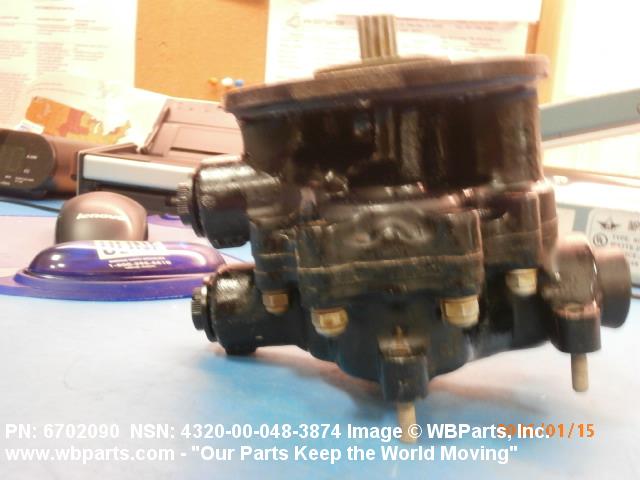

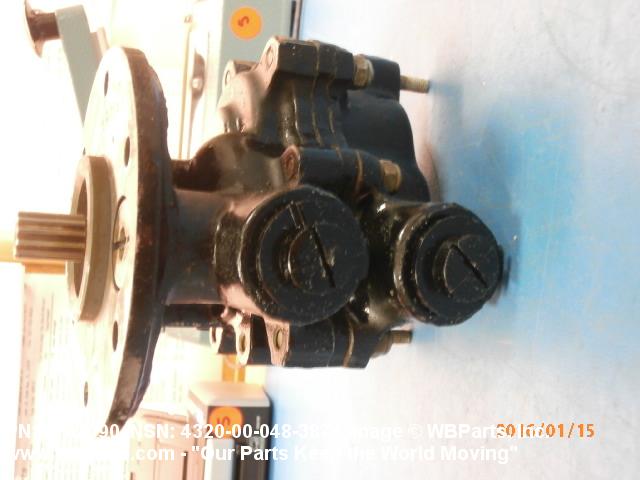

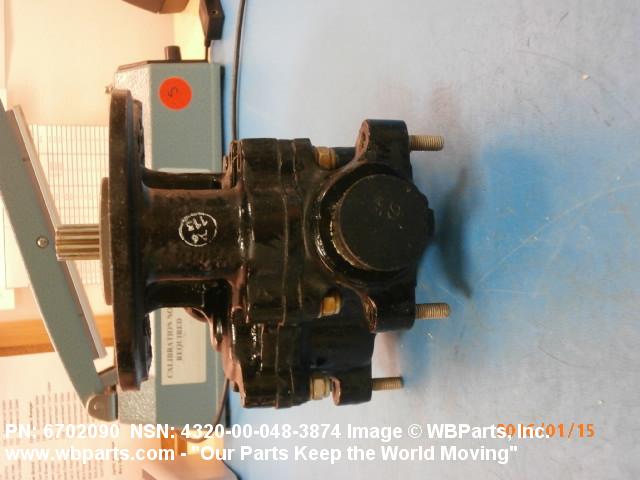

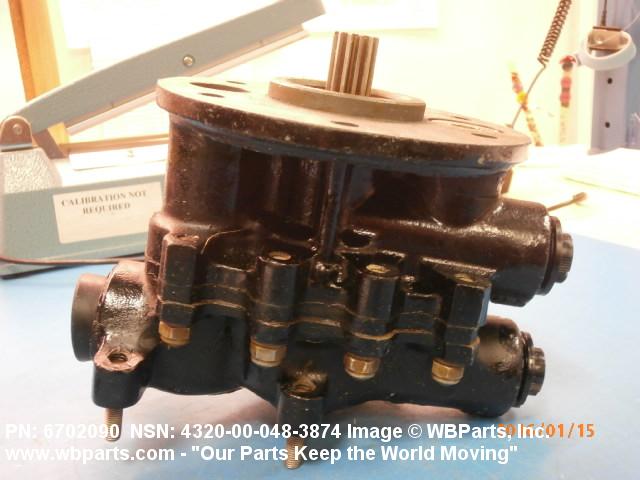

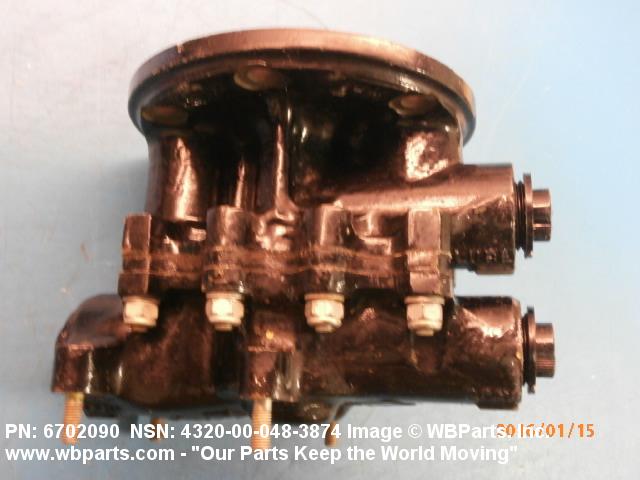

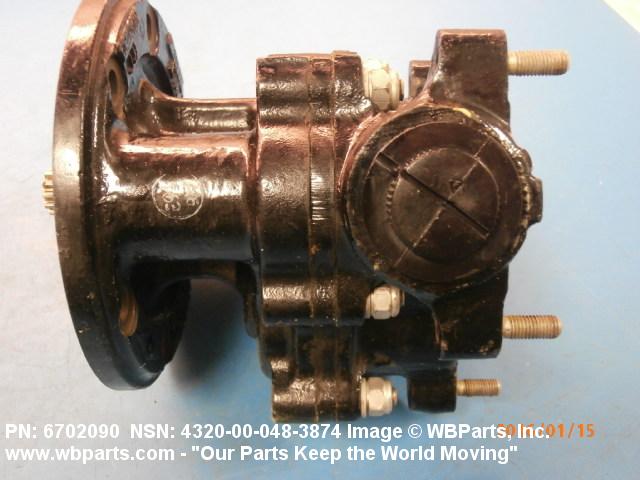

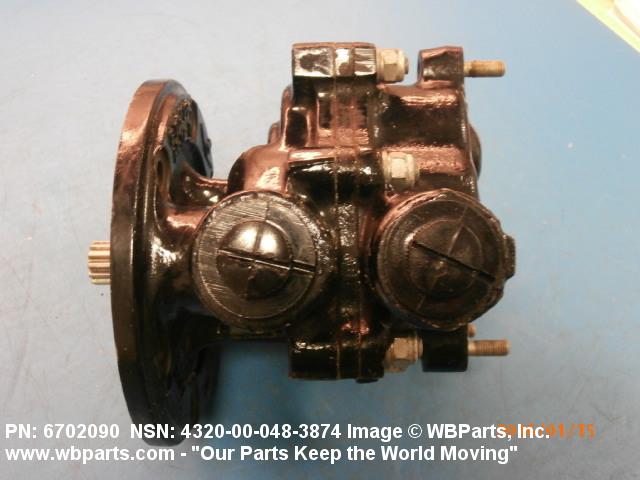

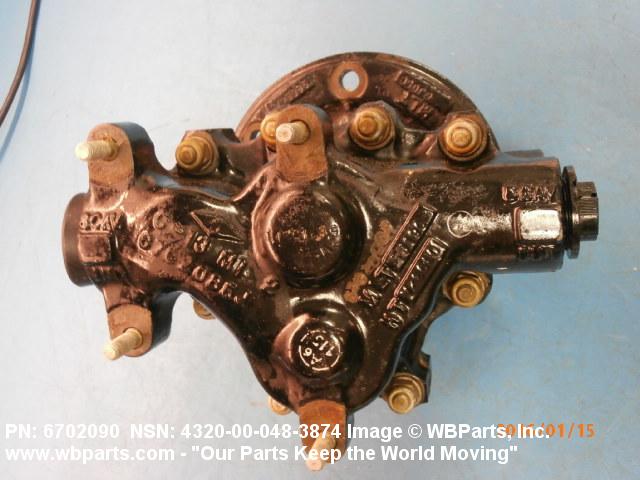

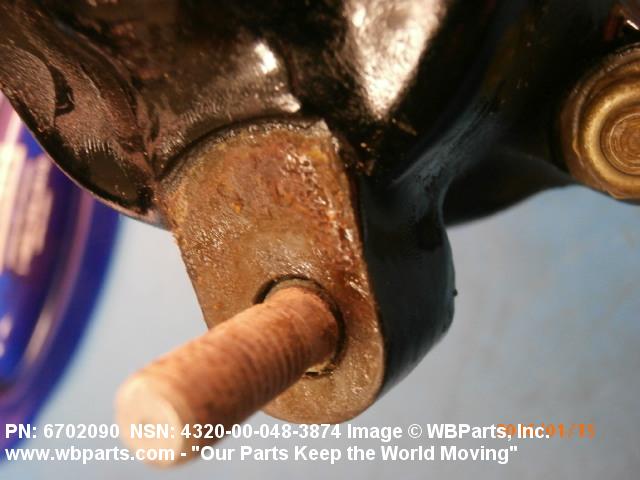

Drawings & Photos | NSN 4320-00-048-3874
Demand History | NSN 4320-00-048-3874
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6702090 | 2016-01-06 | 2 | United States |
| 6702090 | 2015-12-364 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-00-048-3874
Technical Data | NSN 4320-00-048-3874
| Characteristic | Specifications |
|---|---|
| DISCHARGE PRESSURE | 40.0 POUNDS PER SQUARE INCH GAGE |
| OPERATING SPEED AT RATED CAPACITY | 2450.0 REVOLUTIONS PER MINUTE |
| MEDIA FOR WHICH DESIGNED | OIL |
| ROTARY PUMP DESIGN | GEAR |
| OPERATION METHOD | POWERED |
| MOUNTING TYPE | BASE |
| (NON-CORE DATA) INTEGRAL RELIEF VALVE | INCLUDED |
| MANUFACTURERS CODE | 24617 |
| DESIGN CONTROL REFERENCE | 6702090 |
Restrictions/Controls & Freight Information | NSN 4320-00-048-3874
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-00-048-3874
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | AN | JET ENGINES(J33) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
