NSN 4320-00-195-0897 MFA01204B, MFA012-0-4B, 11662739
Product Details | HYDRAULIC MOTOR
4320-00-195-0897 A mechanical device designed to convert the energy of fluid pressure to rotary motion.20316500058Aircraft Hydraulic, Vacuum, and De-icing System Components25400035Vehicular Furniture and Accessories43200020Power and Hand Pumps
Part Alternates: MFA01204B, MFA012-0-4B, 11662739, 4320-00-195-0897, 00-195-0897, 4320001950897, 001950897
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 10 JUN 1970 | 00-195-0897 | 06128 ( MOTOR, HYDRAULIC ) |

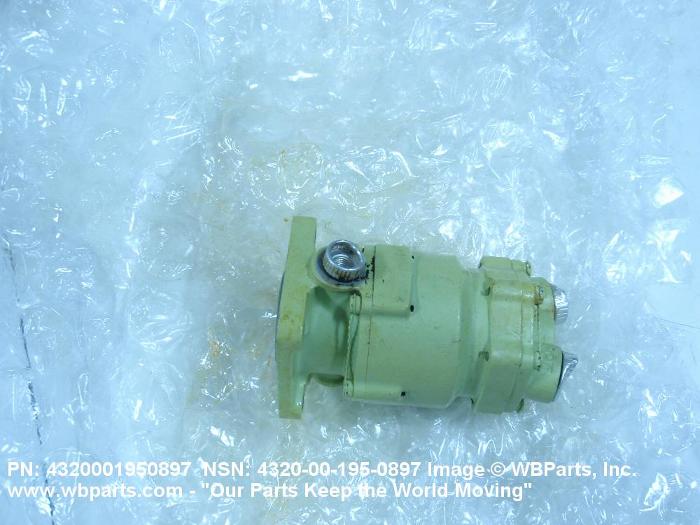

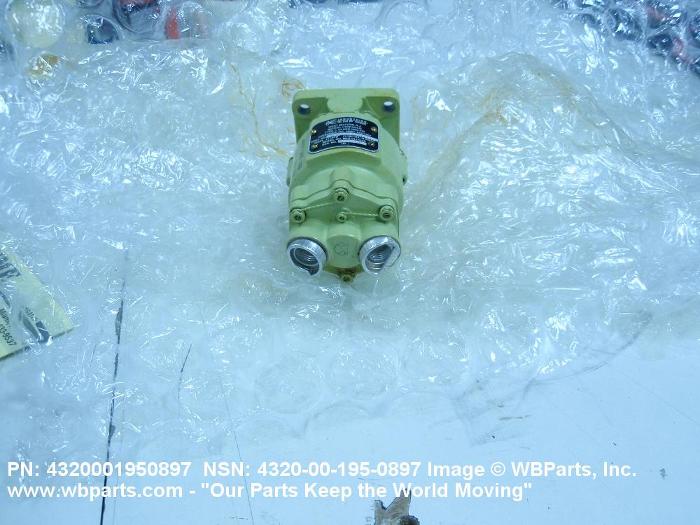

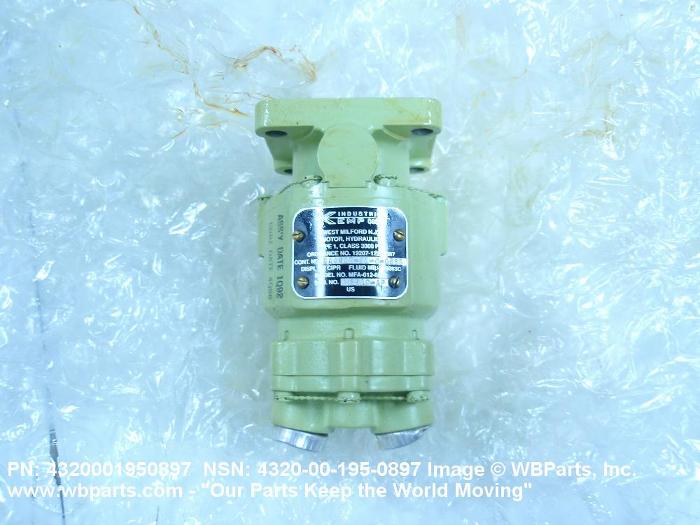

Drawings & Photos | NSN 4320-00-195-0897
Demand History | NSN 4320-00-195-0897
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MFA01204B | 2008-11-331 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-00-195-0897
Technical Data | NSN 4320-00-195-0897
| Characteristic | Specifications |
|---|---|
| DISPLACEMENT TYPE | VARIABLE |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 6960.0 |
| MAXIMUM WORKING PRESSURE RATING AT SPECIFIED TEMP RANGE | 3000PSI AT MINUS 65 DEG F TO PLUS 250 DEG F |
| TORQUE LOAD RATING | 57.3 INCH-POUNDS |
| CONSTANT DISPLACEMENT PER REVOLUTION | NOT RATED |
| CONNECTION TYPE | INLET OUTLET DRAIN |
| CONNECTION QUANTITY | 1 AND 1 AND 1 |
| CONNECTION GOVERNMENT SPEC/STD | MS33649-6 AND MS33649-3 |
| CONNECTION DESIGN | THREADED AND THREADED AND THREADED |
| THREAD SIZE | 0.563-18 AND 0.563-18 AND 0.375-24 |
| SCREW THREAD SERIES DESIGNATOR | UN |
| THREAD LOCATION | INTERNAL |
| THREAD DIRECTION | RIGHT-HAND |
| DRIVE SHAFT TYPE | SPLINED, INVOLUTE INTERNAL |
| SPLINE QUANTITY | 12 |
| SPLINE MAJOR DIAMETER | 0.406 INCHES MINIMUM AND 0.423 INCHES MAXIMUM |
| SPLINE MINOR DIAMETER | 0.351 INCHES MINIMUM AND 0.353 INCHES MAXIMUM |
| SPLINE PITCH | 32/64 |
| PITCH DIAMETER | 0.375 INCHES NOMINAL |
| SPLINE PRESSURE ANGLE IN DEG | 30.0 |
| SPLINE LENGTH | 0.880 INCHES NOMINAL |
| MOUNTING TYPE | PAD |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING BOLT HOLE SPACING | 1.876 IN. BY 1.876 IN. |
| MOUNTING HOLE DIAMETER | 0.276 INCHES MINIMUM AND 0.291 INCHES MAXIMUM |
| HOUSING MATERIAL | STEEL |
| HOUSING SURFACE TREATMENT | ENAMELED |
| III FSC APPLICATION DATA | MOUNT MACHINE GUN |
| MANUFACTURERS CODE | 19207 |
| MFR SOURCE CONTROLLING REFERENCE | 11662739 |
Restrictions/Controls & Freight Information | NSN 4320-00-195-0897
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
