NSN 4320-00-308-1479 2P739F, 8496879, 00-308-1479
Product Details | ROTARY PUMP
4320-00-308-1479 A positive displacement device which utilzes the rotating motion of one or more gears, cams, vanes, or screws in an enclosure as a means of transferring a liquid from one place to another. It is designed to be driven manually or by a prime mover which is not an integral part of the pump. Excludes aircraft engine pumps.
Part Alternates: 2P739F, 8496879, 4320-00-308-1479, 00-308-1479, 4320003081479, 003081479
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-308-1479 | 30410 ( PUMP, ROTARY ) |

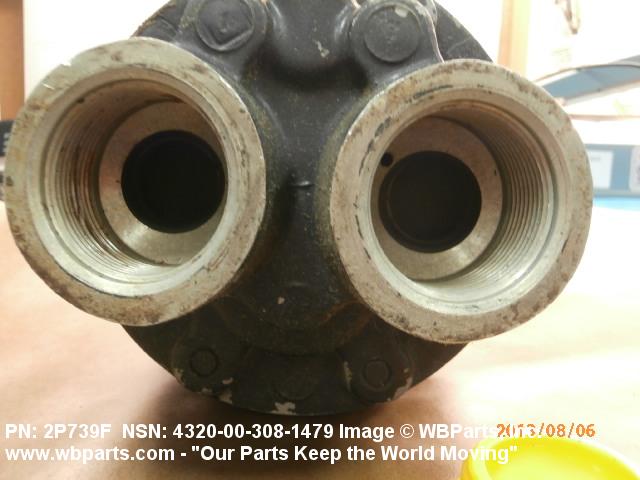

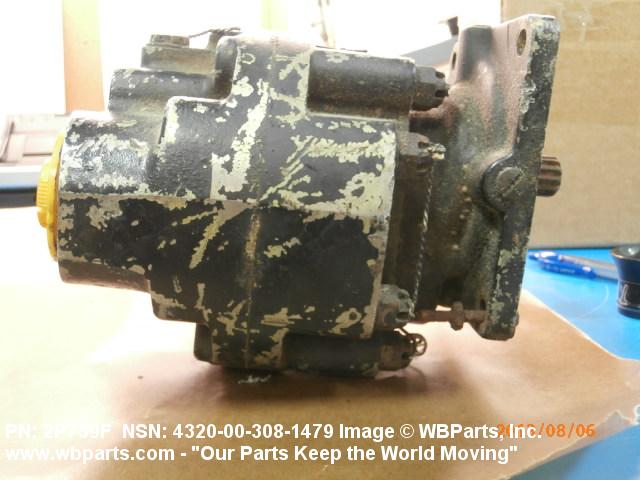

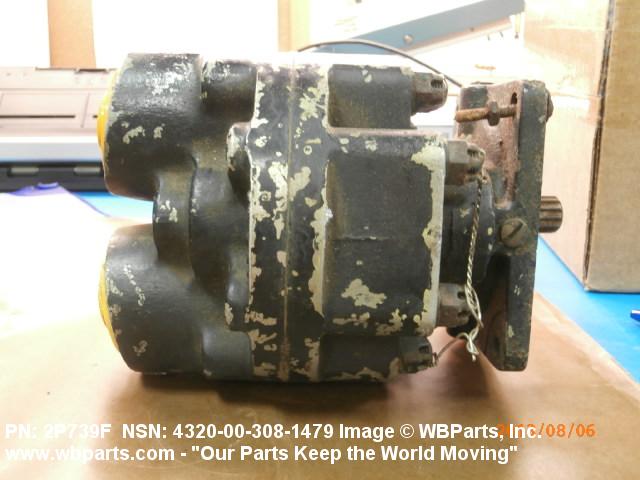

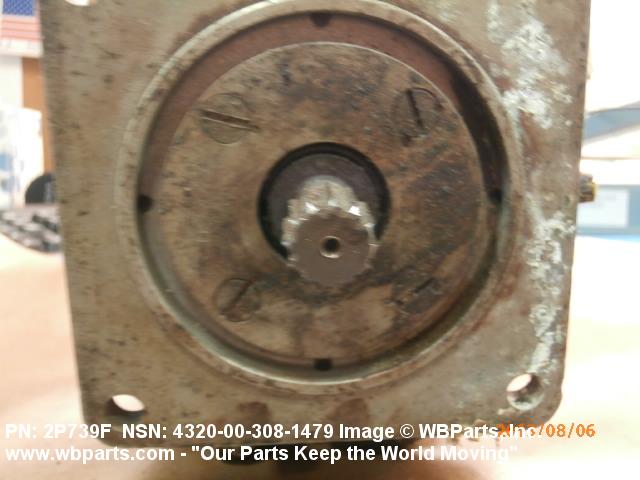

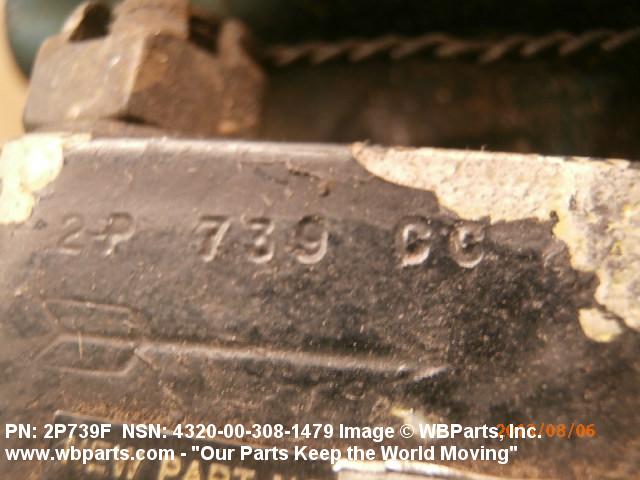

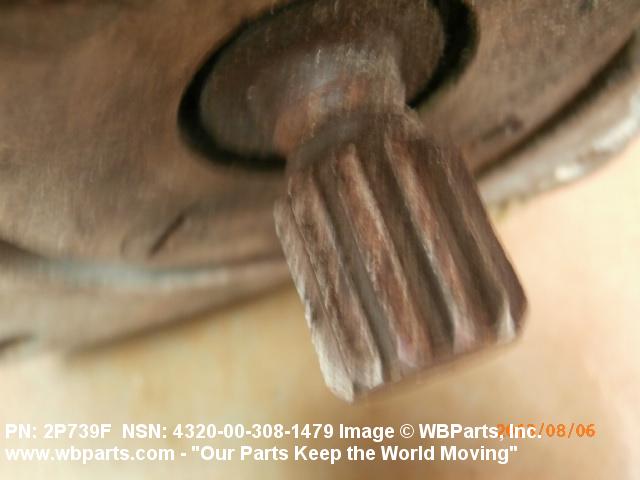

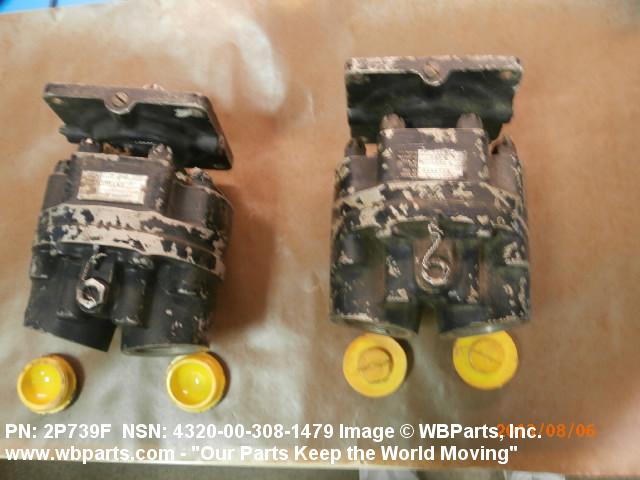

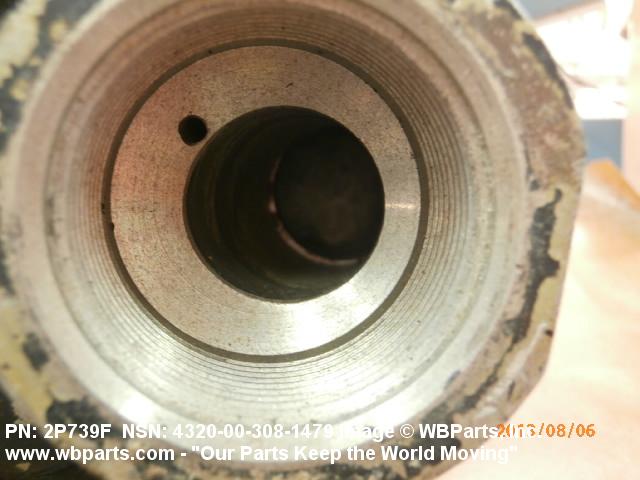

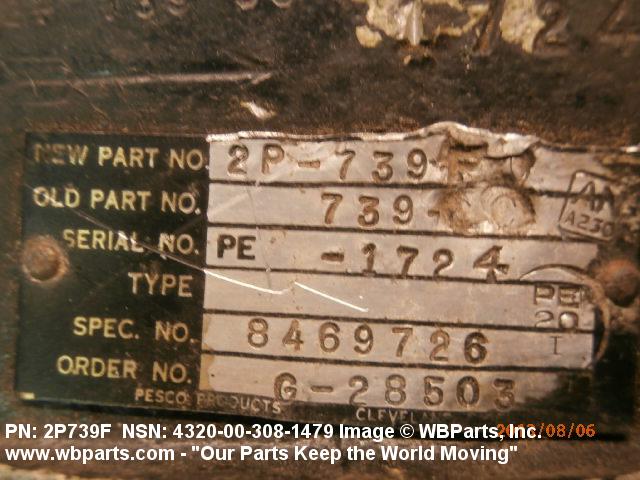

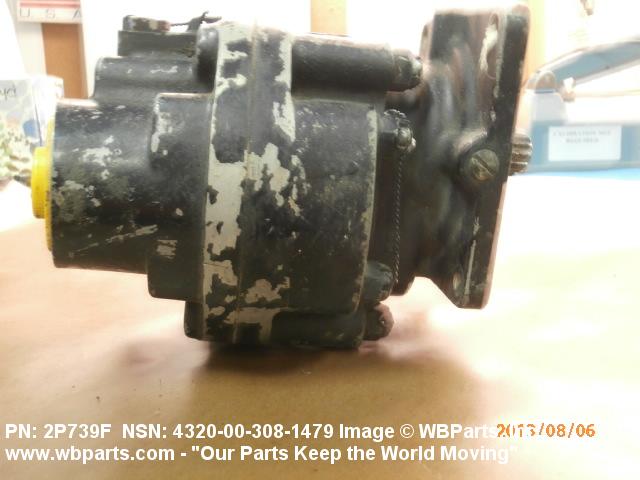

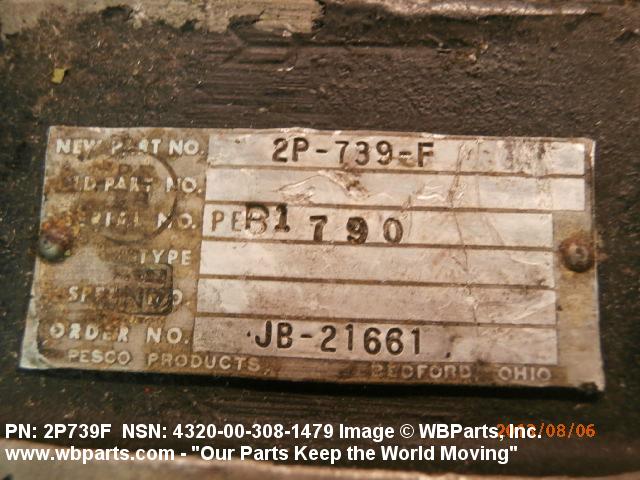

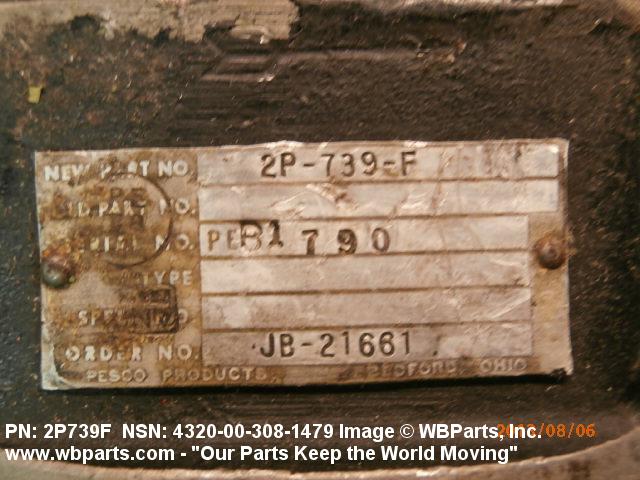

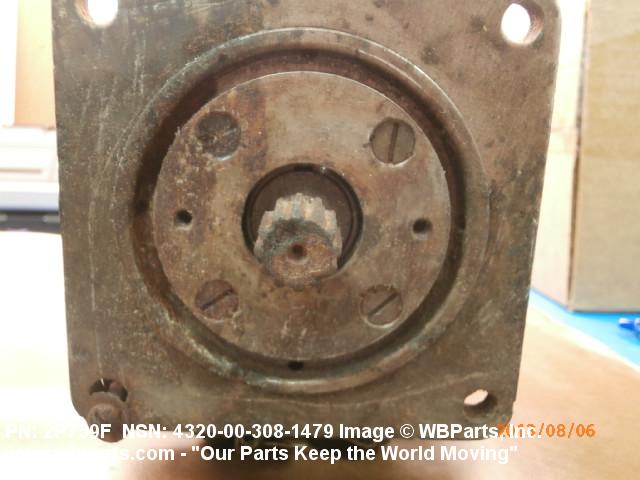

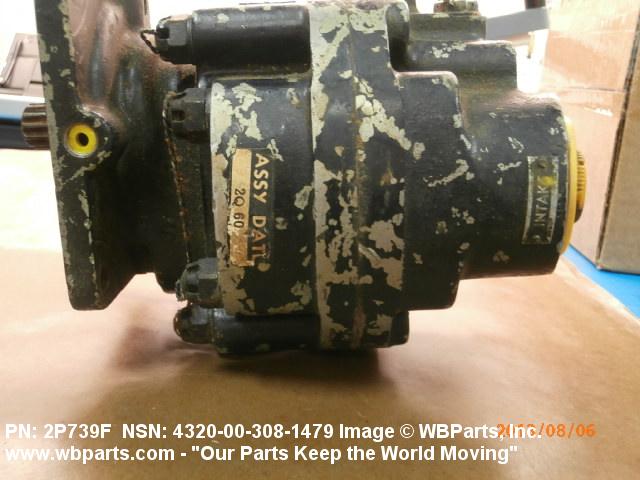

Drawings & Photos | NSN 4320-00-308-1479
Demand History | NSN 4320-00-308-1479
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2P739F | 2022-10-298 | 2 | US |
| 4320-00-308-1479 | 2021-07-207 | 2 | US |
| 4320-00-308-1479 | 2018-05-129 | 2 | US |
| 4320-00-308-1479 | 2016-04-101 | 3 | US |
| 4320-00-308-1479 | 2013-07-206 | 2 | France |
| 4320-00-308-1479 | 2010-07-193 | 5 | Australia |
| 2P739F | 2008-06-168 | 1 | Canada |
| 4320-00-308-1479 | 2006-11-312 | 1 | Spain |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-00-308-1479
Technical Data | NSN 4320-00-308-1479
| Characteristic | Specifications |
|---|---|
| MAXIMUM DISCHARGE FLOW RATE | 23.0 GALLONS PER MINUTE |
| DISCHARGE PRESSURE | 500.0 POUNDS PER SQUARE INCH GAGE |
| OPERATING SPEED AT RATED CAPACITY | 3600.0 REVOLUTIONS PER MINUTE |
| MEDIA FOR WHICH DESIGNED | HYDROCARBON FUELS AND OILS |
| PUMPING ELEMENT OPERATING POSITION | HORIZONTAL |
| PUMP ROTATION DIRECTION | COUNTERCLOCKWISE |
| VOLUME CONTROL TYPE | ROTARY |
| ROTARY PUMP DESIGN | GEAR |
| OPERATION METHOD | POWERED |

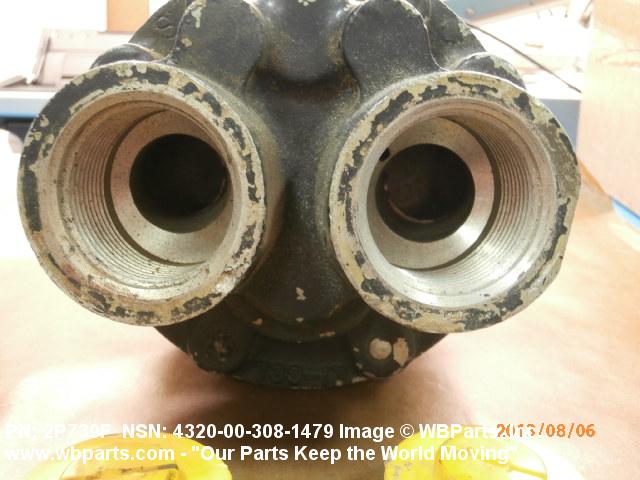

| INTAKE CONNECTION QUANTITY | 2 |

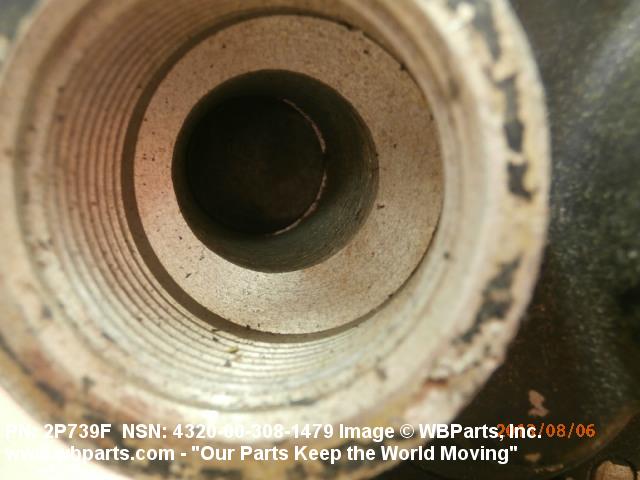

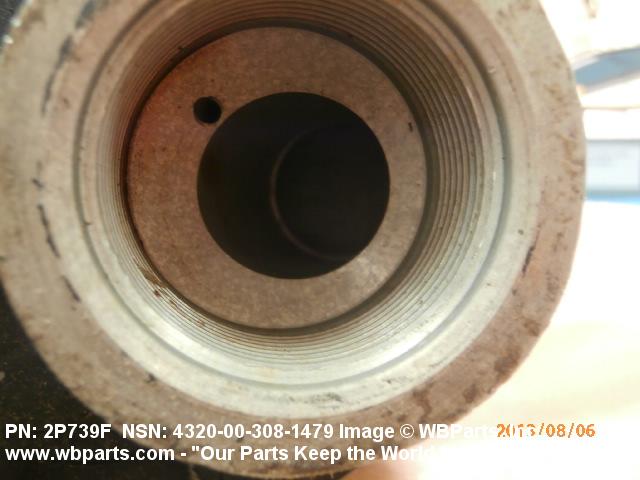

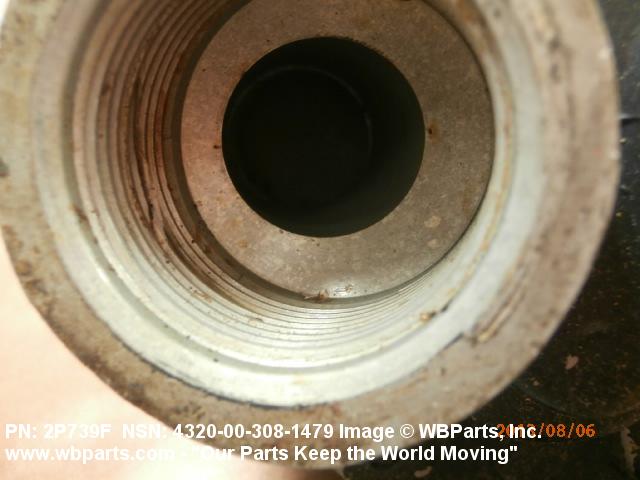

| INTAKE CONNECTION TYPE | THREADED INTERNAL |
| INTAKE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1.625-12-N3 NPT |
| DRIVE CONNECTION TYPE | GEAR |

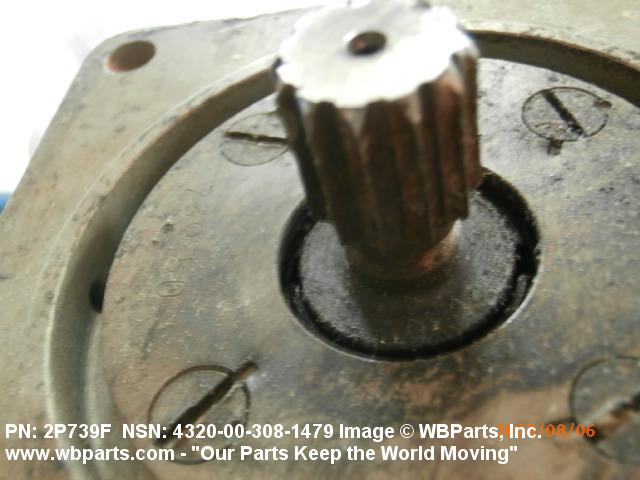

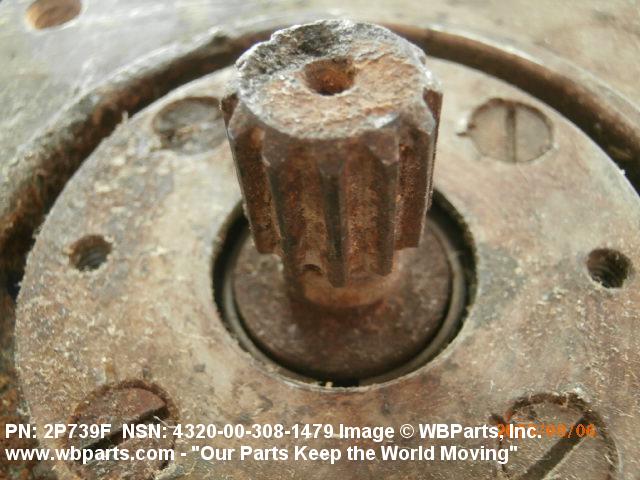

| DRIVE SHAFT TYPE | SPLINED, STRAIGHT EXTERNAL |
| DRIVE SHAFT END DIAMETER | 0.645 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |
| DRIVE SHAFT LENGTH | 0.969 INCHES NOMINAL |
| MANUFACTURERS CODE | 45934 |
| DESIGN CONTROL REFERENCE | 2P739F |
Restrictions/Controls & Freight Information | NSN 4320-00-308-1479
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
