NSN 4320-00-350-8725 RPA308090, RPA308090A, RPA308090B
Product Details | ROTARY PUMP
4320-00-350-8725 A positive displacement device which utilzes the rotating motion of one or more gears, cams, vanes, or screws in an enclosure as a means of transferring a liquid from one place to another. It is designed to be driven manually or by a prime mover which is not an integral part of the pump. Excludes aircraft engine pumps.
Part Alternates: RPA308090, RPA308090A, RPA308090B, RPA308090C, RPA-308090-C, 4320-00-350-8725, 00-350-8725, 4320003508725, 003508725
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 23 MAR 1970 | 00-350-8725 | 30410 ( PUMP, ROTARY ) |

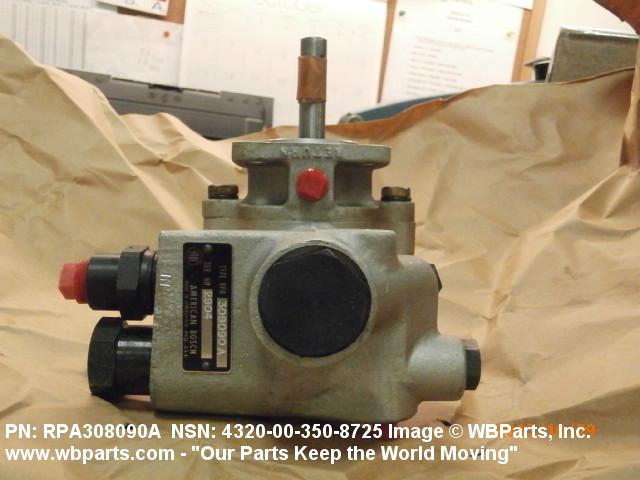

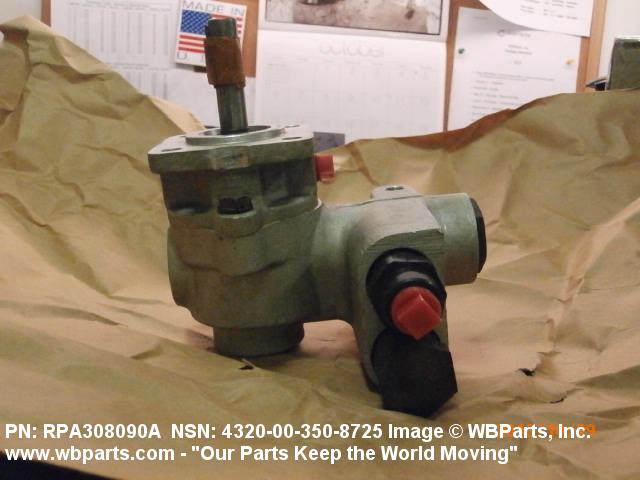

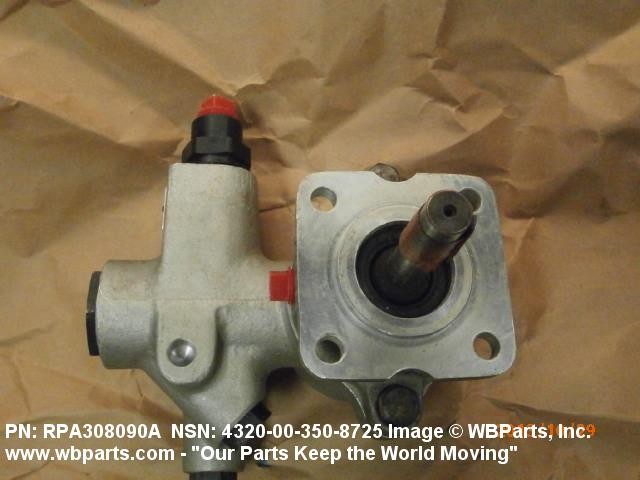

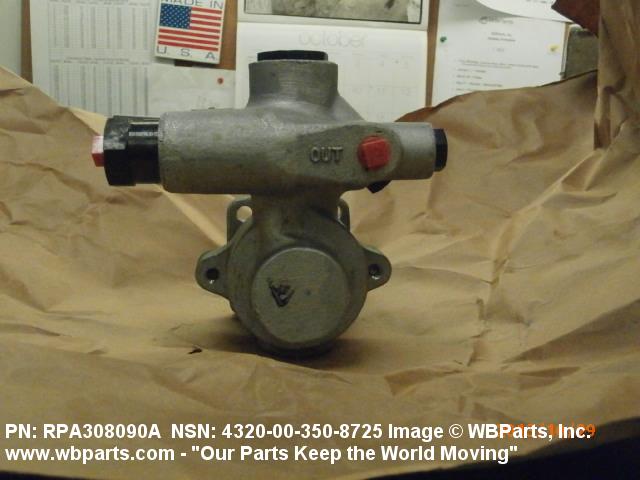

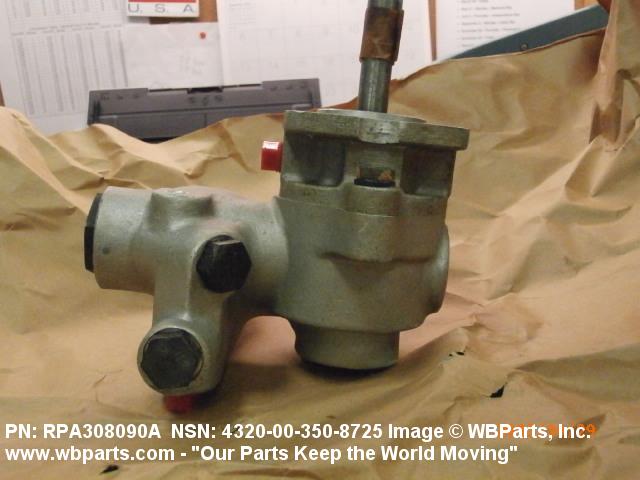

Drawings & Photos | NSN 4320-00-350-8725
Demand History | NSN 4320-00-350-8725
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4320-00-350-8725 | 2014-11-324 | 8 | DIBBS |
| 4320-00-350-8725 | 2014-08-217 | 2 | DIBBS |
| 4320-00-350-8725 | 2014-07-187 | 2 | DIBBS |
| RPA308090C | 2013-10-288 | 2 | Thailand |
| 4320-00-350-8725 | 2012-03-90 | 1 | DIBBS |
| 4320-00-350-8725 | 2011-11-311 | 1 | UK |
| 4320-00-350-8725 | 2011-08-221 | 1 | DIBBS |
| 4320-00-350-8725 | 2011-07-193 | 2 | DIBBS |
| RPA308090B | 2009-01-06 | 2 | United Kingdom |
Cross Reference | NSN 4320-00-350-8725
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4320-00-350-8725
Related Products | NSN 4320-00-350-8725
Technical Data | NSN 4320-00-350-8725
| Characteristic | Specifications |
|---|---|
| MAXIMUM DISCHARGE FLOW RATE | 0.7 GALLONS PER MINUTE |
| DISCHARGE PRESSURE | 3000.0 POUNDS PER SQUARE INCH GAGE |
| SUCTION LIFT | 3.000 FEET |
| OPERATING SPEED AT RATED CAPACITY | 3500.0 REVOLUTIONS PER MINUTE |
| MEDIA FOR WHICH DESIGNED | HYDROCARBON FUELS AND OILS |
| PUMP ROTATION DIRECTION | CLOCKWISE AND COUNTERCLOCKWISE |
| ROTARY PUMP DESIGN | CAM AND PISTON |
| OPERATION METHOD | POWERED |
| INTAKE CONNECTION QUANTITY | 1 |
| INTAKE CONNECTION TYPE | THREADED INTERNAL |
| INTAKE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.375-14 NPTF |
| DISCHARGE CONNECTION QUANTITY | 1 |
| DISCHARGE CONNECTION TYPE | THREADED INTERNAL |
| DISCHARGE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.250-14 NPTF |
| DRIVE CONNECTION TYPE | MULTISTRAND V-BELT |
| DRIVE SHAFT TYPE | WOODRUFF KEYWAY |

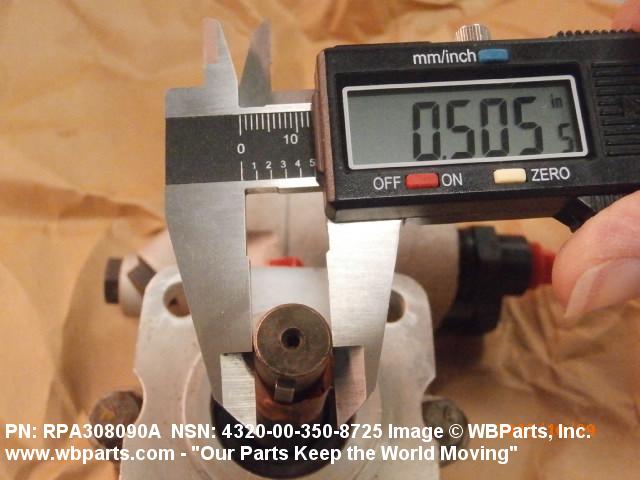

| DRIVE SHAFT END DIAMETER | 0.500 INCHES NOMINAL |
| DRIVE SHAFT LENGTH | 2.937 INCHES NOMINAL |
| (NON-CORE DATA) INTEGRAL RELIEF VALVE | INCLUDED |
Restrictions/Controls & Freight Information | NSN 4320-00-350-8725
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-00-350-8725
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
