NSN 4320-01-062-3428 SPI659C0588, SPI-659C0588, KMC659C0588
Product Details | PUMP SHAFT SLEEVE
4320-01-062-3428 A tubular shaped metallic item designed to provide a replaceable wearing surface for a centrifugal pump shaft. See also BEARING, SLEEVE; BUSHING, SLEEVE; and SPACER, SLEEVE.
Part Alternates: SPI659C0588, SPI-659C0588, KMC659C0588, KMC-659C0588, PL999D0556PC15, 65900163J028A, 659C0588AP, 659C0588-AP, 659C0588J028A, 999D0556, 4320-01-062-3428, 01-062-3428, 4320010623428, 010623428
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 15 JUL 1978 | 01-062-3428 | 61082 ( SLEEVE, SHAFT, PUMP ) |
Drawings & Photos | NSN 4320-01-062-3428
Cross Reference | NSN 4320-01-062-3428
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65900163J028A | 63857 | WARREN PUMPS LLC |
| 659C0588-AP | 1T943 | ACME PRODUCTS & ENGINEERING INC |
| 659C0588J028A | 63857 | WARREN PUMPS LLC |
| 999D0556 | 63857 | WARREN PUMPS LLC |
| KMC-659C0588 | 30828 | KROBACH MFG. CORP. |
| PL999D0556PC15 | 63857 | WARREN PUMPS LLC |
| SPI-659C0588 | 64177 | SHIPS PARTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-01-062-3428
Technical Data | NSN 4320-01-062-3428
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY OVERALL |

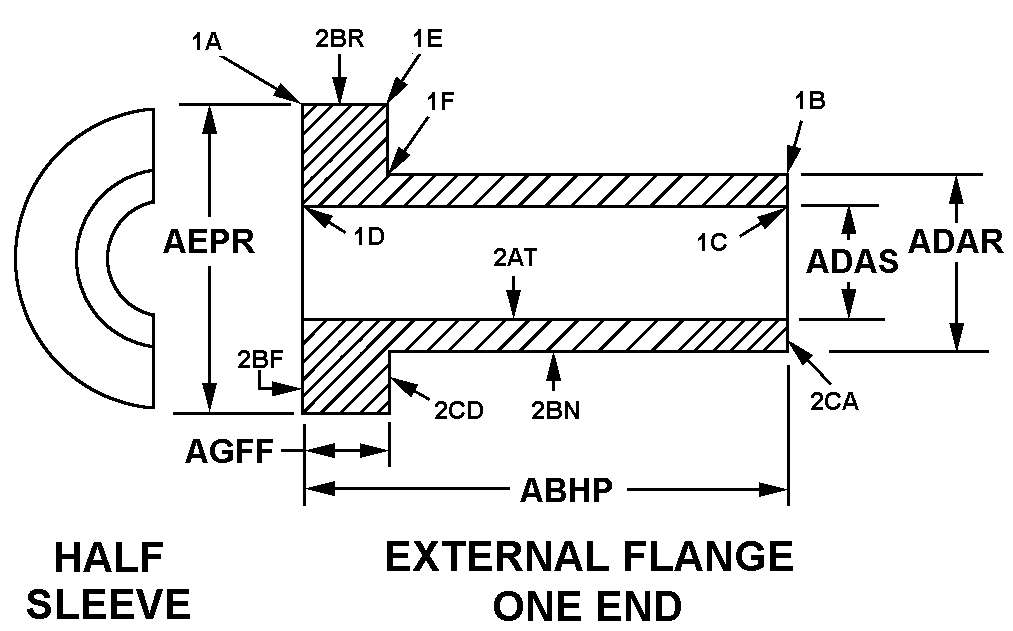

| STYLE DESIGNATOR | 22D HALF SLEEVE |
| OVERALL LENGTH | 11.4370 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 4.0000 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 3.6250 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 5.0000 INCHES NOMINAL |
| FLANGE WIDTH | 2.7660 INCHES NOMINAL |
| CORNER SHAPE | SQUARE ALL CORNERS |
| SPECIAL FEATURES | FLANGED END THD INTERNAL,3 3/4.-12UN,LH THD; W/THREE THD HOLES,1/2 IN.-13UNC ON OUTER PERIPHERY OF FLANGE,SPACED 120 DEG APART LOCATED 2.250 IN. FROM FLANGE END TO HOLE CENTR; FURNISHED W/THREE LOCK SCREWS |
Restrictions/Controls & Freight Information | NSN 4320-01-062-3428
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114730 | BARRELS/LINERS/SLEEVES I/C ENGINE |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-01-062-3428
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
