NSN 4320-01-071-0563 2D147365, 74916, 01-071-0563
Product Details | SPRING LOADED SHAFT SEAL ASSEMBLY
4320-01-071-0563 A combination of items used in sealing various rotary shaft equipment. It may include items such as bellows, disk, drive ring, flexible diaphragm, mating ring, o-ring, retainer, seat, sleeve, washer and the like. Excludes SEAL, PLAIN ENCASED.
Part Alternates: 2D147365, 74916, 4320-01-071-0563, 01-071-0563, 4320010710563, 010710563, 2D-147365
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 29 JAN 1979 | 01-071-0563 | 32556 ( SEAL ASSEMBLY, SHAFT, SPRING LOADED ) |

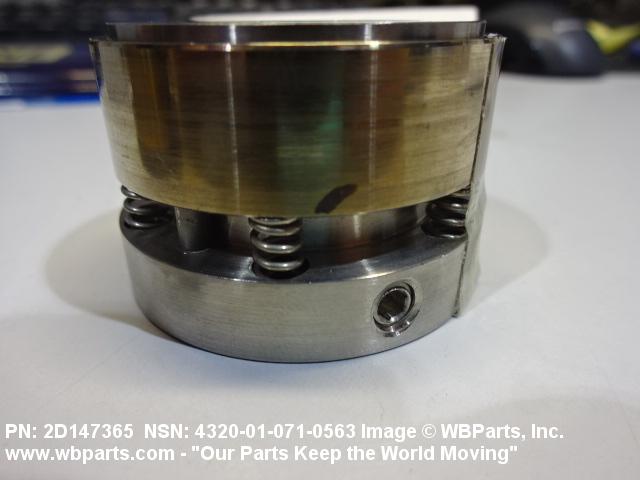

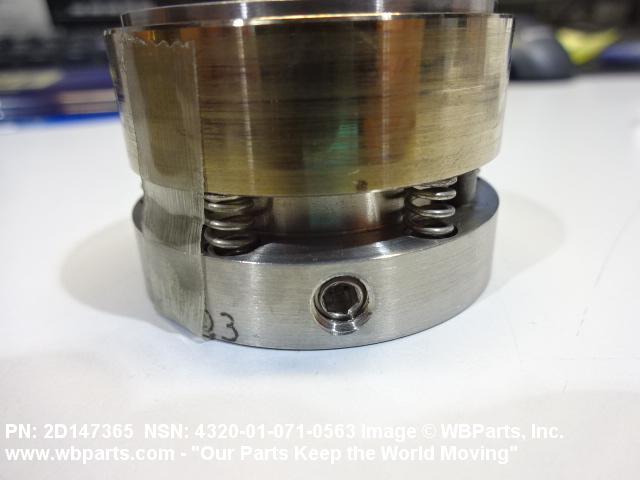

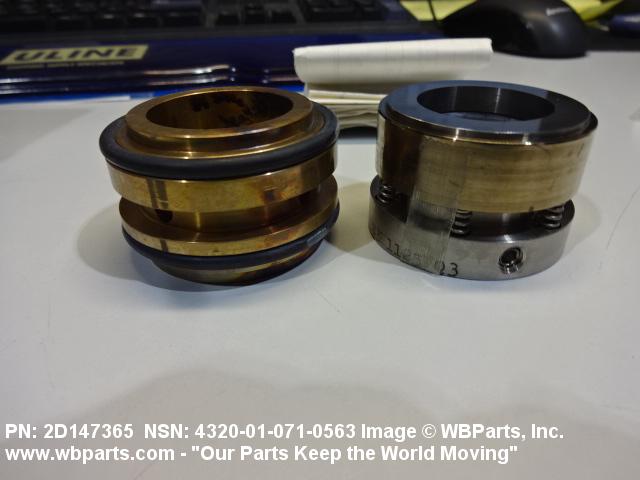

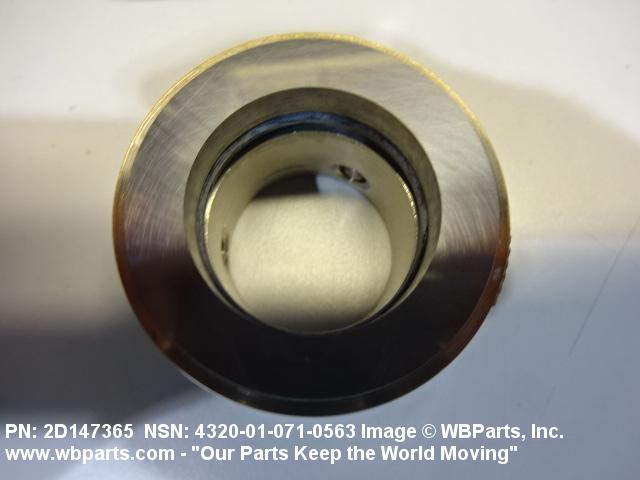

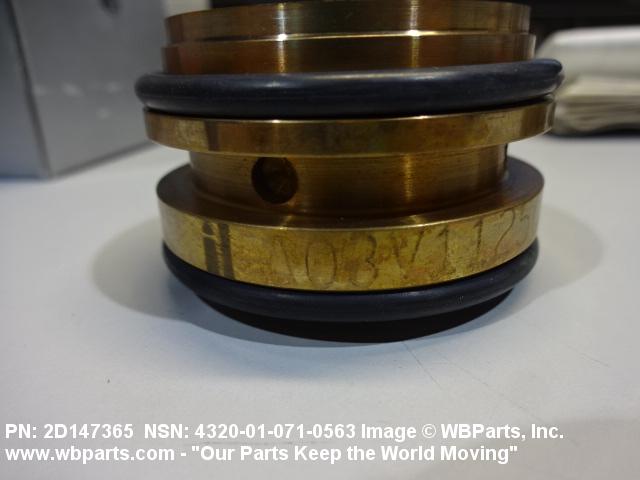

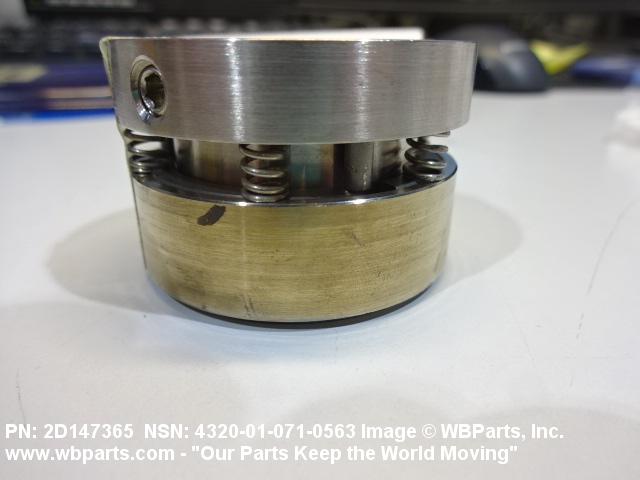

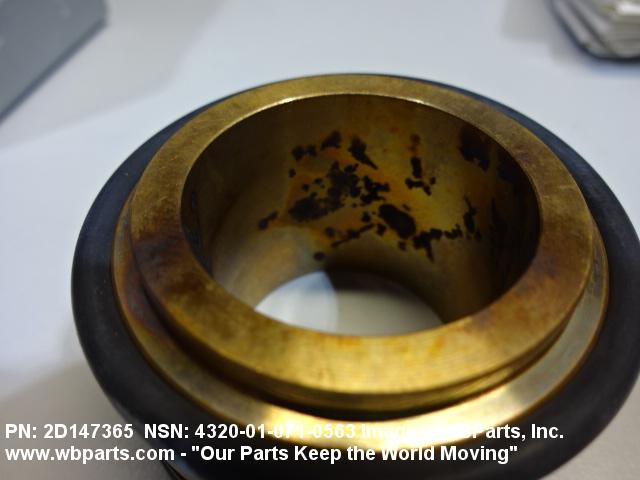

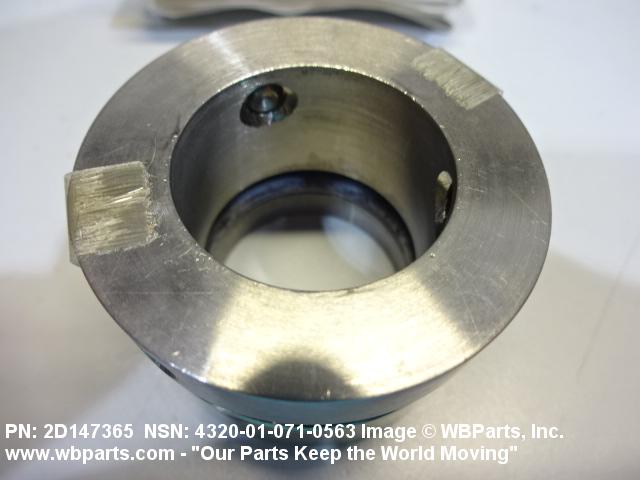

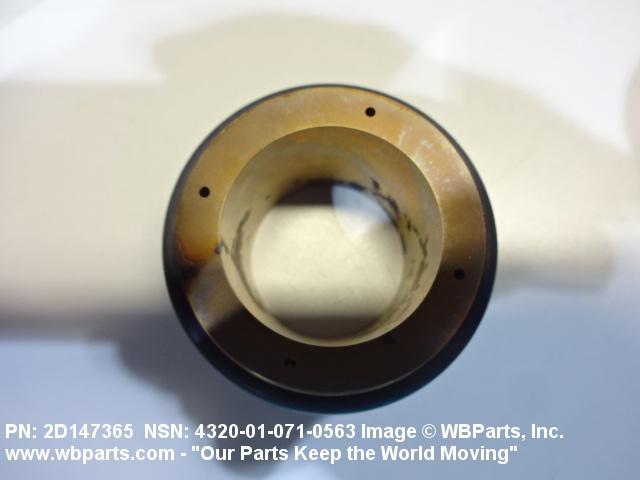

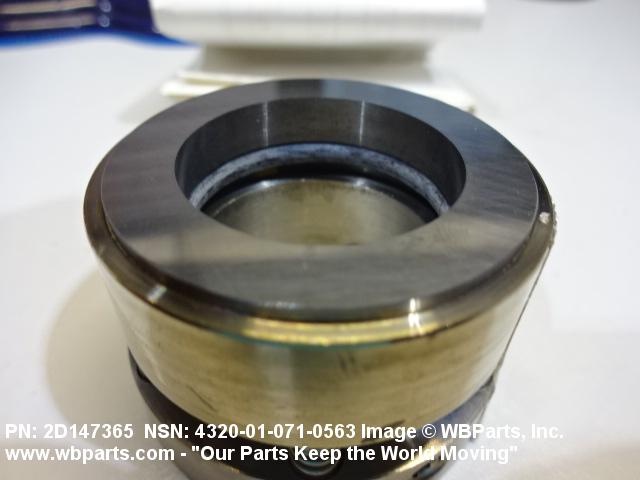

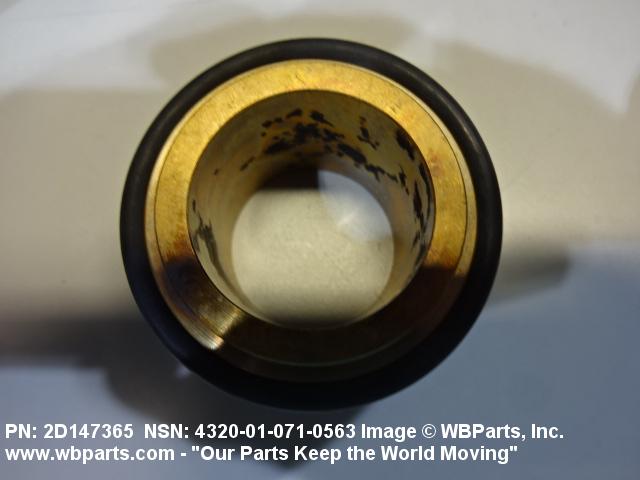

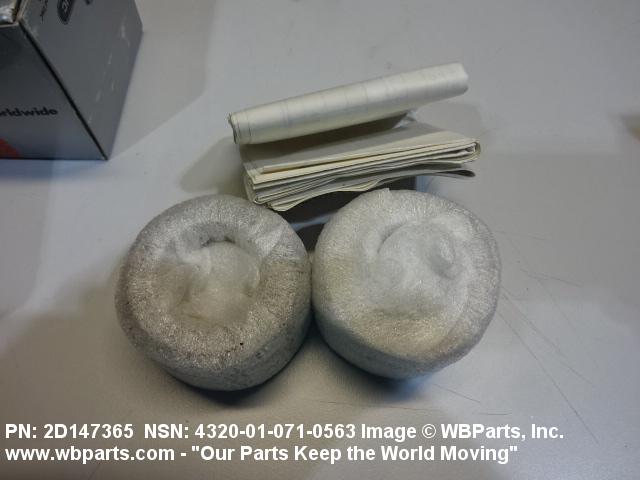

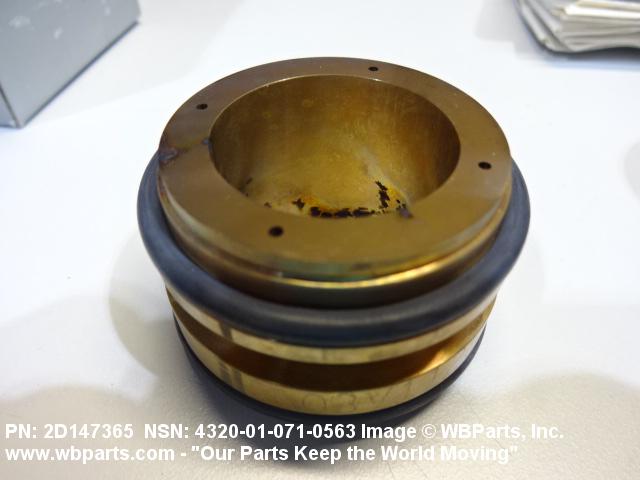

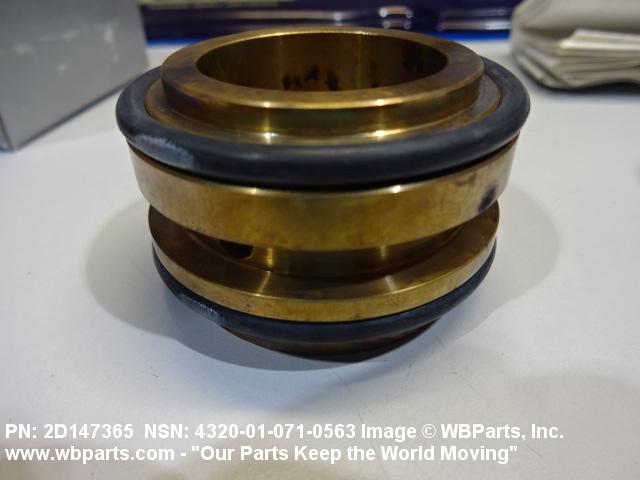

Drawings & Photos | NSN 4320-01-071-0563
Demand History | NSN 4320-01-071-0563
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4320-01-071-0563 | 2018-10-285 | 6 | us |
| 4320-01-071-0563 | 2018-05-121 | 6 | DIBBS |
| 4320-01-071-0563 | 2018-04-108 | 6 | DIBBS |
| 74916 | 2017-07-200 | 30 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-01-071-0563
Technical Data | NSN 4320-01-071-0563
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | CONSISTS OF 19 ITEMS 1 STEEL,GLAND RING 1457901A,2 RUBBER,SYNTHETIC O RINGS R1750333,1 BRONZE INSERT V1125QD3,1 TUNGSTEN CARBINE SEAL RING A1125G33,6 CRES,SPRINGS X8840302,3 CRES DRIVE PINS X8840213,3CRES,SET SCREWS X8840403,1 RUBBER,SYNTHETIC SHAFT PACKING R1125333,1 CRES,COLLAR M1125MQ3 |
| MANUFACTURERS CODE | 85265 |
| DESIGN CONTROL REFERENCE | 2D-147365 |
Restrictions/Controls & Freight Information | NSN 4320-01-071-0563
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-01-071-0563
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
