NSN 4320-01-263-5203 B1.5-P30A1, B15P30A1, BWK43740
Product Details | ROTARY PUMP
4320-01-263-5203 A positive displacement device which utilzes the rotating motion of one or more gears, cams, vanes, or screws in an enclosure as a means of transferring a liquid from one place to another. It is designed to be driven manually or by a prime mover which is not an integral part of the pump. Excludes aircraft engine pumps.
Part Alternates: B1.5-P30A1, B15P30A1, BWK43740, B-WK-437-40, 4320-01-263-5203, 01-263-5203, 4320012635203, 012635203
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01-263-5203 | 30410 ( PUMP, ROTARY ) |

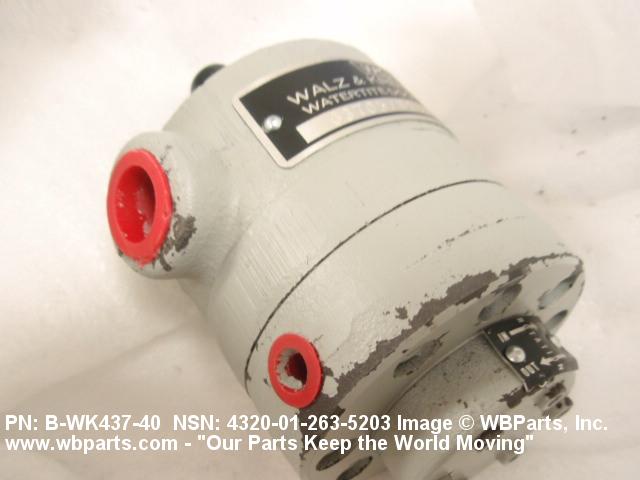

Drawings & Photos | NSN 4320-01-263-5203
Demand History | NSN 4320-01-263-5203
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4320-01-263-5203 | 2010-09-261 | 1 | United States |
| 4320-01-263-5203 | 2010-08-237 | 1 | United States |
| 4320-01-263-5203 | 2008-08-239 | 1 | DIBBS |
| 4320-01-263-5203 | 2008-06-171 | 1 | US |
| 4320-01-263-5203 | 2007-01-23 | 3 | DIBBS |
Cross Reference | NSN 4320-01-263-5203
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D-WK-852-47 | 63705 | WALZ AND KRENZER INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-01-263-5203
Technical Data | NSN 4320-01-263-5203
| Characteristic | Specifications |
|---|---|
| MAXIMUM DISCHARGE FLOW RATE | 1.5 GALLONS PER MINUTE AND 3.0 GALLONS PER MINUTE |
| DISCHARGE PRESSURE | 900.0 POUNDS PER SQUARE INCH GAGE |
| OPERATING SPEED AT RATED CAPACITY | 1800.0 REVOLUTIONS PER MINUTE AND 3400.0 REVOLUTIONS PER MINUTE |
| PUMPING ELEMENT OPERATING POSITION | HORIZONTAL |
| PUMP ROTATION DIRECTION | COUNTERCLOCKWISE |
| INTAKE CONNECTION QUANTITY | 1 |
| INTAKE CONNECTION TYPE | THREADED INTERNAL |
| DISCHARGE CONNECTION QUANTITY | 1 |
| DISCHARGE CONNECTION TYPE | THREADED INTERNAL |
| DRIVE SHAFT TYPE | WOODRUFF KEYWAY |
| DRIVE SHAFT END DIAMETER | 0.499 INCHES NOMINAL |
| MANUFACTURERS CODE | 63705 |
| DESIGN CONTROL REFERENCE | B-WK-437-40 |
Restrictions/Controls & Freight Information | NSN 4320-01-263-5203
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
