NSN 4320-01-432-0321 HP50024204, HP5002-4204 , HP50034204
Product Details | HAND DRIVEN HYDRAULIC RAM PUMP
4320-01-432-0321 A positive displacement pump designed to utilize the reciprocating motion of a single piston as a means for providing hydraulic pressure. A manual control may be provided for varying the pressure delivered. Excludes JACK HYDRAULIC, HAND.
Part Alternates: HP50024204, HP5002-4204 , HP50034204, HP5003-4204, PAS 169, PAS169, PID 134, PID134, 12420700, 4320-01-432-0321, 01-432-0321, 4320014320321, 014320321
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 23 MAY 1996 | 01-432-0321 | 17989 ( PUMP, HYDRAULIC RAM, HAND DRIVEN ) |

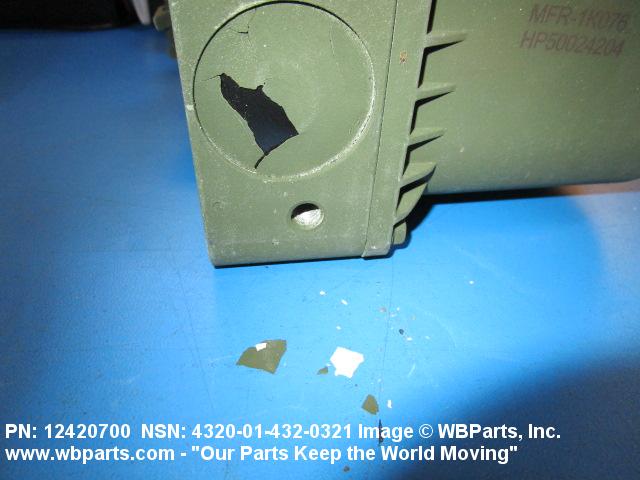

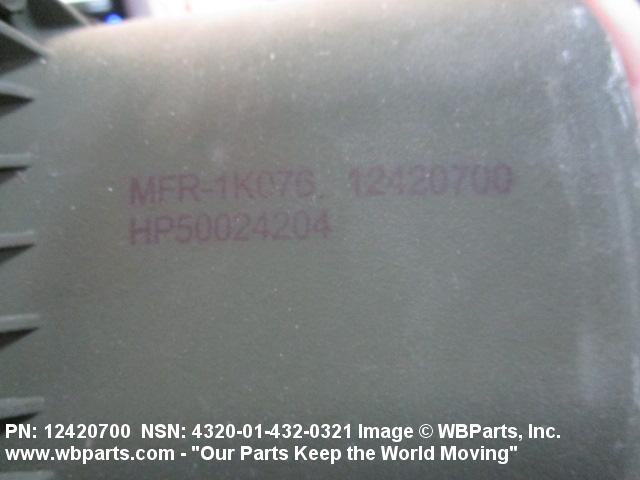

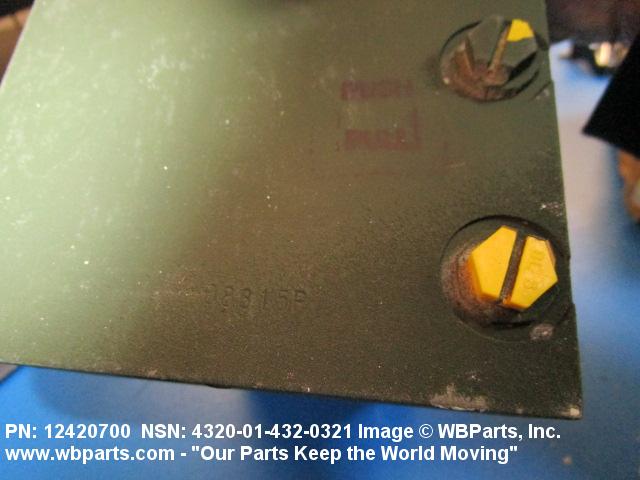

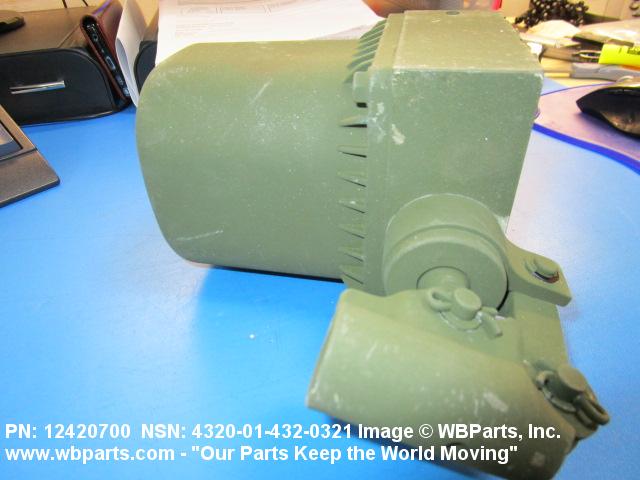

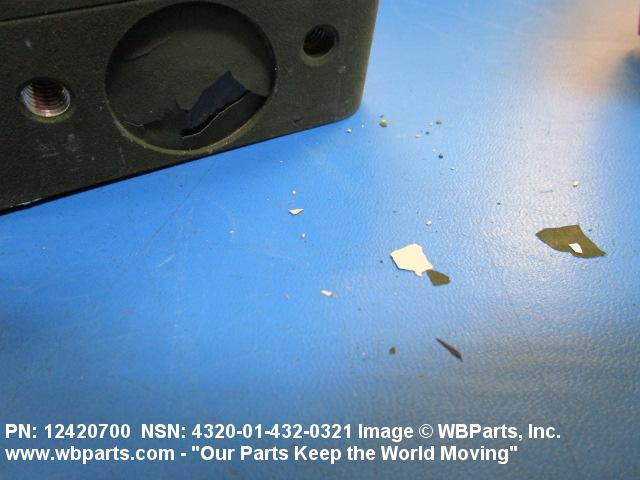

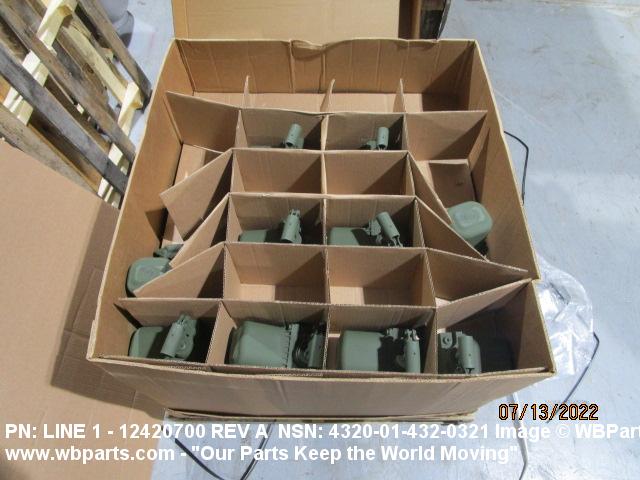

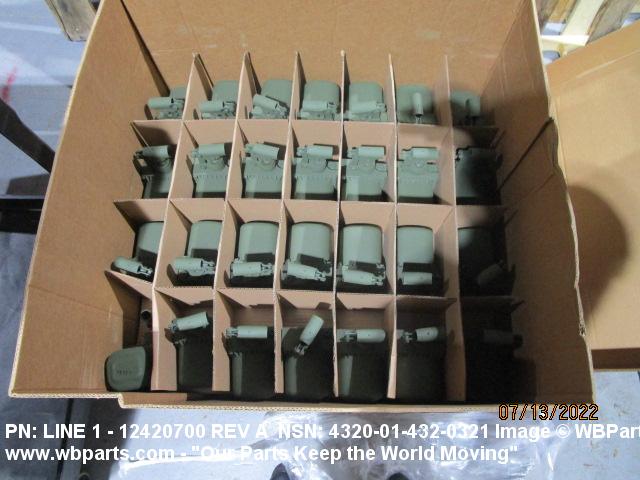

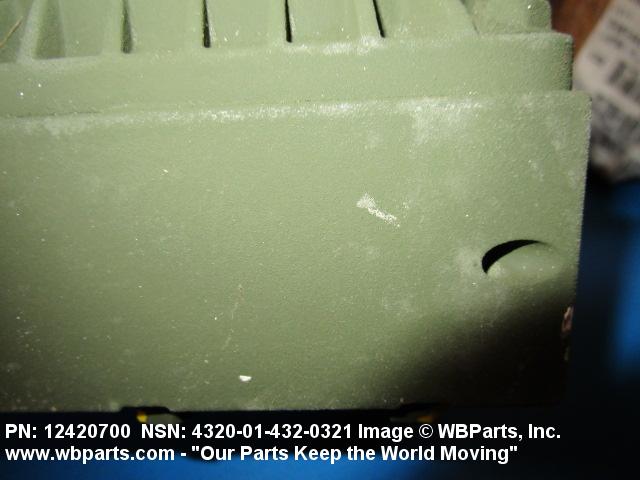

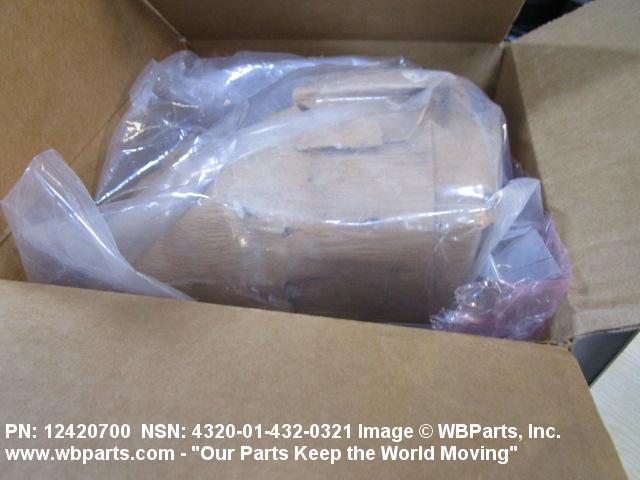

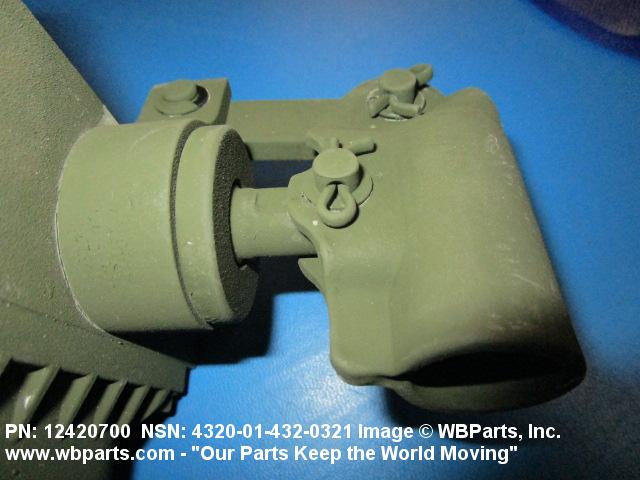

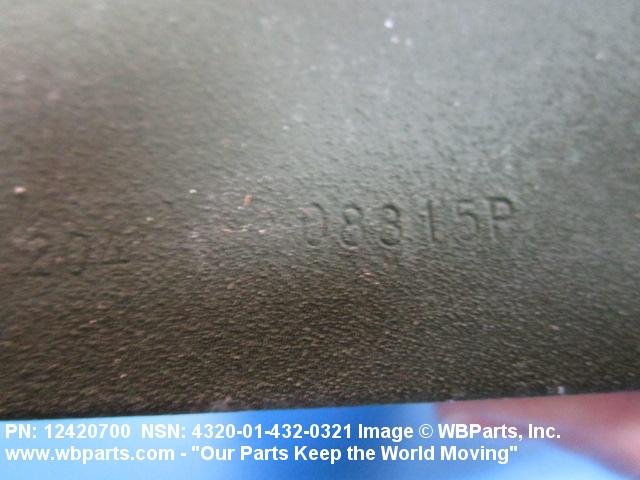

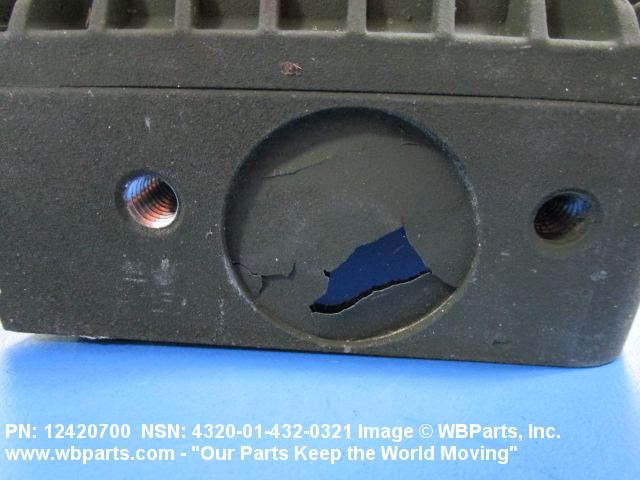

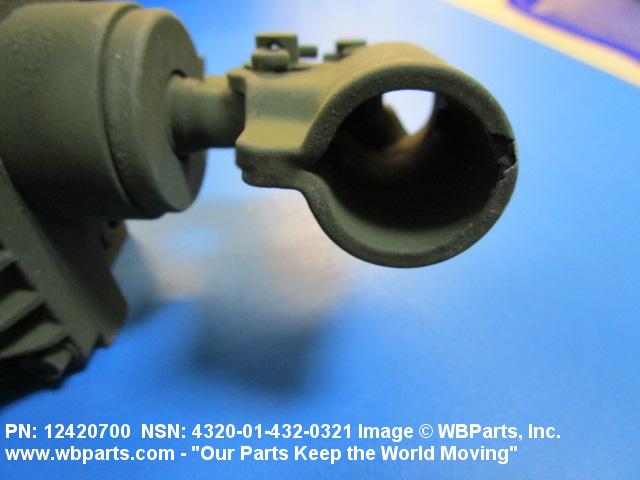

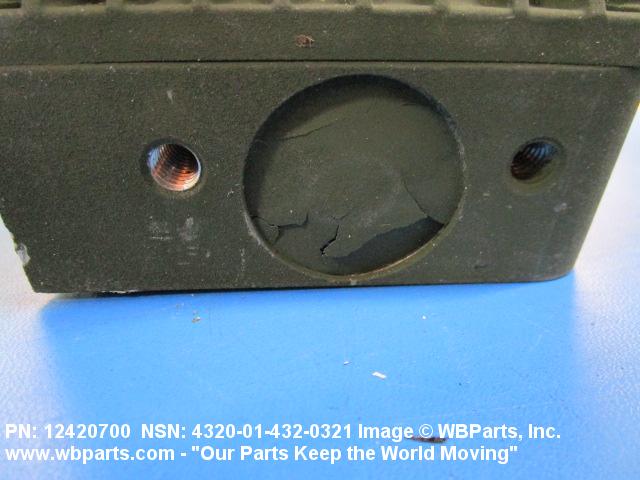

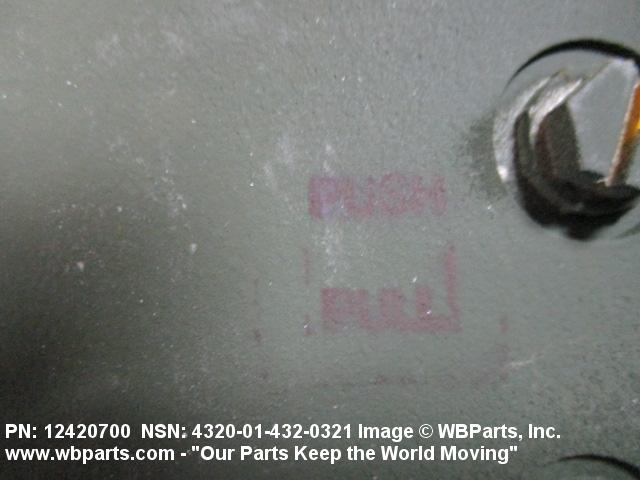

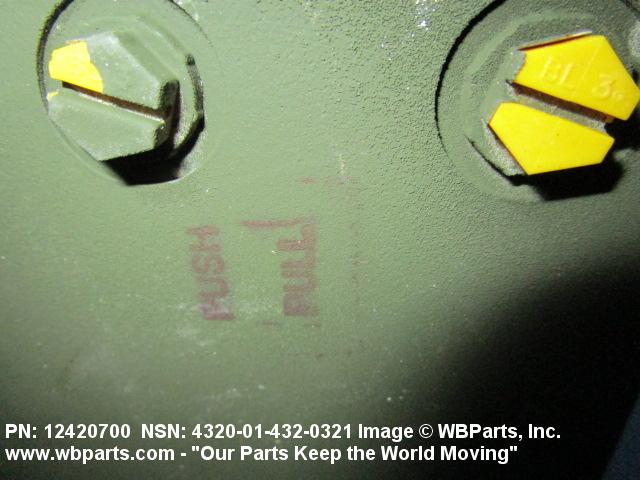

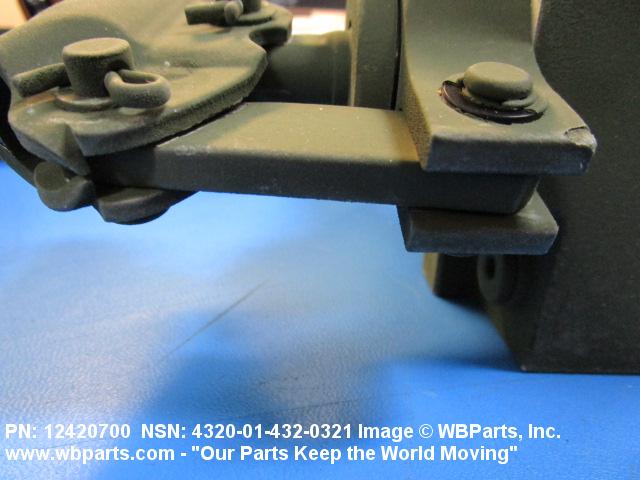

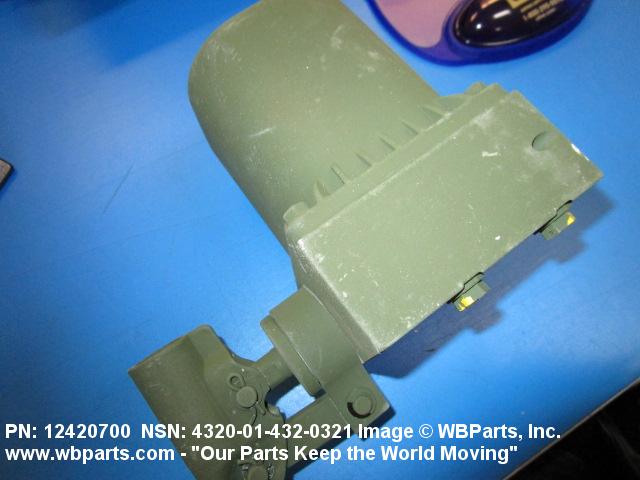

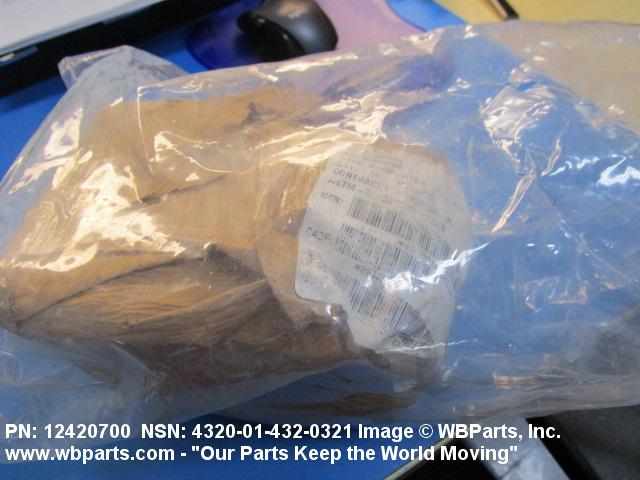

Drawings & Photos | NSN 4320-01-432-0321
Demand History | NSN 4320-01-432-0321
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4320-01-432-0321 | 2025-11-332 | 563 | US |
| 4320-01-432-0321 | 2025-11-330 | 563 | DIBBS |
| 4320-01-432-0321 | 2025-07-205 | 107 | DIBBS |
| 4320-01-432-0321 | 2025-02-56 | 1 | Turkey |
| 4320-01-432-0321 | 2025-02-56 | 223 | DIBBS |
| 4320-01-432-0321 | 2025-02-41 | 223 | DIBBS |
| 4320-01-432-0321 | 2025-01-26 | 117 | DIBBS |
| 4320-01-432-0321 | 2025-01-23 | 220 | DIBBS |
| 4320-01-432-0321 | 2024-12-340 | 104 | US |
| 4320-01-432-0321 | 2024-11-311 | 220 | DIBBS |
| 4320-01-432-0321 | 2024-10-277 | 70 | United States |
| 4320-01-432-0321 | 2024-07-189 | 220 | DIBBS |
| 4320-01-432-0321 | 2024-05-150 | 220 | DIBBS |
| 4320-01-432-0321 | 2024-05-143 | 122 | DIBBS |
| 4320-01-432-0321 | 2024-03-63 | 98 | DIBBS |
| 12420700 | 2024-01-30 | 158 | DIBBS |
| HP5002-4204 | 2024-01-30 | 158 | DIBBS |
| 4320-01-432-0321 | 2024-01-10 | 3 | US |
| 12420700 | 2023-11-313 | 6 | United States |
| 12420700 | 2023-09-267 | 395 | DIBBS |
| HP5002-4204 | 2023-09-267 | 395 | DIBBS |
| 12420700 | 2023-08-215 | 111 | DIBBS |
| HP5002-4204 | 2023-08-215 | 111 | DIBBS |
| 12420700 | 2023-05-132 | 99 | DIBBS |
| HP5002-4204 | 2023-05-132 | 99 | DIBBS |
| 12420700 | 2023-05-121 | 99 | DIBBS |
| HP5002-4204 | 2023-05-121 | 99 | DIBBS |
| 12420700 | 2023-04-110 | 99 | DIBBS |
| HP5002-4204 | 2023-04-110 | 99 | DIBBS |
| 12420700 | 2023-02-55 | 108 | DIBBS |
| HP5002-4204 | 2023-02-55 | 108 | DIBBS |
| 12420700 | 2023-02-44 | 108 | DIBBS |
| HP5002-4204 | 2023-02-44 | 108 | DIBBS |
| 12420700 | 2023-02-33 | 108 | DIBBS |
| HP5002-4204 | 2023-02-33 | 108 | DIBBS |
| 12420700 | 2022-12-355 | 72 | US |
| 12420700 | 2022-10-284 | 231 | DIBBS |
| HP5002-4204 | 2022-10-284 | 231 | DIBBS |
| 12420700 | 2022-09-270 | 231 | DIBBS |
| HP5002-4204 | 2022-09-270 | 231 | DIBBS |
| 12420700 | 2022-09-262 | 163 | DIBBS |
| HP5002-4204 | 2022-09-262 | 163 | DIBBS |
| 12420700 | 2022-09-261 | 68 | DIBBS |
| HP5002-4204 | 2022-09-261 | 68 | DIBBS |
| 12420700 | 2022-09-249 | 163 | DIBBS |
| HP5002-4204 | 2022-09-249 | 163 | DIBBS |
| 12420700 | 2022-08-235 | 163 | DIBBS |
| HP5002-4204 | 2022-08-235 | 163 | DIBBS |
| 12420700 | 2022-08-220 | 163 | DIBBS |
| HP5002-4204 | 2022-08-220 | 163 | DIBBS |
| 12420700 | 2022-08-217 | 163 | DIBBS |
| HP5002-4204 | 2022-08-217 | 163 | DIBBS |
| 12420700 | 2022-07-206 | 163 | DIBBS |
| HP5002-4204 | 2022-07-206 | 163 | DIBBS |
| 12420700 | 2022-07-195 | 163 | DIBBS |
| HP5002-4204 | 2022-07-195 | 163 | DIBBS |
| 12420700 | 2022-06-174 | 42 | DIBBS |
| HP5002-4204 | 2022-06-174 | 42 | DIBBS |
| 4320-01-432-0321 | 2022-06-158 | 10 | United States |
| 12420700 | 2022-05-145 | 114 | DIBBS |
| HP5002-4204 | 2022-05-145 | 114 | DIBBS |
| 4320-01-432-0321 | 2022-05-144 | 3 | United States |
| HP50034204 | 2022-03-75 | 1 | US |
| 4320-01-432-0321 | 2022-02-40 | 66 | United States |
| 12420700 | 2021-11-308 | 66 | United States |
| 4320-01-432-0321 | 2021-11-306 | 1 | Canada |
| 4320-01-432-0321 | 2021-05-140 | 1 | Canada |
| 4320-01-432-0321 | 2021-02-40 | 6 | United States |
| 12420700 | 2020-12-357 | 6 | United States |
| 4320-01-432-0321 | 2020-03-69 | 1 | Canada |
| 4320-01-432-0321 | 2020-03-65 | 1 | US |
| 4320-01-432-0321 | 2020-02-45 | 1 | DIBBS-RFPs |
| 4320-01-432-0321 | 2019-09-273 | 1 | CA |
| 4320-01-432-0321 | 2018-12-353 | 1 | DIBBS-RFPs |
| 4320-01-432-0321 | 2018-11-322 | 400 | DIBBS |
| 4320-01-432-0321 | 2018-06-157 | 1 | US |
| 4320-01-432-0321 | 2018-05-142 | 230 | US |
| 4320-01-432-0321 | 2018-05-142 | 230 | DIBBS |
| 4320-01-432-0321 | 2018-04-116 | 224 | DIBBS |
| 4320-01-432-0321 | 2018-04-105 | 224 | DIBBS |
| 4320-01-432-0321 | 2018-02-32 | 99 | DIBBS |
| 4320-01-432-0321 | 2017-12-337 | 72 | DIBBS |
| 4320-01-432-0321 | 2017-08-243 | 231 | DIBBS |
| 4320-01-432-0321 | 2017-07-191 | 103 | DIBBS |
| 4320-01-432-0321 | 2017-06-180 | 103 | DIBBS |
| 4320-01-432-0321 | 2016-12-365 | 118 | US |
| 4320-01-432-0321 | 2016-12-364 | 118 | DIBBS |
| 4320-01-432-0321 | 2016-06-164 | 87 | DIBBS |
| 4320-01-432-0321 | 2016-03-91 | 97 | DIBBS |
| 4320-01-432-0321 | 2015-10-302 | 84 | DIBBS |
| 4320-01-432-0321 | 2015-08-214 | 1 | US |
| 4320-01-432-0321 | 2015-07-187 | 114 | DIBBS |
| 4320-01-432-0321 | 2015-05-137 | 99 | DIBBS |
| 4320-01-432-0321 | 2015-03-75 | 86 | DIBBS |
| 4320-01-432-0321 | 2015-03-64 | 86 | DIBBS |
| 4320-01-432-0321 | 2013-12-339 | 320 | DIBBS |
| 4320-01-432-0321 | 2013-11-324 | 320 | DIBBS |
| 4320-01-432-0321 | 2013-05-150 | 1 | Singapore |
| 4320-01-432-0321 | 2013-05-137 | 297 | DIBBS |
| 4320-01-432-0321 | 2013-05-122 | 297 | DIBBS |
| 4320-01-432-0321 | 2013-03-88 | 214 | DIBBS |
| 4320-01-432-0321 | 2013-01-31 | 379 | DIBBS |
| 4320-01-432-0321 | 2011-09-271 | 307 | DIBBS |
| 4320-01-432-0321 | 2011-07-193 | 167 | DIBBS |
| 4320-01-432-0321 | 2011-05-126 | 466 | DIBBS |
| 4320-01-432-0321 | 2010-07-183 | 263 | DIBBS |
| 4320-01-432-0321 | 2010-05-137 | 468 | DIBBS |
| 4320-01-432-0321 | 2010-05-126 | 421 | DIBBS |
| 4320-01-432-0321 | 2010-04-95 | 208 | DIBBS |
| 4320-01-432-0321 | 2010-02-43 | 131 | DIBBS |
| 4320-01-432-0321 | 2009-12-355 | 290 | DIBBS |
| 4320-01-432-0321 | 2009-12-342 | 221 | DIBBS |
| 4320-01-432-0321 | 2009-09-244 | 121 | DIBBS |
| 4320-01-432-0321 | 2009-06-174 | 165 | DIBBS |
| 4320-01-432-0321 | 2007-11-334 | 31 | DIBBS |
Cross Reference | NSN 4320-01-432-0321
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4320-01-432-0321
Related Products | NSN 4320-01-432-0321
Technical Data | NSN 4320-01-432-0321
| Characteristic | Specifications |
|---|---|
| OPERATING SPEED QUANTITY | 1 |
| MAXIMUM OPERATING PRESSURE | 5000.0 POUNDS PER SQUARE INCH |
| INLET CONNECTION QUANTITY | 1 |
| INLET CONNECTION TYPE | THREADED FEMALE |
| INLET CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.125-27 NPT |
| OUTLET CONNECTION QUANTITY | 1 |
| OUTLET CONNECTION TYPE | THREADED FEMALE |
| OUTLET CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.125-27 NPT |
| HOSE | NOT INCLUDED |
| SPECIAL FEATURES | RAISE/LOWER SHIFT LEVER; RELIEF VALVE SETTING 4000.0-4200.0 PSI; RESERVOIR CAP. 574.0 CU.IN.; RESERVOIR RELIEF SETTING 79.0-103.0 PSI; TEMPERATURE RANGE M50.0 DEG F TO 120.0 DEG F; 1.000 IN. STROKE LENGTH |
| III END ITEM IDENTIFICATION | XDA TRUCK,FAMILY OF MEDIUM TACTICAL VEHICLE (FMTV) LIGHT; 2320-01-354-3385 CARGO TRUCK |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | TILT CAB PUMP |
Restrictions/Controls & Freight Information | NSN 4320-01-432-0321
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 125820 | MOTORS/PUMPS HYDRAULIC ROTARY/PISTN |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-01-432-0321
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
