NSN 4330-01-334-9422 803-841499 PC4-1.0 AY96, 803-841499-4 RE, 8038414994RE
Product Details | FLUID FILTER COVER
4330-01-334-9422 A rigid item of various shapes designed as a component of a fluid filter, acting as the cover and retaining the filter element in place. The item does not have an inlet or outlet connection. It is fastened onto the FILTER BODY, FLUID by means of clamps or bolts. For items with inlet and/or outlet connections, see HEAD, FLUID FILTER.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters
Part Alternates: 803-841499 PC4-1.0 AY96, 803-841499-4 RE, 8038414994RE, 803-841499-4REVK AY96BRZ, 8038414994REVKAY96BRZ, 803841499PC410AY96, 841499, 841499K-PC-4-1.0 AY96BRZ, 841499KPC410AY96BRZ, 4330-01-334-9422, 01-334-9422, 4330013349422, 013349422
Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 04 MAR 1991 | 01-334-9422 | 22569 ( COVER, FLUID FILTER ) |
Drawings & Photos | NSN 4330-01-334-9422
Demand History | NSN 4330-01-334-9422
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4330-01-334-9422 | 2025-09-259 | 14 | DIBBS |
| 4330-01-334-9422 | 2024-09-262 | 13 | DIBBS |
| 4330-01-334-9422 | 2022-04-101 | 5 | DIBBS |
| 4330-01-334-9422 | 2022-03-90 | 5 | DIBBS |
| 4330-01-334-9422 | 2021-11-318 | 9 | DIBBS |
| 841499 | 2017-09-271 | 11 | SA |
| 4330-01-334-9422 | 2013-02-51 | 18 | DIBBS |
| 4330-01-334-9422 | 2012-03-91 | 3 | DIBBS |
| 4330-01-334-9422 | 2011-11-314 | 3 | DIBBS |
| 4330-01-334-9422 | 2011-10-280 | 3 | DIBBS |
| 841499 | 2010-09-265 | 39 | Pakistan |
| 4330-01-334-9422 | 2010-04-105 | 2 | DIBBS |
| 4330-01-334-9422 | 2008-12-344 | 2 | DIBBS |
Cross Reference | NSN 4330-01-334-9422
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4330-01-334-9422
Technical Data | NSN 4330-01-334-9422
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRONZE |

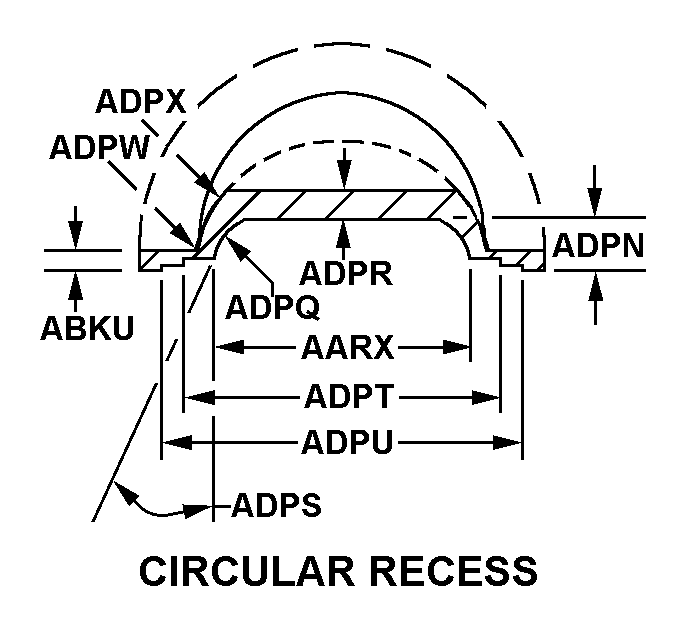

| CROSS-SECTIONAL SHAPE STYLE | 12 CIRCULAR RECESS |
| INSIDE DIAMETER | 0.8125 INCHES NOMINAL |
| FLANGE THICKNESS | 0.187 INCHES NOMINAL |
| FIRST RECESS INSIDE HEIGHT | 0.900 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.0938 INCHES NOMINAL |
| BODY THICKNESS | 0.4062 INCHES NOMINAL |
| SECOND RECESS DIAMETER | 1.127 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.093 INCHES NOMINAL |
| BODY OUTSIDE RADIUS | 0.094 INCHES NOMINAL |
| FLUID FILTER ELEMENT RETAINER | NOT INCLUDED |
| SPECIAL FEATURES | MATL PER ASTM 816; THREADED ATTACHMENT METHOD 1.43-16UN-2, 0.71IN.DEEP; 1.56IN.DIA O/A; HEX WRENCHING FACILITY ON TOP |
| III SUPPLEMENTARY FEATURES | E/I 1 IN. STRAINER ASSEMBLY (Y-TYPE), NO. 96 |
Restrictions/Controls & Freight Information | NSN 4330-01-334-9422
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4330-01-334-9422
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
