NSN 4420-00-142-1343 E8521003PC13, E8521262, 8521262
Product Details | FLUID COOLER CORE ASSEMBLY
4420-00-142-1343 An assembled unit which may consist of tubes, tube sheets, baffles and fins which comprise the basic heat transfer element of a COOLER, FLUID, TRANSMISSION and COOLER, FLUID, INDUSTRIAL. Excludes automotive radiators.20229300045Engine Cooling System Components, Nonaircraft44200036Heat Exchangers and Steam Condensers
Part Alternates: E8521003PC13, E8521262, 8521262, 4420-00-142-1343, 00-142-1343, 4420001421343, 001421343
Furnace, Steam Plant, and Drying Equipment; and Nuclear Reactors | Heat Exchangers and Steam Condensers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | 01 JAN 1963 | 00-142-1343 | 36982 ( CORE ASSEMBLY, FLUID COOLER ) |
Drawings & Photos | NSN 4420-00-142-1343
Cross Reference | NSN 4420-00-142-1343
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8521262 | 24617 | GENERAL MOTORS CORP |
| 8521262 | 27462 | GENERAL MOTORS CORP HARRISON RADIATOR DIV |
| E8521003PC13 | 24617 | GENERAL MOTORS CORP |
| E8521003PC13 | 27462 | GENERAL MOTORS CORP HARRISON RADIATOR DIV |
| E8521262 | 24617 | GENERAL MOTORS CORP |
| E8521262 | 27462 | GENERAL MOTORS CORP HARRISON RADIATOR DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4420-00-142-1343
Technical Data | NSN 4420-00-142-1343
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY TUBES |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-C-15726,COMP 70-30 MIL SPEC SINGLE MATERIAL RESPONSE TUBES |

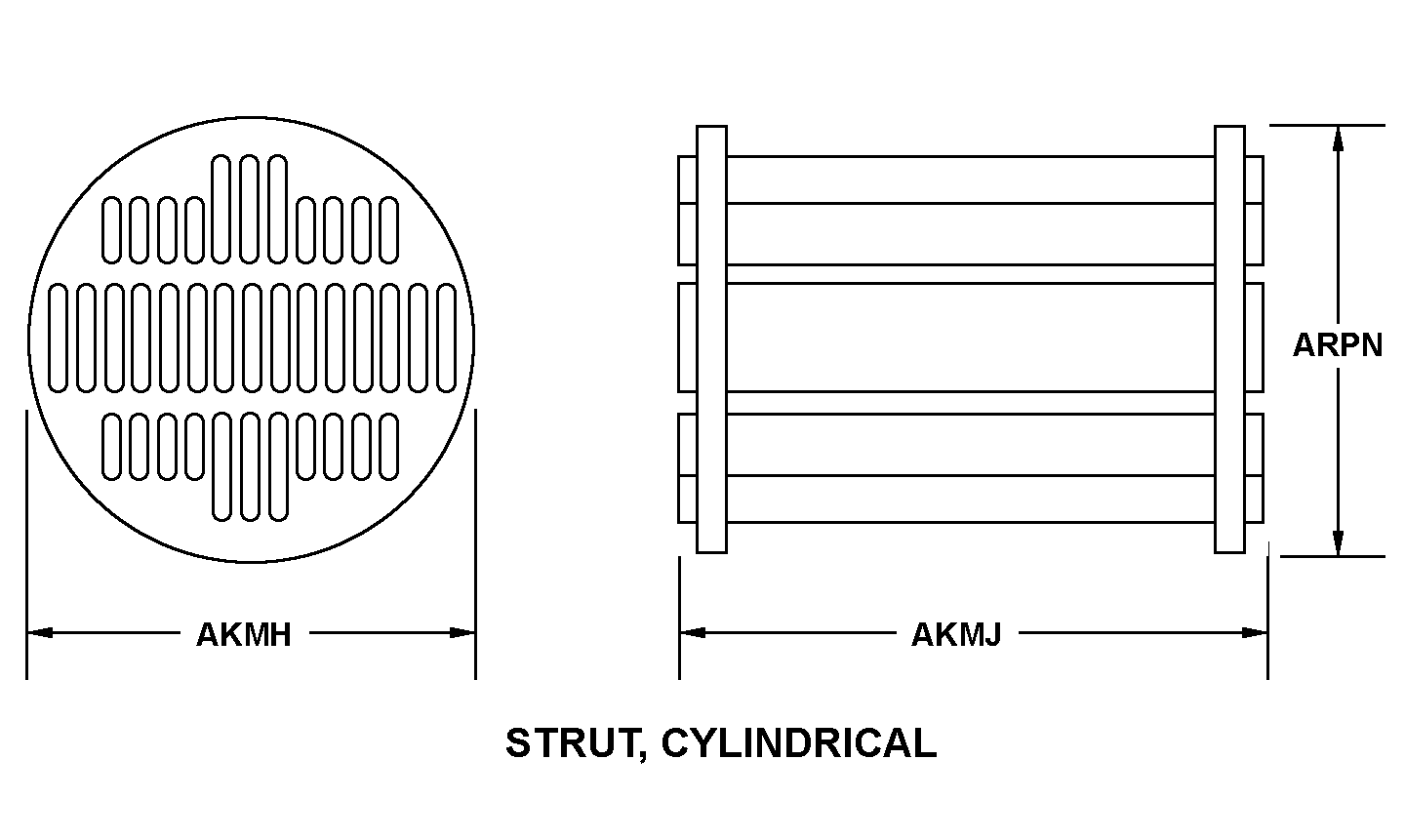

| STYLE DESIGNATOR | B2 STRUT, CYLINDRICAL |
| CORE DIAMETER | 12.120 INCHES NOMINAL |
| CORE LENGTH | 13.740 INCHES NOMINAL |
| CORE HEIGHT | 12.810 INCHES NOMINAL |
| HEAT TRANSFER METHOD | INDIRECT |
| EFFECTIVE HEAT TRANSFER SURFACE AREA | 45.8 SQUARE FEET |
| TUBE QUANTITY | 136 |
| TUBE ATTACHMENT METHOD | BRAZED BOTH ENDS |
| SPECIAL FEATURES | NONMAGNETIC; FOR FRESH WATER COOLANT ONLY |
Restrictions/Controls & Freight Information | NSN 4420-00-142-1343
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 122860 | HEAT EXCHANGER/COOLER TUBE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4420-00-142-1343
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 AY : Assembly |
