NSN 4420-00-223-7599 HH56970, 00-223-7599, 002237599
Product Details | INDUSTRIAL FLUID COOLER
4420-00-223-7599 An apparatus designed to lower the temperature of a fluid by bringing it into proximity with another fluid of lower temperature so that heat transfer is effected by conduction through the walls of separating chambers. Excludes air conditioning equipment, refrigeration equipment, and radiators.
Part Alternates: HH56970, 4420-00-223-7599, 00-223-7599, 4420002237599, 002237599
Furnace, Steam Plant, and Drying Equipment; and Nuclear Reactors | Heat Exchangers and Steam Condensers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | 01 JAN 1963 | 00-223-7599 | 04041 ( COOLER, FLUID, INDUSTRIAL ) |
Drawings & Photos | NSN 4420-00-223-7599
Cross Reference | NSN 4420-00-223-7599
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HH56970 | 50024 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE FM/ALCO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4420-00-223-7599
Technical Data | NSN 4420-00-223-7599
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL SHELL |

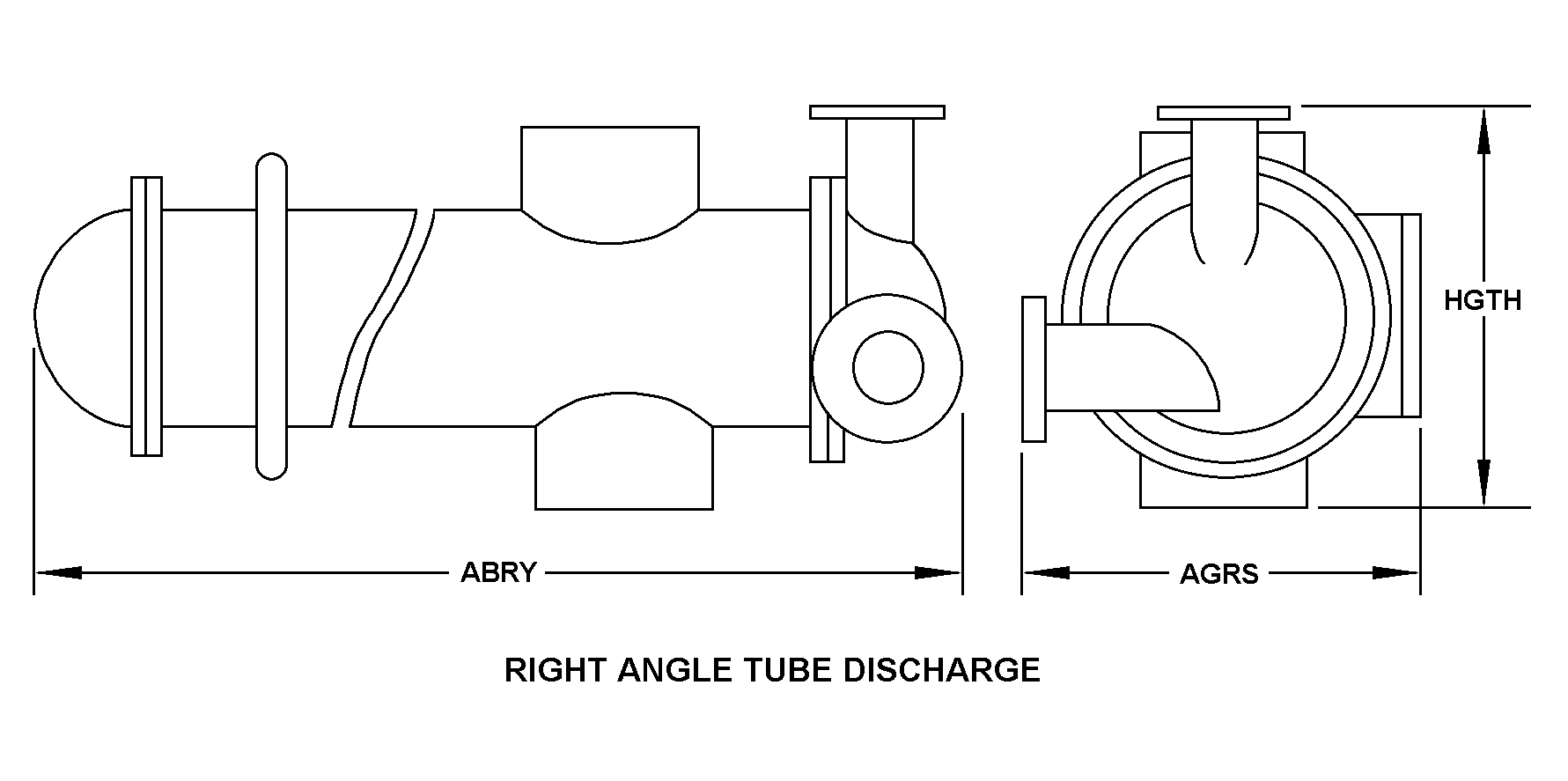

| STYLE DESIGNATOR | A13 RIGHT ANGLE TUBE DISCHARGE |
| WIDTH | 18.000 INCHES NOMINAL |
| LENGTH | 38.125 INCHES NOMINAL |
| HEIGHT | 18.000 INCHES NOMINAL |
| HEAT TRANSFER METHOD | INDIRECT |
| EFFECTIVE HEAT TRANSFER SURFACE AREA | 28.5 SQUARE FEET |
| TUBE QUANTITY | 87 |
| TUBING OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| TUBE ATTACHMENT METHOD | EXPANDED BOTH ENDS |
| MANUFACTURERS CODE | 50024 |
| DESIGN CONTROL REFERENCE | HH56970 |
Restrictions/Controls & Freight Information | NSN 4420-00-223-7599
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 000000 | NO NMFC FREIGHT DESCRIPTION |
| Less than car load rating | M | 85 |
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4420-00-223-7599
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
