NSN 4420-01-481-9929 BTAS 313S-V, BTAS313SV, 226L62562
Product Details | INDUSTRIAL FLUID COOLER SHELL
4420-01-481-9929 A cylindrical device with flanged end(s) designed to encase the CORE ASSEMBLY, FLUID COOLER of a COOLER, FLUID, INDUSTRIAL. May include inlet and outlet fluid connections. Excludes HOUSING, as modified.
Part Alternates: BTAS 313S-V, BTAS313SV, 226L62562, 226L62562M00, 226L62562-M00, 4420-01-481-9929, 01-481-9929, 4420014819929, 014819929
Furnace, Steam Plant, and Drying Equipment; and Nuclear Reactors | Heat Exchangers and Steam Condensers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | 02 FEB 2001 | 01-481-9929 | 37496 ( SHELL, FLUID COOLER, INDUSTRIAL ) |
Drawings & Photos | NSN 4420-01-481-9929
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4420-01-481-9929
Technical Data | NSN 4420-01-481-9929
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS OVERALL |

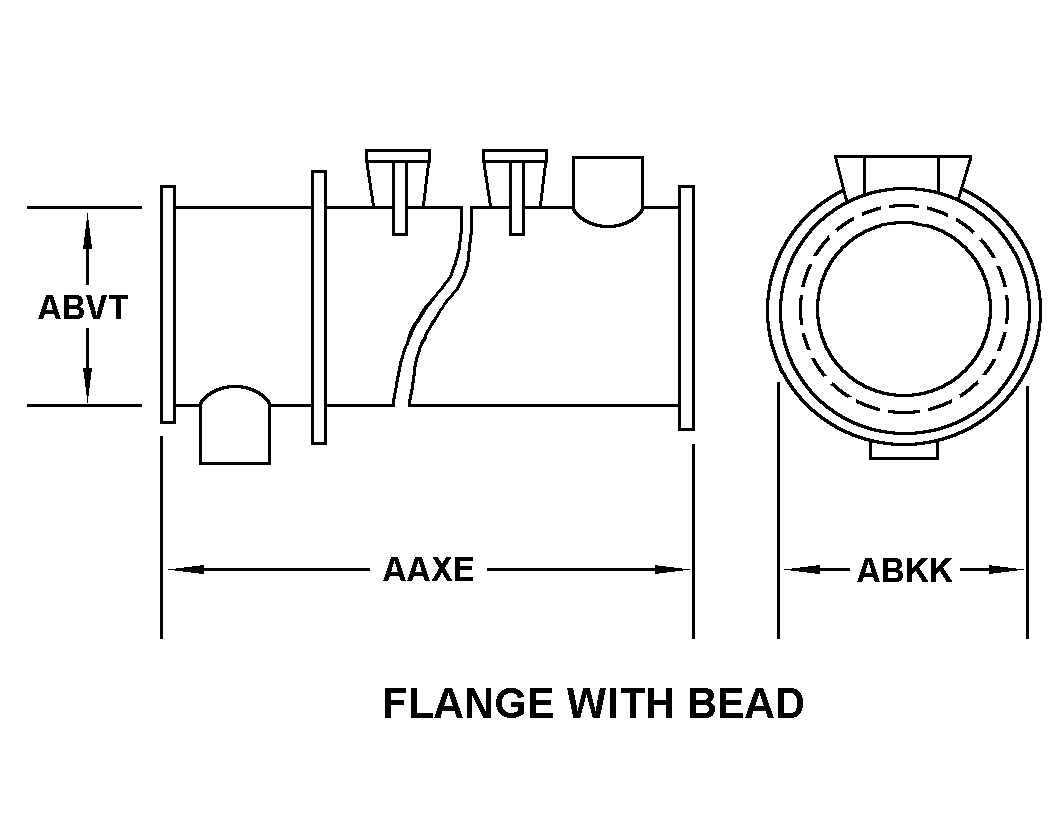

| STYLE DESIGNATOR | C4 FLANGE WITH BEAD |
| FLANGE DIAMETER | 4.625 INCHES NOMINAL |
| DIAMETER | 3.468 INCHES NOMINAL |
| LENGTH | 11.250 INCHES NOMINAL |
| SPECIAL FEATURES | NOMINAL SHELL SIZE 3 INCHES; FOR SUCTION LINE SERVICE; RUST RESISTANT WITH STAINLESS STEEL BOLTS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | DRIER SHELL |
Restrictions/Controls & Freight Information | NSN 4420-01-481-9929
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
