NSN 4420-01-545-0682 3 136 2 08 820 05, 313620882005, 01-545-0682
Product Details | INDUSTRIAL FLUID COOLER BONNET
4420-01-545-0682 An item designed to be attached to a SHELL, FLUID COOLER, INDUSTRIAL to provide direction of flow with minimum impact on tube ends and TUBE SHEET, FLUID COOLER, INDUSTRIAL and provide access to tubes without removal of piping.
Part Alternates: 3 136 2 08 820 05, 313620882005, 4420-01-545-0682, 01-545-0682, 4420015450682, 015450682
Furnace, Steam Plant, and Drying Equipment; and Nuclear Reactors | Heat Exchangers and Steam Condensers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | 31 OCT 2006 | 01-545-0682 | 37495 ( BONNET, FLUID COOLER, INDUSTRIAL ) |

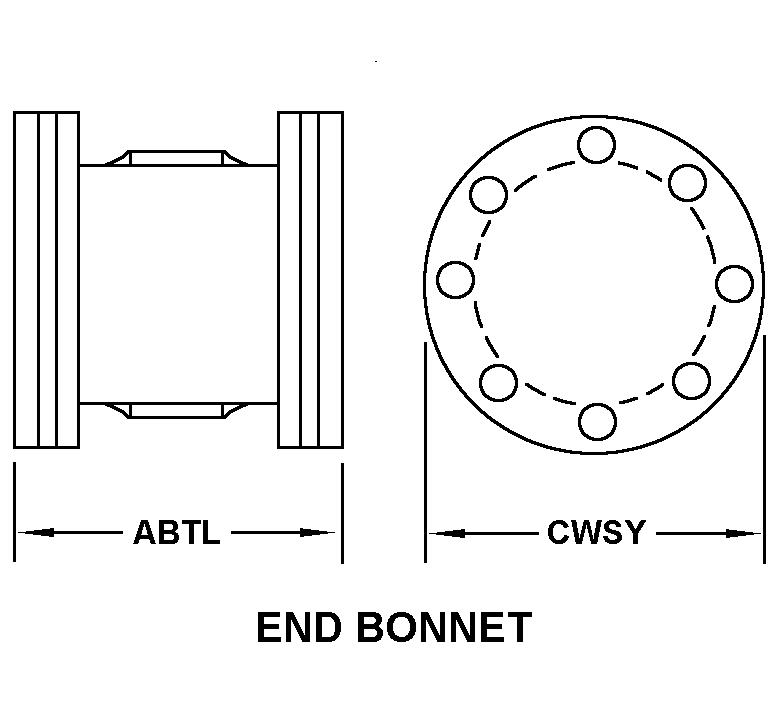

Drawings & Photos | NSN 4420-01-545-0682
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4420-01-545-0682
Technical Data | NSN 4420-01-545-0682
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| STYLE DESIGNATOR | D5 END BONNET |
| LENGTH | 3.656 INCHES NOMINAL |
| FLOW TYPE | SINGLE PASS |
Restrictions/Controls & Freight Information | NSN 4420-01-545-0682
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
