NSN 4470-00-725-4096 2ZK221, 2ZK221PCZK221E, 00-725-4096
Product Details | NUCLEAR COOLANT SYSTEM SEAL RING
4470-00-725-4096 An item designed to be seal welded to segments on components of a nuclear power plant coolant system, such as valves, demineralizers, heat exchangers, pumps, and the like, to form an efficient seal against the leakage of the primary coolant to the ambient. Excludes SEAL RING, METAL.
Part Alternates: 2ZK221, 2ZK221PCZK221E, 4470-00-725-4096, 00-725-4096, 4470007254096, 007254096
Furnace, Steam Plant, and Drying Equipment; and Nuclear Reactors | Nuclear Reactors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | 01 JAN 1963 | 00-725-4096 | 22190 ( SEAL RING, NUCLEAR COOLANT SYSTEM ) |
Drawings & Photos | NSN 4470-00-725-4096
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4470-00-725-4096
Related Products | NSN 4470-00-725-4096
Technical Data | NSN 4470-00-725-4096
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, MIL-S-18170, COMP 304-CANCELED |
| SURFACE TREATMENT | PASSIVATED |

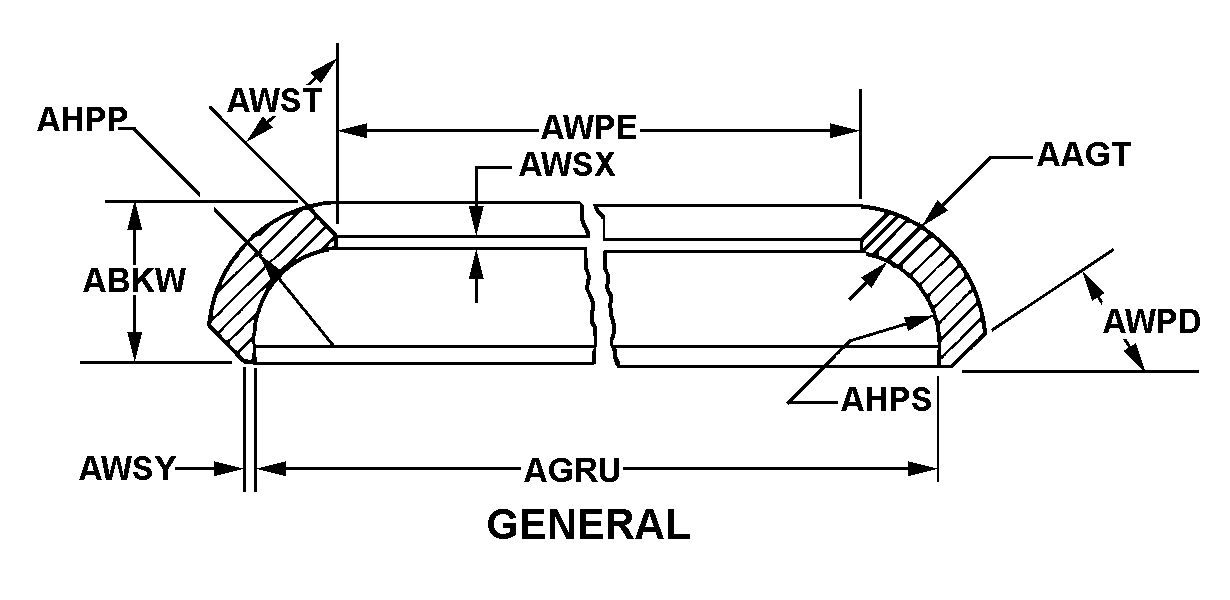

| CROSS-SECTIONAL SHAPE STYLE | 2 GENERAL |
| WALL THICKNESS | 0.093 INCHES NOMINAL |
| OVERALL HEIGHT | 0.3125 INCHES NOMINAL |
| LARGEST INSIDE DIAMETER | 2.4375 INCHES NOMINAL |
| OUTER RADIUS | 0.3125 INCHES NOMINAL |
| INNER RADIUS | 0.28125 INCHES NOMINAL |
| OUTSIDE DIAMETER SURFACE ANGLE IN DEG | 45.0 |
| SMALL INSIDE DIAMETER | 1.870 INCHES MINIMUM AND 1.880 INCHES MAXIMUM |
| UPPER INSIDE DIAMETER SURFACE ANGLE IN DEG | 45.0 |
| INSIDE FLAT SURFACE DIAMETER | 0.010 INCHES NOMINAL |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | CLEANED IN ACCORDANCE WITH MIL-C-19874 (SHIPS) |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 38056 |
| DESIGN CONTROL REFERENCE | 2ZK221 |
