NSN 4510-00-018-6094 AQUAFLUSH Z-6010, AQUAFLUSHZ6010, FLUSHBOY 404
Product Details | FLUSH VALVE
4510-00-018-6094 A manually or automatically operated device which releases a volume of water used for flushing water closets and urinals.
Part Alternates: AQUAFLUSH Z-6010, AQUAFLUSHZ6010, FLUSHBOY 404, FLUSHBOY404, R0YAL 120, R0YAL120, W100P, W-100P, 2744K13, 4510-00-018-6094, 00-018-6094, 4510000186094, 000186094
Plumbing, Heating, and Waste Disposal Equipment | Plumbing Fixtures and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 01 JAN 1961 | 00-018-6094 | 07162 ( VALVE, FLUSH ) |
Drawings & Photos | NSN 4510-00-018-6094
Demand History | NSN 4510-00-018-6094
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FLUSHBOY 404 | 2023-11-324 | 20 | DIBBS |
| R0YAL 120 | 2023-11-324 | 20 | DIBBS |
| Z-6010-YB-YC | 2023-11-324 | 20 | DIBBS |
| AQUAFLUSH Z-6010 | 2021-12-362 | 1 | DIBBS |
| FLUSHBOY 404 | 2021-12-362 | 1 | DIBBS |
| R0YAL 120 | 2021-12-362 | 1 | DIBBS |
| 4510-00-018-6094 | 2013-01-15 | 9 | DIBBS |
| 4510-00-018-6094 | 2011-07-198 | 2 | DIBBS |
| 4510-00-018-6094 | 2010-08-214 | 10 | DIBBS |
| 4510-00-018-6094 | 2009-06-181 | 1 | DIBBS |
| 4510-00-018-6094 | 2008-12-357 | 46 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4510-00-018-6094
Related Products | NSN 4510-00-018-6094
Technical Data | NSN 4510-00-018-6094
| Characteristic | Specifications |
|---|---|
| BODY STYLE | E4 FLUSH VALVE |
| BODY MATERIAL | BRASS |
| OUTSIDE SURFACE TREATMENT | CHROME-NICKEL PLATED |
| FLOW CONTROL DEVICE | STEM AND INTEGRAL DISK |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |

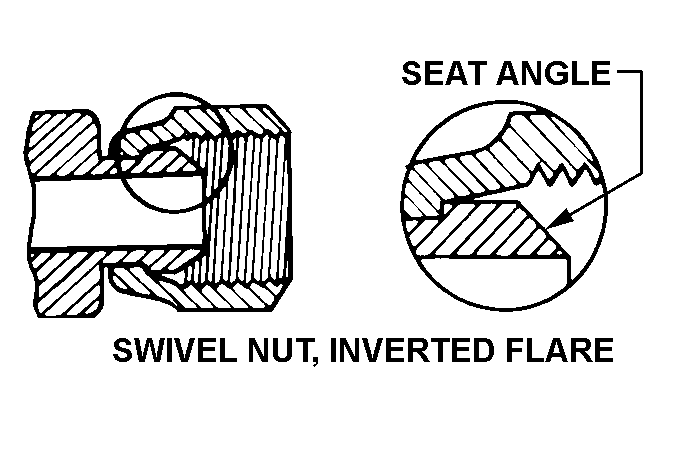

| FIRST END STYLE DESIGNATOR | G2 SWIVEL NUT, INVERTED FLARE |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.630 INCHES NOMINAL |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| FIRST END THREAD SERIES DESIGNATOR | UNEF |
| FIRST END NOMINAL THREAD SIZE | 1.625 INCHES |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | J6 PLAIN |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.250 INCHES NOMINAL |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END THREAD SERIES DESIGNATOR | UNEF |
| SECOND END NOMINAL THREAD SIZE | 1.687 INCHES |
| OPERATING MECHANISM ANGLE FROM INLET IN DEG | 90.0 |
| TEMP RATING | NOT RATED |
| USAGE DESIGN | EXPOSED PIPE |
| INLET LOCATION | LEFT SIDE |
| FLUSH TYPE | PRESSURE |
| FURNISHED ITEMS | ANGLE SUPPLY STOP AND ELBOW FLUSH CONNECTION |
Restrictions/Controls & Freight Information | NSN 4510-00-018-6094
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4510-00-018-6094
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
