NSN 4510-01-501-7538 MILF163, MIL-F-163, MILF1635MPTBRASSTYV
Product Details | DOUBLE FAUCET
4510-01-501-7538 A compression type device usually formed of metal, comprising of either a mixing valve or two or more valve-like units when attached to two or more liquid supply lines. It manually starts, stops, and requlates the flow of liquids through a single spout or hose spray attachment.
Part Alternates: MILF163, MIL-F-163, MILF1635MPTBRASSTYV, MILF1635MPTBRASSTYVI, 1100 MODEL CP OR XKCP, 1100FIG7, 1100MODELCPORXKCP, 4510-01-501-7538, 01-501-7538, 4510015017538, 015017538
Plumbing, Heating, and Waste Disposal Equipment | Plumbing Fixtures and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 15 OCT 2002 | 01-501-7538 | 08610 ( FAUCET, DOUBLE ) |

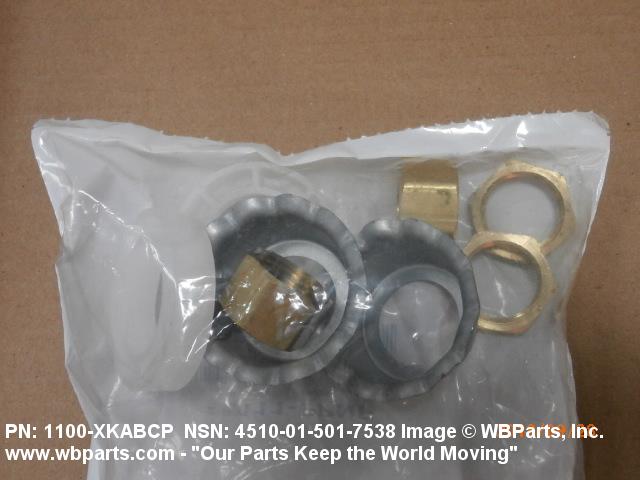

Drawings & Photos | NSN 4510-01-501-7538
Demand History | NSN 4510-01-501-7538
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4510-01-501-7538 | 2025-03-64 | 37 | DIBBS |
| 4510-01-501-7538 | 2024-06-178 | 26 | DIBBS |
| 4510-01-501-7538 | 2022-07-194 | 19 | DIBBS |
| 4510-01-501-7538 | 2021-06-164 | 1 | Saudi Arabia |
| 4510-01-501-7538 | 2020-11-328 | 1 | Saudi Arabia |
| 4510-01-501-7538 | 2018-09-256 | 2 | United States |
| 4510-01-501-7538 | 2017-03-66 | 42 | DIBBS |
| 4510-01-501-7538 | 2016-09-272 | 34 | DIBBS |
| 4510-01-501-7538 | 2016-07-192 | 6 | DIBBS |
| 4510-01-501-7538 | 2016-06-154 | 4 | DIBBS |
| 4510-01-501-7538 | 2015-06-169 | 17 | DIBBS |
| 4510-01-501-7538 | 2015-06-158 | 17 | DIBBS |
| 4510-01-501-7538 | 2015-02-33 | 8 | DIBBS |
| 4510-01-501-7538 | 2015-01-22 | 8 | DIBBS |
| 4510-01-501-7538 | 2014-06-174 | 9 | DIBBS |
| 1100 | 2014-05-129 | 1 | ZA |
| 4510-01-501-7538 | 2014-04-93 | 8 | DIBBS |
| 1100 | 2013-10-296 | 1 | |
| 4510-01-501-7538 | 2013-07-185 | 5 | DIBBS |
| 1100 | 2012-10-282 | 300 | us |
| 4510-01-501-7538 | 2012-10-277 | 8 | DIBBS |
| 4510-01-501-7538 | 2012-08-216 | 20 | DIBBS |
| 4510-01-501-7538 | 2012-06-167 | 10 | DIBBS |
| 4510-01-501-7538 | 2012-03-62 | 5 | DIBBS |
| 4510-01-501-7538 | 2012-01-07 | 1 | DIBBS |
| 4510-01-501-7538 | 2011-11-321 | 1 | DIBBS |
Cross Reference | NSN 4510-01-501-7538
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1100 MODEL CP OR XKCP | 96165 | CHICAGO FAUCET CO THE |
| 1100, FIG 7 | 96165 | CHICAGO FAUCET CO THE |
| MIL-F-163 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-163, .5 M PT, BRASS, TY-V | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MIL-F-163,.5 MPT,BRASS,TY VI | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4510-01-501-7538
Related Products | NSN 4510-01-501-7538
Technical Data | NSN 4510-01-501-7538
| Characteristic | Specifications |
|---|---|
| MOUNTING TYPE | VERTICAL PIPE |
| BODY MATERIAL | BRASS OR BRONZE |
| BODY SURFACE TREATMENT | NICKEL-CHROMIUM ALLOY |
| SURFACE FINISH | POLISHED |
| SEAT DESIGN | COMPRESSION |
| COMPRESSION SEAT TYPE | ANY ACCEPTABLE |
| SUPPLY CONNECTION TAILPIECE | NOT INCLUDED |
| SUPPLY CONNECTION TAILPIECE TYPE | STRAIGHT |
| SUPPLY CONNECTION UNION NUT | INCLUDED |
| SUPPLY CONNECTION TYPE | FEMALE THREAD |
| SUPPLY CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1/2IN-14 NPT |
| CENTER TO CENTER DISTANCE BETWEEN HOT/COLD SUPPLY CONNECTIONS | 4.000 INCHES MINIMUM AND 8.000 INCHES MAXIMUM |
| HANDLE TYPE | LEVER |
| HANDLE MATERIAL | BRASS OR BRONZE |
| HANDLE SURFACE TREATMENT | NICKEL-CHROMIUM ALLOY |
| HANDLE SURFACE FINISH | POLISHED |
| SWING SPOUT | PROVIDED |
| DOUBLE JOINTED SWING SPOUT | NOT PROVIDED |
| GOOSENECK SPOUT | NOT PROVIDED |
| PAIL HOOK | NOT PROVIDED |
| SPOUT HOSE CONNECTION | PROVIDED |
| SPOUT HOSE CONNECTION TYPE | THREADED |
| SPOUT TIP TYPE | SPRAY |
| SOAP HOLDER | NOT INCLUDED |
| FIXTURE CLAMP-ON DEVICE | NOT INCLUDED |
| HOSE/SPRAY | NOT INCLUDED |
| SEPARATE DRINKING WATER CONNECTION | NOT PROVIDED |
| MARKING/SYMBOL | HOT - COLD MARKED ON EACH HANDLE |
| SPECIAL FEATURES | 8 TO 14 INCH MIN LENGTH OF SWINGSPOUT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | FAUCET,COMBINATION,GALLEY SINK |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-163 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-163,.5 MPT,BRASS,TY VI |
Restrictions/Controls & Freight Information | NSN 4510-01-501-7538
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 158400 | PLUMBER'S GOODS:FAUCETS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4510-01-501-7538
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
