NSN 4520-01-077-9740 B936228, KH90093365524V, KH900-933655-24V
Product Details | STEAM-HOT WATER CONVECTION HEATER
4520-01-077-9740 A heat transferring unit, inclosed in a cabinet, designed to warm a stream of air by convection as it circulates over the heating elements rather than by direct radiation. Excludes RADIATOR, HEATING.
Part Alternates: B936228, KH90093365524V, KH900-933655-24V, 933655, 933655 24V, 93365524V, 933655-24V, 4520-01-077-9740, 01-077-9740, 4520010779740, 010779740
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 05 JUN 1979 | 01-077-9740 | 16506 ( HEATER, CONVECTION, STEAM-HOT WATER ) |

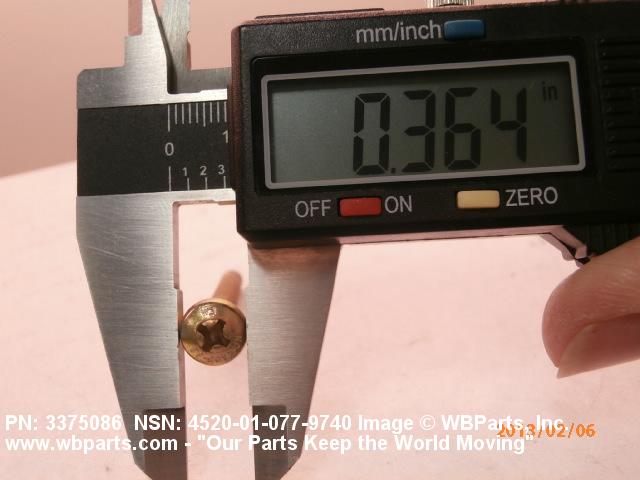

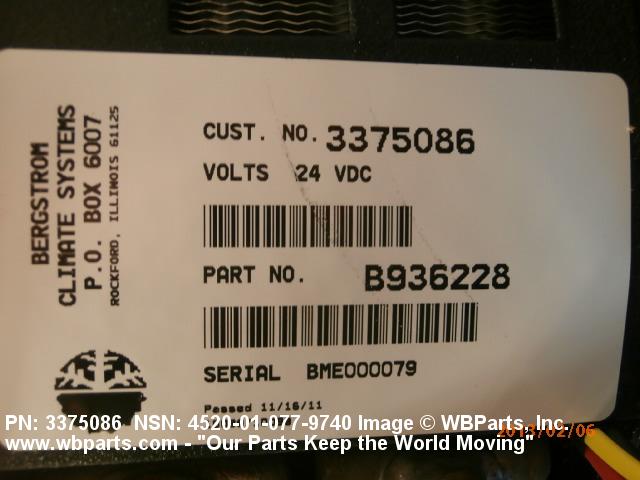

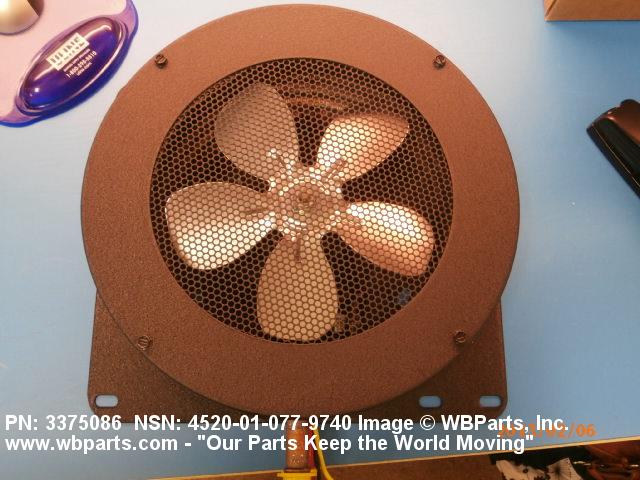

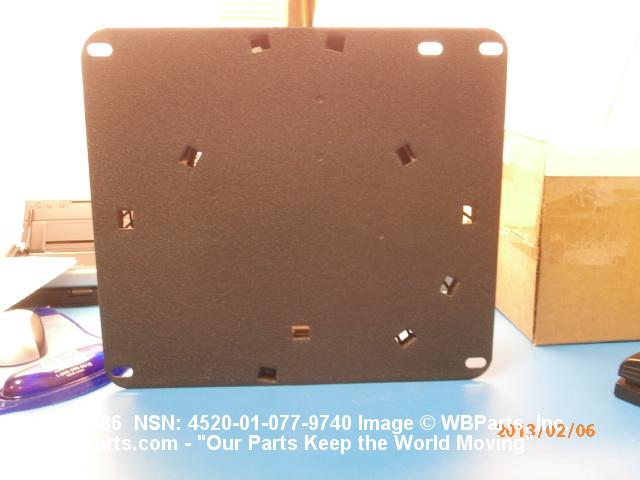

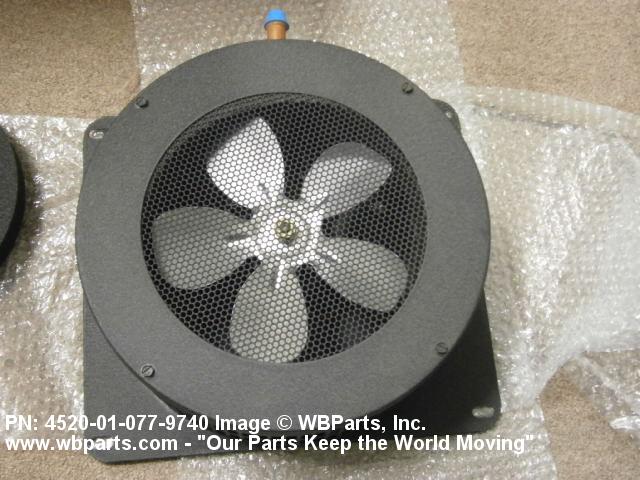

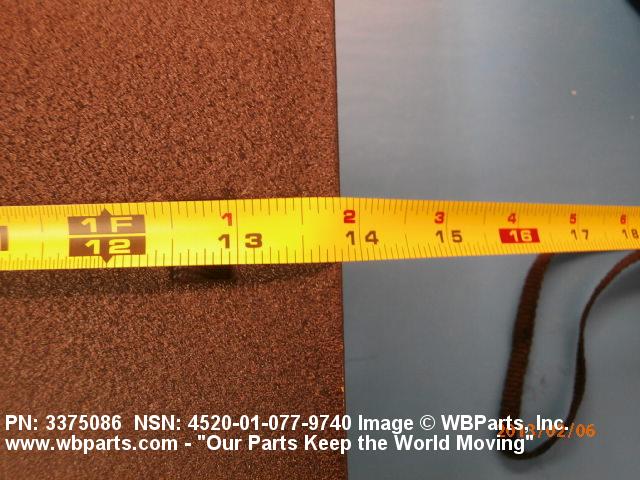

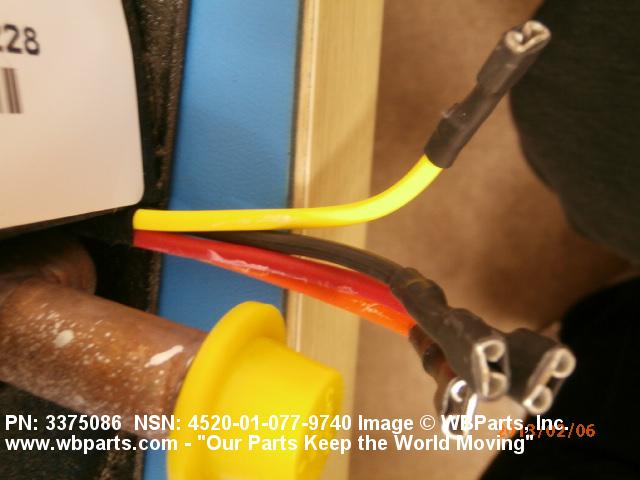

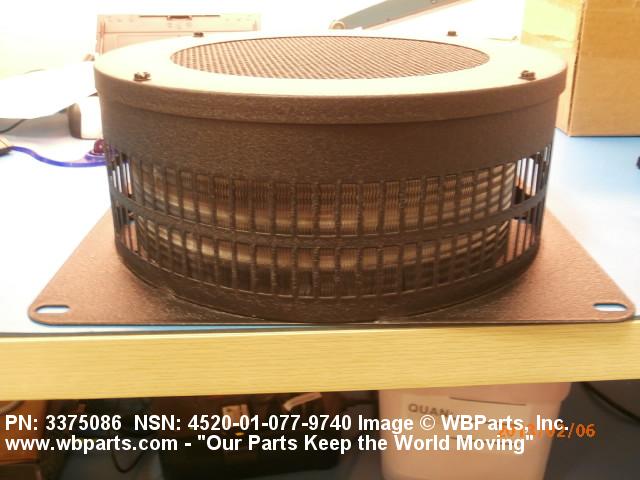

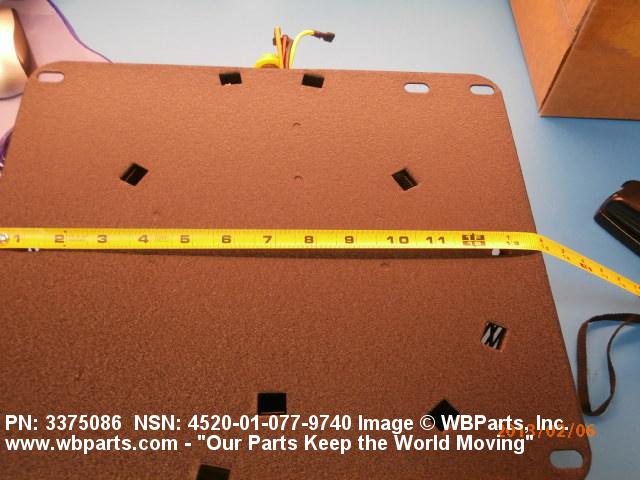

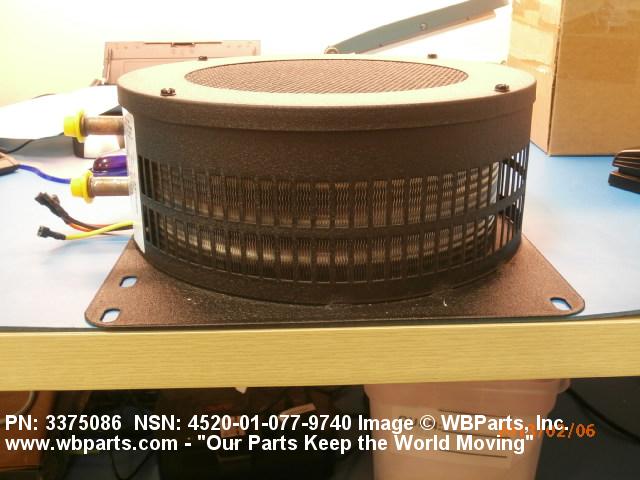

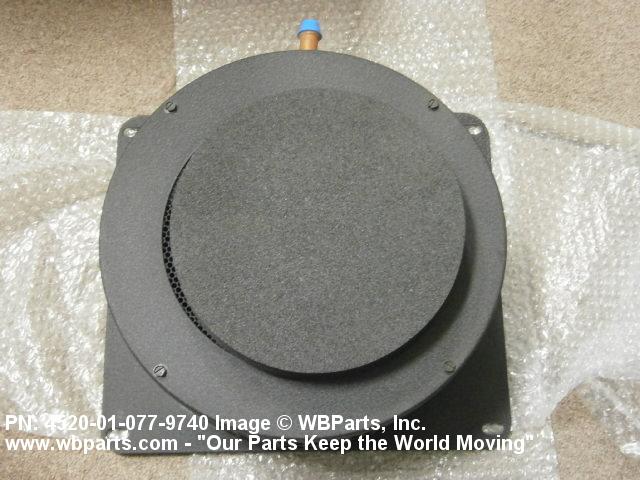

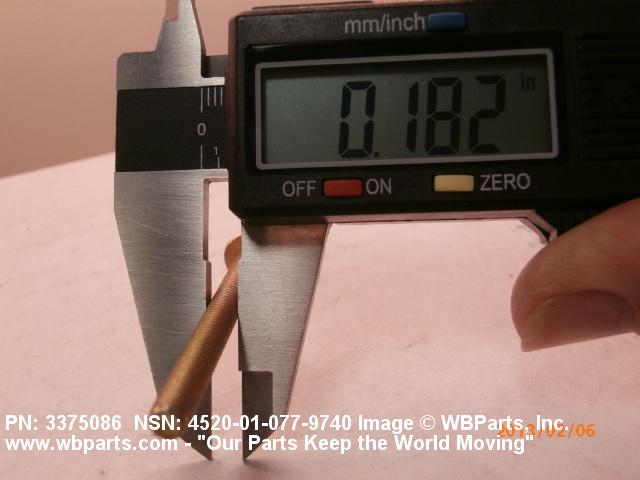

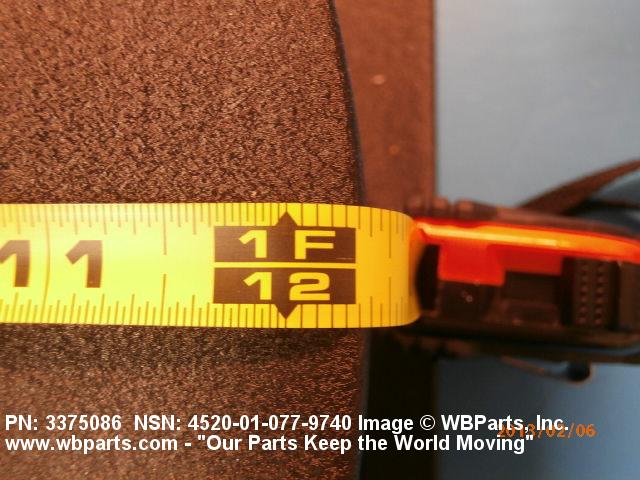

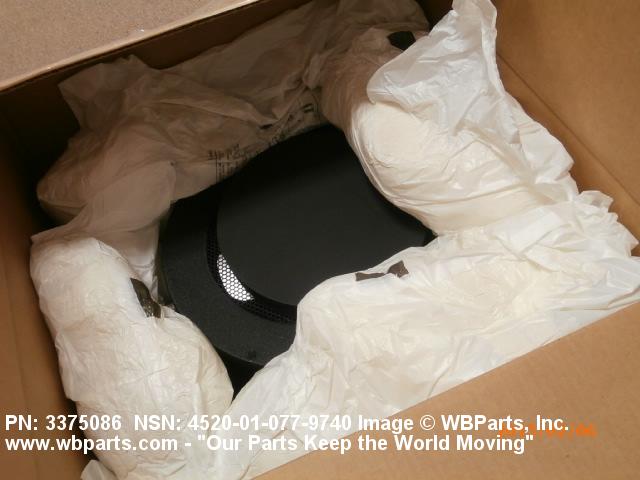

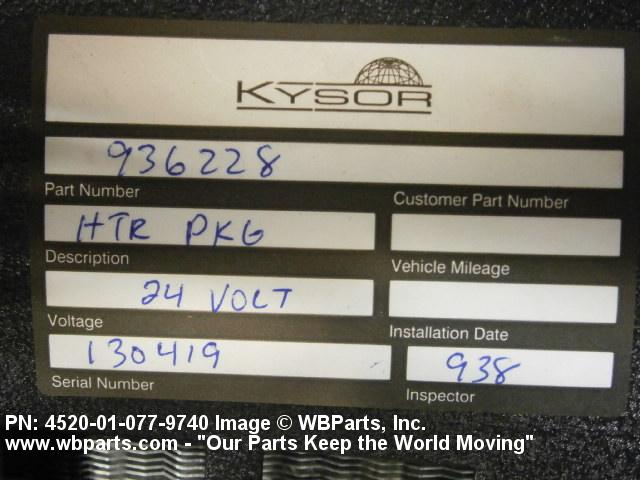

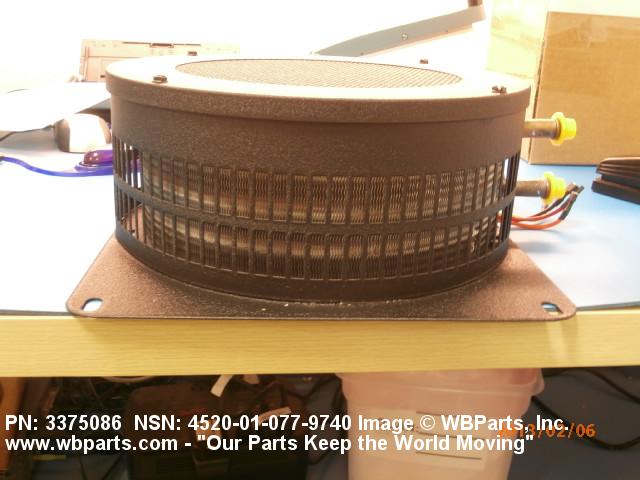

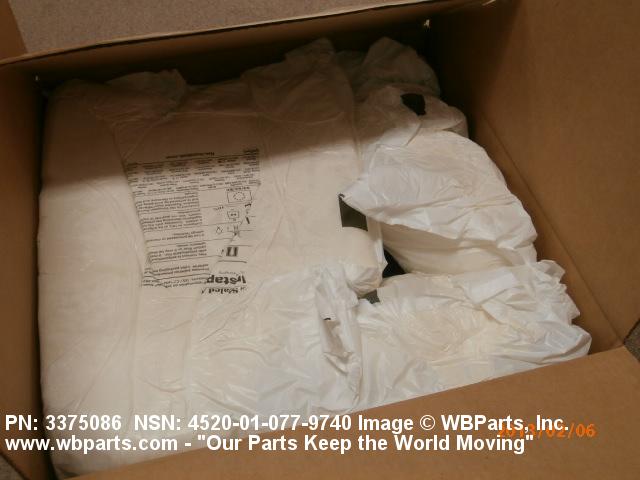

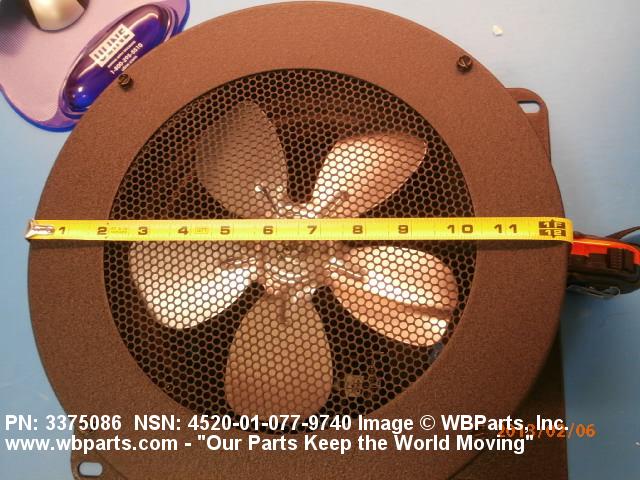

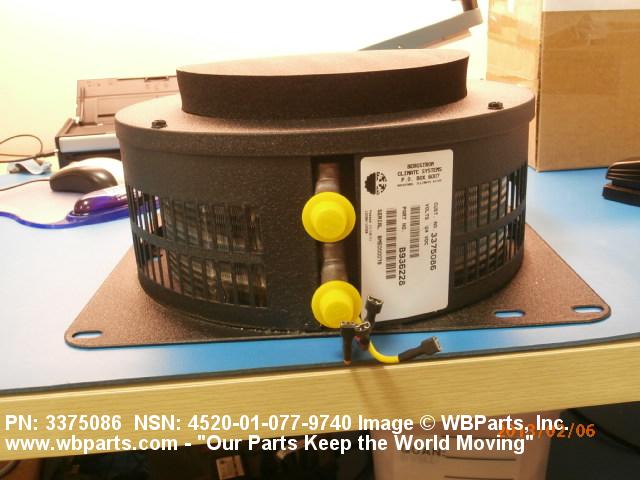

Drawings & Photos | NSN 4520-01-077-9740
Demand History | NSN 4520-01-077-9740
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4520-01-077-9740 | 2019-02-43 | 2 | US |
| 4520-01-077-9740 | 2017-01-10 | 21 | MANUAL |
| 4520-01-077-9740 | 2013-01-08 | 1 | United States |
| 4520-01-077-9740 | 2012-02-52 | 1 | United States |
| 4520-01-077-9740 | 2012-01-04 | 1 | United States |
| 4520-01-077-9740 | 2010-06-167 | 1 | DIBBS |
Cross Reference | NSN 4520-01-077-9740
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-01-077-9740
Technical Data | NSN 4520-01-077-9740
| Characteristic | Specifications |
|---|---|
| HEAT DELIVERY RATE | 2750.0 BRITISH THERMAL UNIT |
| HEATING ELEMENT TYPE | HOT WATER COIL |
| HEAT MEDIUM TYPE | HOT WATER |
| MAXIMUM PRESSURE LIMIT | 32.0 POUNDS PER SQUARE INCH GAGE |
| MOUNTING TYPE | WALL RECESSED, ROOM INTERIOR |
| HEIGHT | 4.800 INCHES NOMINAL |
| WIDTH | 13.750 INCHES NOMINAL |
| DEPTH | 12.200 INCHES NOMINAL |
| DIAMETER | 12.400 INCHES NOMINAL |
| HEAT OUTLET QUANTITY | 1 |
| HEAT DELIVERY DIRECTION | HORIZONTAL |
| HEAT DISCHARGE OUTLET TYPE | ADJUSTABLE |
| HEAT DIRECTING DEVICE | FIXED LOUVER |
| OPERATING CONTROL TYPE | THERMOSTATIC |
Restrictions/Controls & Freight Information | NSN 4520-01-077-9740
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 026520 | HEATERS WATER SUB2 |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XF | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4520-01-077-9740
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
