NSN 4520-01-135-2587 8RT816509, 8RT8-16509, 01-135-2587
Product Details | AIR CONDITIONING-HEATING TEE
4520-01-135-2587 A fitting having a branch or branches which are fixed at 90 degrees (1.5708 radians) to the run, It may be reducing, straight or conical type; and is used as a junction at the intersection of air conditioning-heating flue pipes or fittings.
Part Alternates: 8RT816509, 8RT8-16509, 4520-01-135-2587, 01-135-2587, 4520011352587, 011352587
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 20 JUL 1982 | 01-135-2587 | 15640 ( TEE, AIR CONDITIONING-HEATING ) |

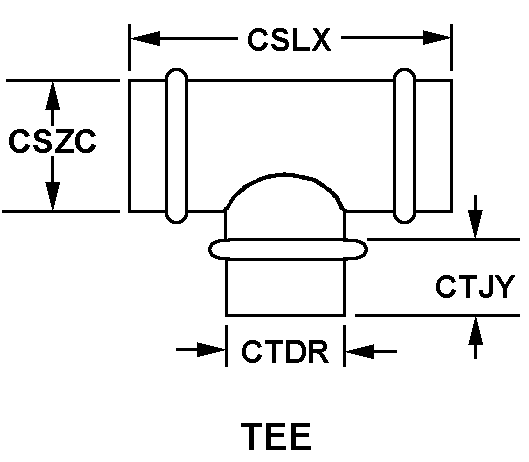

Drawings & Photos | NSN 4520-01-135-2587
Cross Reference | NSN 4520-01-135-2587
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8RT8-16509 | 73092 | INTERPACE CORP HART AND COOLEY DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4520-01-135-2587
Related Products | NSN 4520-01-135-2587
Technical Data | NSN 4520-01-135-2587
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| SHEET METAL GAGE SIZE | 20 |
| STYLE DESIGNATOR | D1 TEE |
| FITTING OVERALL LENGTH | ANY ACCEPTABLE |
| MAIN TRUNK INLET DIAMETER | 8.000 INCHES NOMINAL |
| FIRST BRANCH DIAMETER | 8.000 INCHES NOMINAL |
| ATTACHMENT END LENGTH | 2.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4520-01-135-2587
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 107120 | TEES/ZEES NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 574 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4520-01-135-2587
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
