NSN 4520-01-281-1453 012811453
Product Details | NONIM ELECTRICAL HEATING ELEMENT
4520-01-281-1453 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated.2042540000041300000441000004520000000
Part Alternates: 012811453
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 17 JUN 1988 | 01-281-1453 | 29427 ( HEATING ELEMENT, ELECTRICAL, NONIMMERSION TYPE ) |

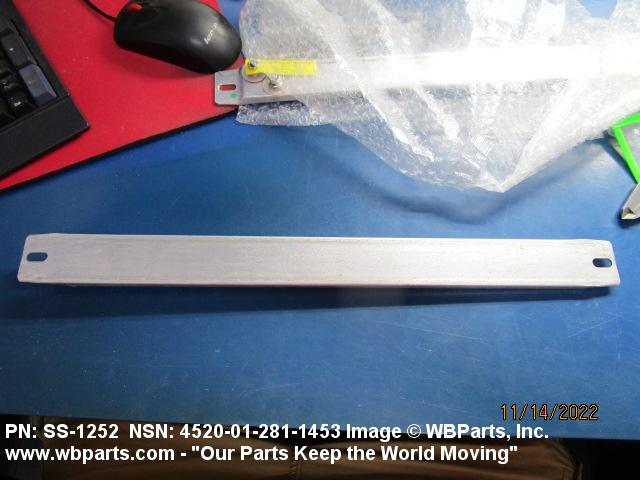

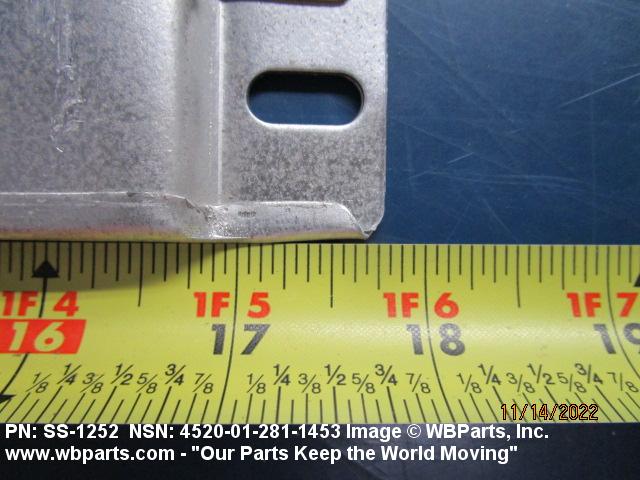

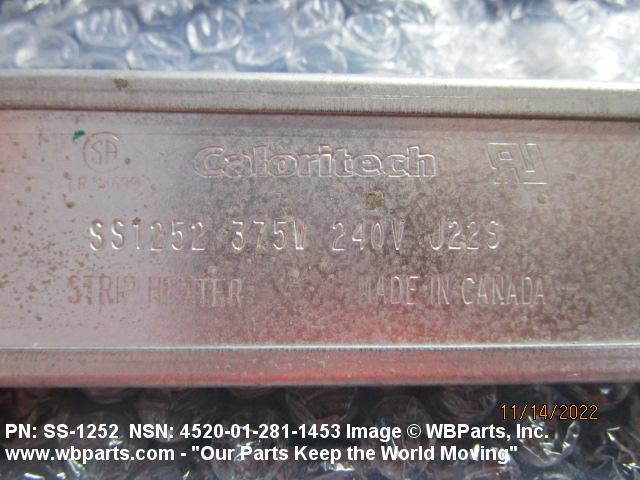

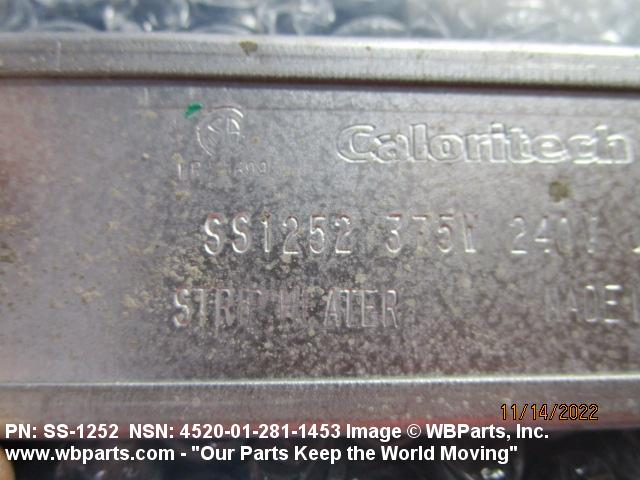

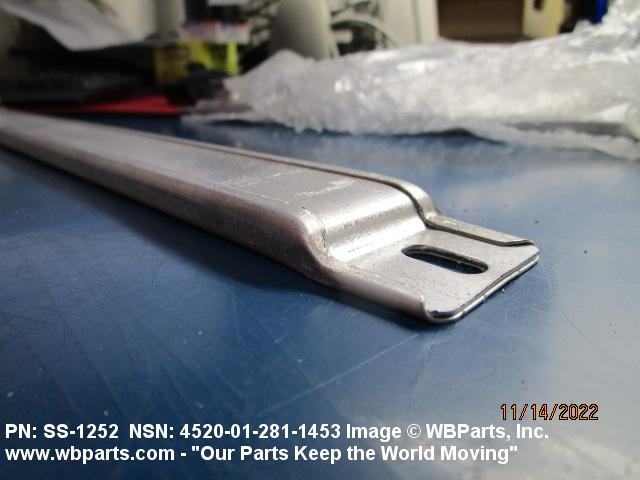

Drawings & Photos | NSN 4520-01-281-1453
Demand History | NSN 4520-01-281-1453
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4520-01-281-1453 | 2023-09-250 | 12 | United States |
| 58A115838P1 | 2023-09-249 | 12 | us |
| 4520-01-281-1453 | 2023-06-167 | 24 | United States |
| 4520-01-281-1453 | 2023-06-165 | 24 | United States |
| 4520-01-281-1453 | 2022-09-259 | 24 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4520-01-281-1453
Related Products | NSN 4520-01-281-1453
Technical Data | NSN 4520-01-281-1453
| Characteristic | Specifications |
|---|---|
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| THREAD SERIES DESIGNATOR | UNF STUD |
| FREQUENCY IN HERTZ | 60.0 |
| MOUNTING METHOD STYLE | SLOT OR HOLE TYPE MOUNTING FACILITY |
| BODY STYLE | STRIP ELEMENT |
| TERMINAL QUANTITY | 2 |
| OVERALL LENGTH | 17.750 INCHES NOMINAL |

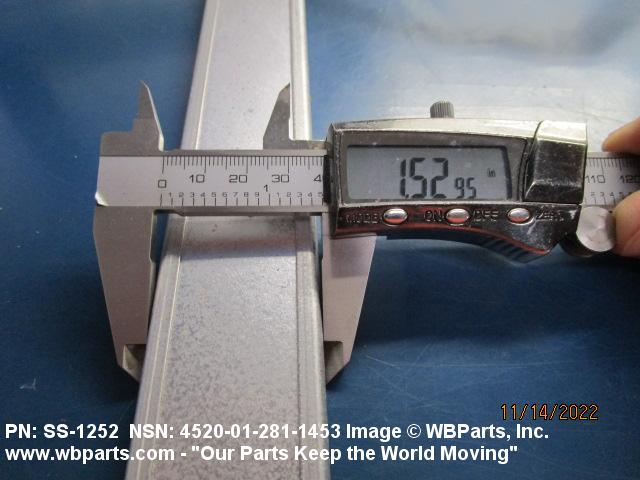

| WIDTH | 1.500 INCHES NOMINAL |
| WATT DENSITY RATING | 7.3 PER SQUARE INCH SINGLE VOLTAGE |
| NOMINAL THREAD SIZE | 0.190 INCHES STUD |
| EFFECTIVE HEATING LENGTH | 13.750 INCHES NOMINAL |
| HOLE OR SLOT QUANTITY | 2 |
| MOUNTING FACILITY WIDTH | 0.625 INCHES NOMINAL |
| ELEMENT QUANTITY | 1 |
| MOUNTING FACILITY LENGTH | 0.281 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 16.875 INCHES NOMINAL |
| THREAD QUANTITY | 32.0 PER INCH STUD |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 240.0 AC SINGLE VOLTAGE |

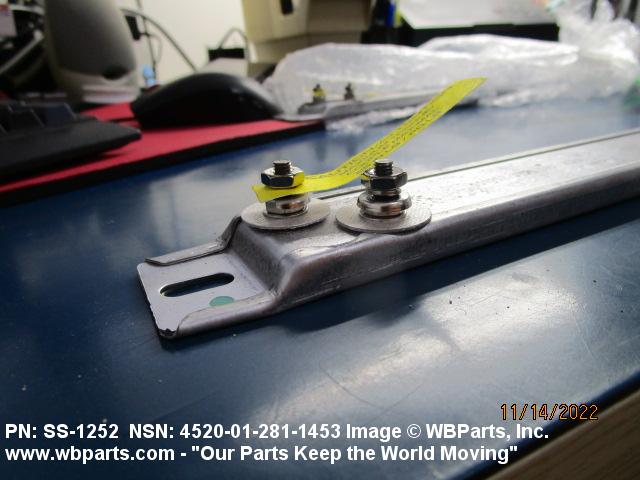

| TERMINAL ARRANGEMENT STYLE | OFFSET OR STAGGERED AT ONE END |
| LENGTH | 16.000 INCHES NOMINAL |
| MAXIMUM WATTAGE RATING IN WATTS | 375.0 SINGLE VOLTAGE |
| SPECIAL FEATURES | 1000.0 DEG.F MAX |
| HEAT QUANTITY | 1 |
| MATERIAL | STEEL SHEATH |
| PHASE | SINGLE SINGLE VOLTAGE |

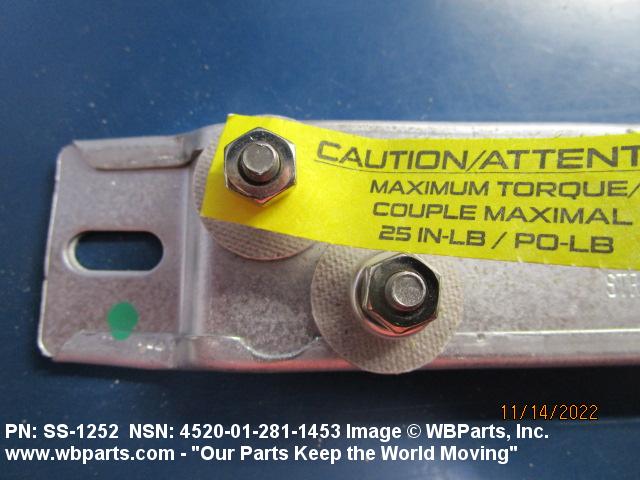

| ELEMENT CONNECTION STYLE | STUD TYPE |
| TERMINAL LENGTH | 0.750 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4520-01-281-1453
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 026040 | ELEMENTS IMMERSION HEATING |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4520-01-281-1453
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
