NSN 4520-01-323-2056 KQ3T20008M2, KQ-3-T2-0008-M2, KQ-3T2-0008-M2
Product Details | IMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-323-2056 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and a sheath. It is designed to transform electrical current into heat while immersed in a liquid to be heated or in contact with materials to be melted. It may include an automatic control to regulate the amount of heat generated.2042590000041300045Refrigeration and Air Conditioning Components44100018Industrial Boilers45200033Space and Water Heating Equipment
Part Alternates: KQ3T20008M2, KQ-3-T2-0008-M2, KQ-3T2-0008-M2, 4520-01-323-2056, 01-323-2056, 4520013232056, 013232056
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 23 JUL 1990 | 01-323-2056 | 11327 ( HEATING ELEMENT, ELECTRICAL, IMMERSION TYPE ) |
Drawings & Photos | NSN 4520-01-323-2056
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-01-323-2056
Technical Data | NSN 4520-01-323-2056
| Characteristic | Specifications |
|---|---|

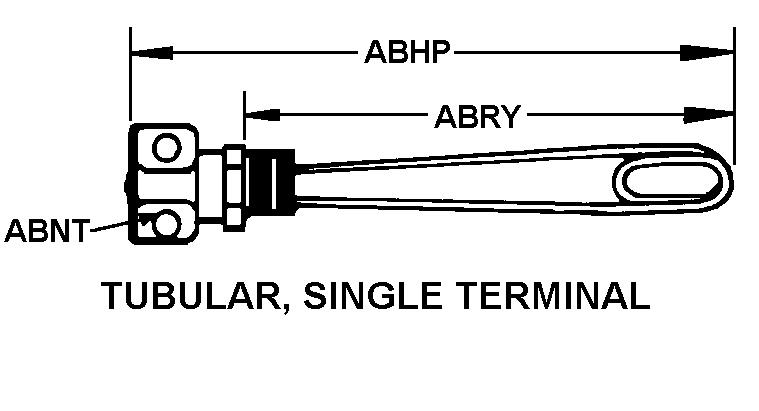

| BODY STYLE | 61 TUBULAR, SINGLE TERMINAL |
| OVERALL LENGTH | 25.063 INCHES NOMINAL |
| CONDUIT OPENING SIZE | 1.500 INCHES NOMINAL |
| LENGTH | 19.000 INCHES NOMINAL |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| MATERIAL | STEEL SHEATH |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 480.0 AC SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | THREE SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | 3000.0 SINGLE VOLTAGE |
| WATT DENSITY RATING | 21.0 PER SQUARE INCH SINGLE VOLTAGE |
| EFFECTIVE HEATING LENGTH | 17.500 INCHES NOMINAL |
| ELEMENT QUANTITY | 3 |
| HEAT QUANTITY | 3 |
| ELEMENT CONNECTION STYLE | 4 STUD TYPE |
| TERMINAL QUANTITY | 6 |
| TERMINAL LENGTH | ANY ACCEPTABLE |
| TERMINAL BOX ENVIRONMENTAL PROTECTION | EXPLOSION RESISTANT AND MOISTURE RESISTANT |
| MOUNTING METHOD STYLE | 9 SCREW PLUG OR BUSHING TYPE MOUNTING FACILITY |
| MOUNTING FACILITY LENGTH | 0.750 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | NPT MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 2.500 INCHES MOUNTING FACILITY |
| THREAD QUANTITY | 8 PER INCH MOUNTING FACILITY |
| SPECIAL FEATURES | THERMOSTAT INCLUDED |
Restrictions/Controls & Freight Information | NSN 4520-01-323-2056
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 026040 | ELEMENTS IMMERSION HEATING |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4520-01-323-2056
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
