NSN 4520-01-407-3679 014073679
Product Details | NONIM ELECTRICAL HEATING ELEMENT
4520-01-407-3679 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated.2042540000041300000441000004520000000
Part Alternates: 014073679
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 26 JAN 1995 | 01-407-3679 | 29427 ( HEATING ELEMENT, ELECTRICAL, NONIMMERSION TYPE ) |

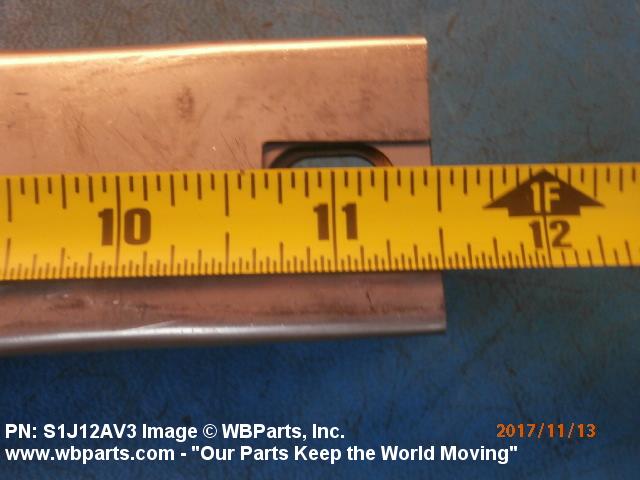

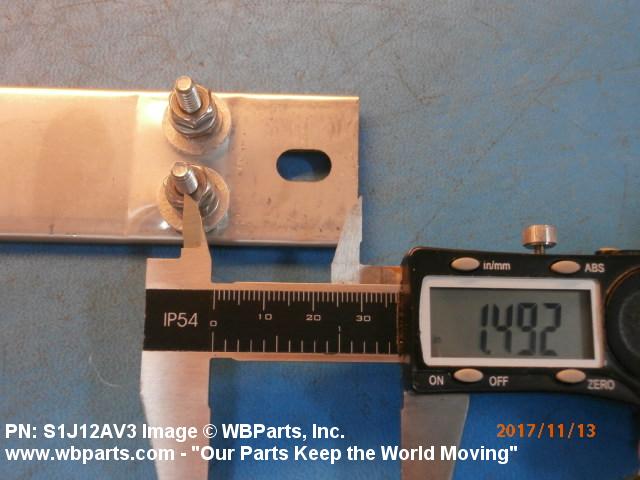

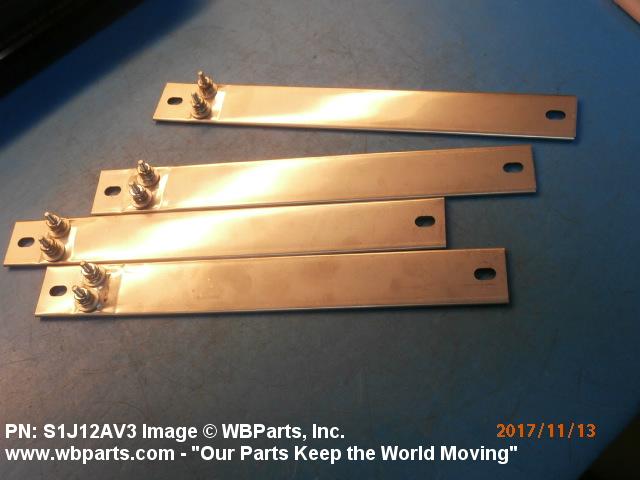

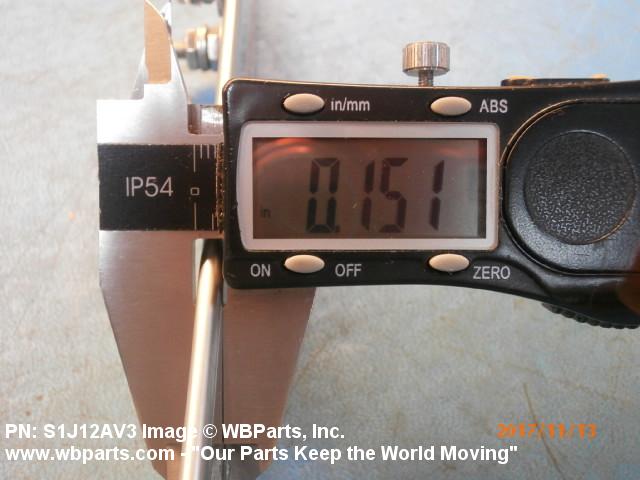

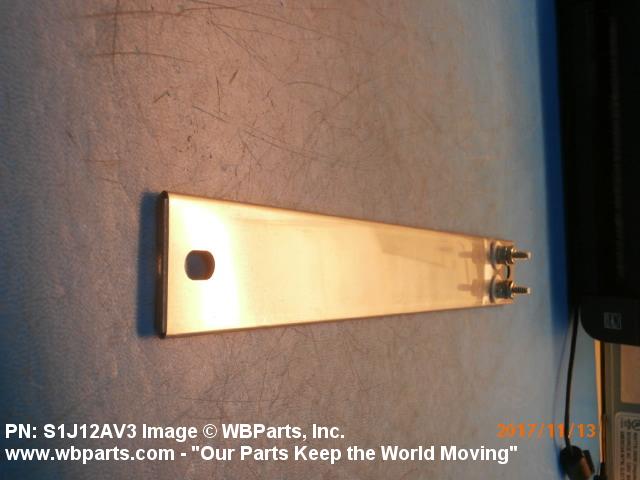

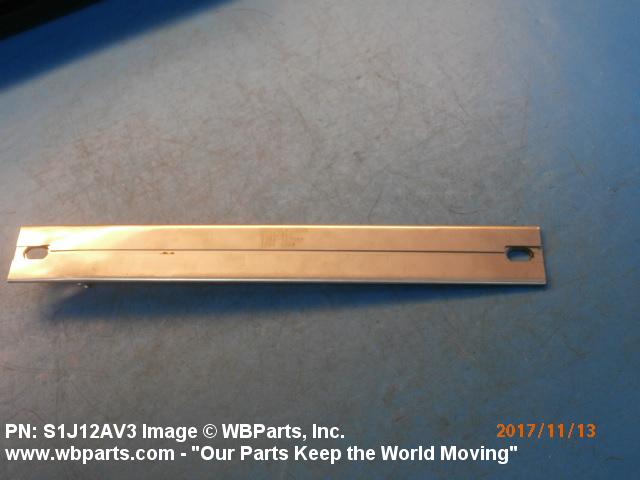

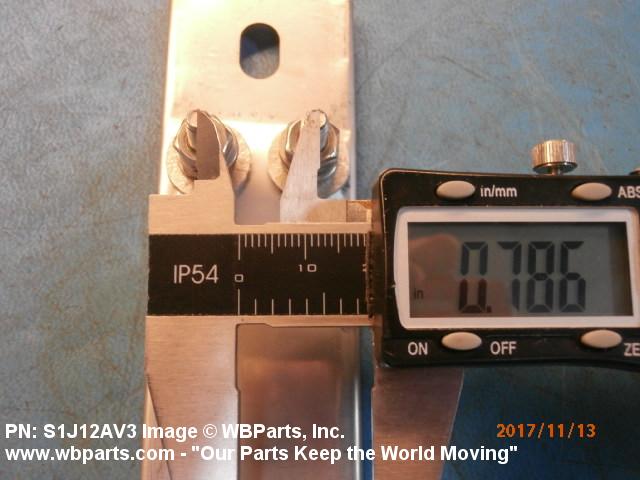

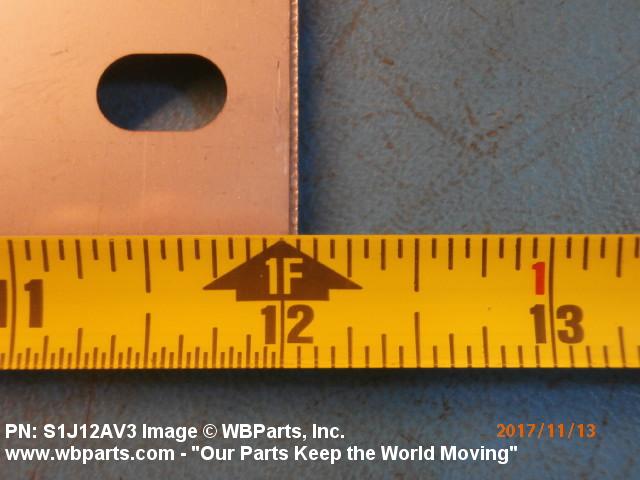

Drawings & Photos | NSN 4520-01-407-3679
Demand History | NSN 4520-01-407-3679
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| S1J12AV3 | 2017-10-300 | 4 | United States |
| 62069442 | 2017-10-291 | 4 | United States |
| 4520-01-407-3679 | 2015-08-221 | 18 | DIBBS |
| 4520-01-407-3679 | 2014-08-224 | 9 | DIBBS |
| 4520-01-407-3679 | 2014-07-212 | 1 | DIBBS |
| 4520-01-407-3679 | 2014-02-55 | 1 | DIBBS |
| 4520-01-407-3679 | 2012-04-102 | 2 | DIBBS |
Cross Reference | NSN 4520-01-407-3679
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4520-01-407-3679
Related Products | NSN 4520-01-407-3679
Technical Data | NSN 4520-01-407-3679
| Characteristic | Specifications |
|---|---|
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| FREQUENCY IN HERTZ | 60.0 |
| MOUNTING METHOD STYLE | SLOT OR HOLE TYPE MOUNTING FACILITY |

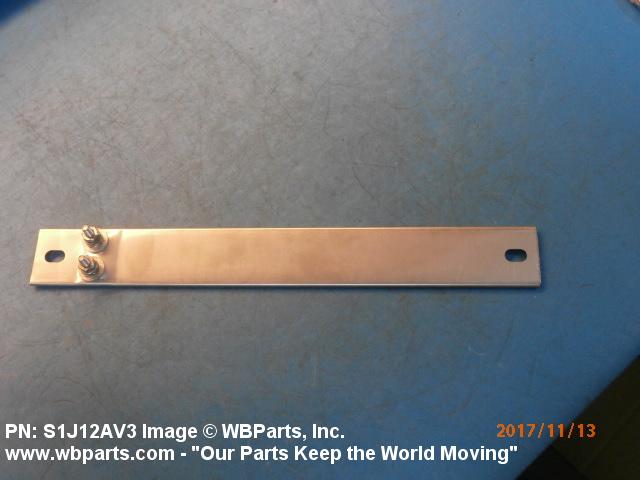

| BODY STYLE | STRIP ELEMENT |
| TERMINAL QUANTITY | 2 |

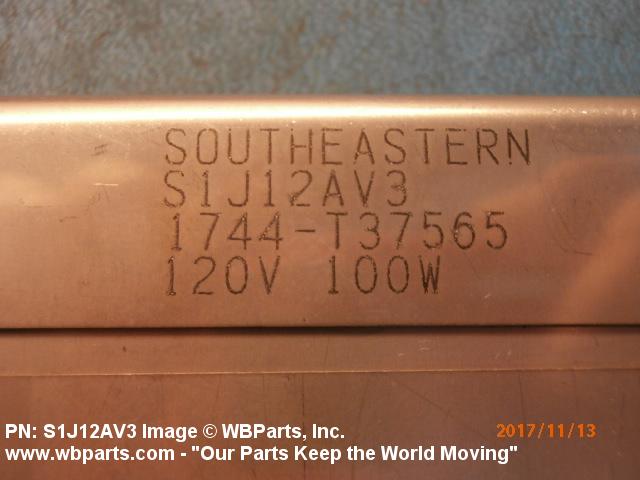

| VOLTAGE IN VOLTS AND CURRENT TYPE | 120.0 AC SINGLE VOLTAGE |

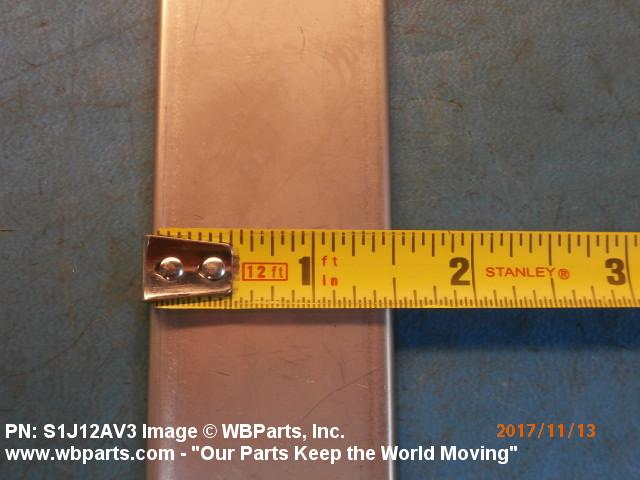

| WIDTH | 1.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 11.000 INCHES NOMINAL |
| WATT DENSITY RATING | 7.6 PER SQUARE INCH SINGLE VOLTAGE |
| HOLE OR SLOT QUANTITY | 2 |

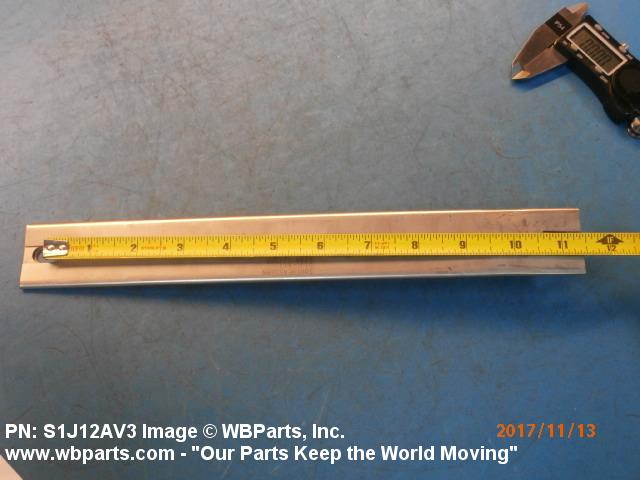

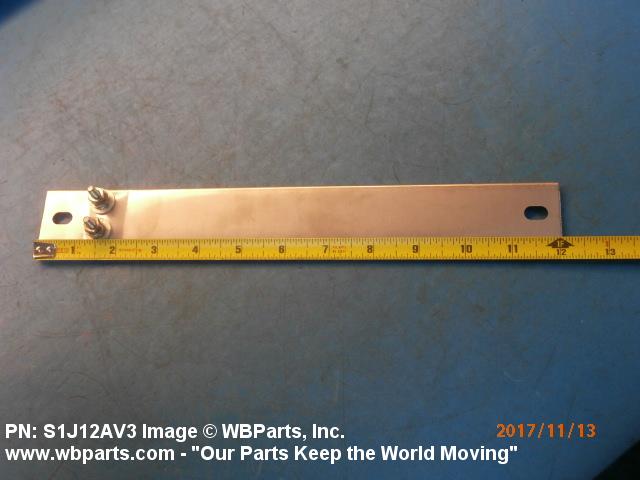

| OVERALL LENGTH | 12.000 INCHES NOMINAL |
| ELEMENT QUANTITY | 1 |
| LENGTH | 10.500 INCHES NOMINAL |
| MAXIMUM WATTAGE RATING IN WATTS | 100.0 SINGLE VOLTAGE |
| MATERIAL | STEEL COMP 304 SHEATH |
| TERMINAL LENGTH | 0.559 INCHES NOMINAL |

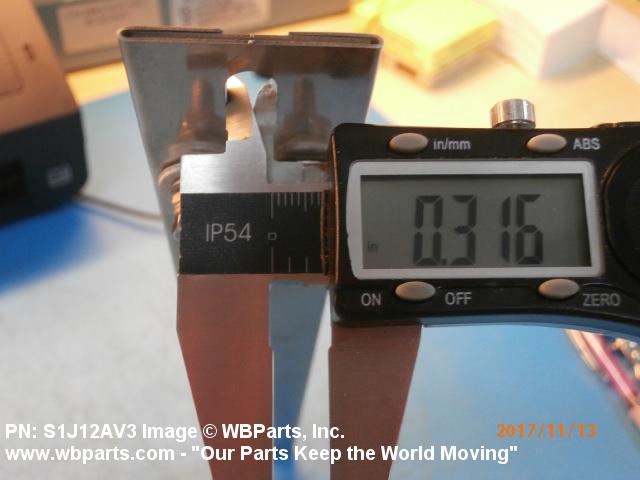

| MOUNTING FACILITY WIDTH | 0.312 INCHES NOMINAL |

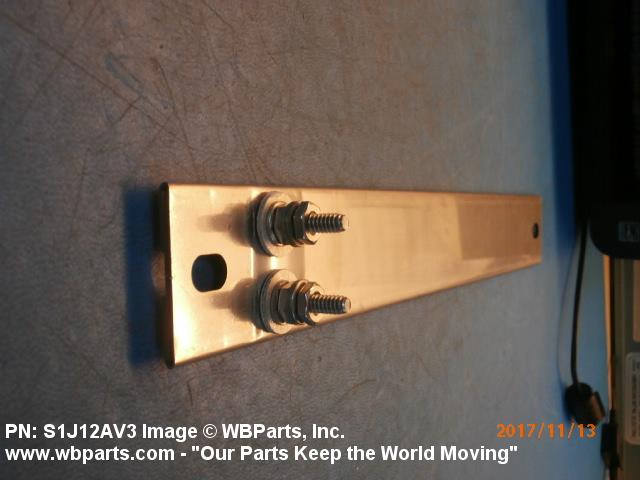

| SPECIAL FEATURES | TERMINAL STUDS 0.190-24 UNC-2A |
| END ITEM IDENTIFICATION | WEAPONS SYSTEM, OSPREY CLASS MHC |
| HEAT QUANTITY | 1 |
| PHASE | SINGLE SINGLE VOLTAGE |
| TERMINAL ARRANGEMENT STYLE | PARALLEL AT ONE END EXCEPT ON 3/4 AND 1 INCH WIDTH |
| ELEMENT CONNECTION STYLE | STUD TYPE |
| MOUNTING FACILITY LENGTH | 0.500 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4520-01-407-3679
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 026520 | HEATERS WATER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | E | Engineer supplies, other than those listed under code B. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4520-01-407-3679
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
