NSN 4520-01-433-7129 01-433-7129, 014337129
Product Details | NONIMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-433-7129 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated.2042540000041300000441000004520000000
Part Alternates: 4520-01-433-7129, 01-433-7129, 4520014337129, 014337129
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 01-433-7129 | 29427 ( HEATING ELEMENT, ELECTRICAL, NONIMMERSION TYPE ) |
Drawings & Photos | NSN 4520-01-433-7129
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-01-433-7129
Technical Data | NSN 4520-01-433-7129
| Characteristic | Specifications |
|---|---|

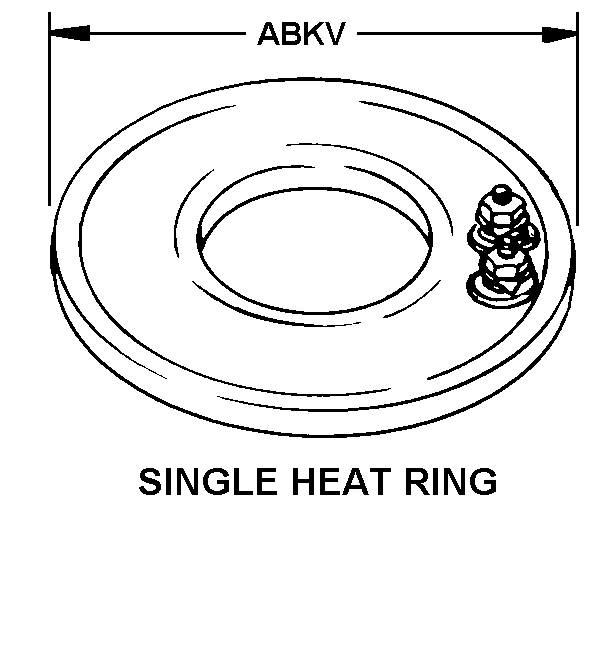

| BODY STYLE | 5 SINGLE HEAT RING |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 120.0 AC SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 |
| MAXIMUM WATTAGE RATING IN WATTS | 500.0 SINGLE VOLTAGE |
| ELEMENT QUANTITY | 1 |
| III END ITEM IDENTIFICATION | NAVY W/S TH, STRATEGIC SEALIFT CONVERSION SHIPS CLASS |
Restrictions/Controls & Freight Information | NSN 4520-01-433-7129
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
