NSN 4520-01-435-9081 DAA3295A173 REV F, DAA3295A173033, DAA3295A173-033
Product Details | VENTILATION DUCT TERMINAL
4520-01-435-9081 A fabricated device, generally constructed with a flared end and a straight or elbow type body. It may contain a damper and is designed to be used at the end of a ventilating duct to control the quantity and/or the direction of air flow.205156000001680000020400030Marine Hardware and Hull Items45200033Space and Water Heating Equipment56700034Building Components, Prefabricated
Part Alternates: DAA3295A173 REV F, DAA3295A173033, DAA3295A173-033, DAA3295A173REVF, 4520-01-435-9081, 01-435-9081, 4520014359081, 014359081
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 06 SEP 1996 | 01-435-9081 | 15042 ( TERMINAL, VENTILATION DUCT ) |
Drawings & Photos | NSN 4520-01-435-9081
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-01-435-9081
Technical Data | NSN 4520-01-435-9081
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 7.990 INCHES NOMINAL |
| OVERALL WIDTH | 4.670 INCHES NOMINAL |
| OVERALL HEIGHT | 6.120 INCHES NOMINAL |

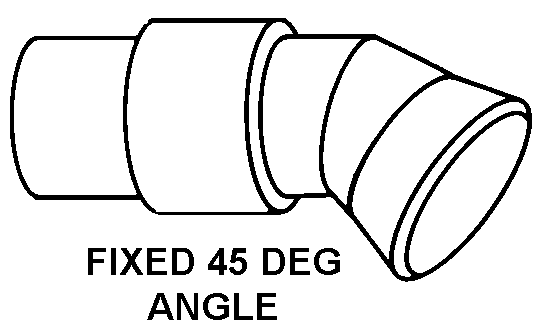

| STYLE DESIGNATOR | B2 FIXED 45 DEGREE ANGLE |
| DAMPER | NOT INCLUDED |
| SPECIAL FEATURES | PLENUM ASSEMBLY - RT DIAGONAL PANEL AIR OUTLET |
| III END ITEM IDENTIFICATION | WEAPONS SYSTEMS FM, AIRCRAFT, B-2 BOMBER |
Restrictions/Controls & Freight Information | NSN 4520-01-435-9081
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4520-01-435-9081
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BQ | TN:B-2 TSSP, NORTHROP GRUMMAN |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F59 | Northrop Grumman IS ACS 2501 Liberty Parkway, Suite 101 Midwest, OK 73110-2885 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
