NSN 4520-01-437-9478 C3/1100/11-5, C31100115, PL9A001-01-C FIND NO. 25
Product Details | IMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-437-9478 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and a sheath. It is designed to transform electrical current into heat while immersed in a liquid to be heated or in contact with materials to be melted. It may include an automatic control to regulate the amount of heat generated.2042590000041300045Refrigeration and Air Conditioning Components44100018Industrial Boilers45200033Space and Water Heating Equipment
Part Alternates: C3/1100/11-5, C31100115, PL9A001-01-C FIND NO. 25, PL9A00101CFINDNO25, 90C018662, 90C01-8662, 4520-01-437-9478, 01-437-9478, 4520014379478, 014379478
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 28 OCT 1996 | 01-437-9478 | 11327 ( HEATING ELEMENT, ELECTRICAL, IMMERSION TYPE ) |

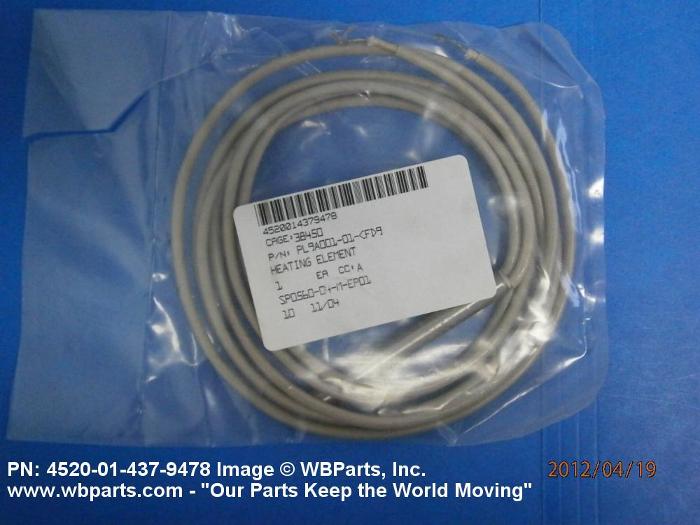

Drawings & Photos | NSN 4520-01-437-9478
Demand History | NSN 4520-01-437-9478
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4520-01-437-9478 | 2022-06-152 | 3 | United States |
| 4520-01-437-9478 | 2015-12-343 | 1 | United States |
| 4520-01-437-9478 | 2012-11-324 | 15 | DIBBS |
| 4520-01-437-9478 | 2012-11-318 | 7 | DIBBS |
| 4520-01-437-9478 | 2012-10-290 | 3 | DIBBS |
| 4520-01-437-9478 | 2012-06-166 | 7 | DIBBS |
| 4520-01-437-9478 | 2012-05-125 | 5 | DIBBS |
| 4520-01-437-9478 | 2012-04-100 | 2 | United States |
| 4520-01-437-9478 | 2012-03-91 | 3 | DIBBS |
Cross Reference | NSN 4520-01-437-9478
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-01-437-9478
Technical Data | NSN 4520-01-437-9478
| Characteristic | Specifications |
|---|---|
| LENGTH | 3.125 INCHES NOMINAL |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 440.0 AC SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | THREE SINGLE VOLTAGE |
| WATT DENSITY RATING | NOT RATED |
| ELEMENT QUANTITY | 1 |
| HEAT QUANTITY | 1 |
| ELEMENT CONNECTION STYLE | 1 WIRE LEAD |
| TERMINAL QUANTITY | 2 |
| TERMINAL LENGTH | 4.000 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | NAVY WEAPONS SYSTEM JK, WASP CLASS LHD |
Restrictions/Controls & Freight Information | NSN 4520-01-437-9478
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 026040 | ELEMENTS IMMERSION HEATING |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4520-01-437-9478
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
