NSN 4520-01-455-3794 C400-3-11.51, C40031151, C400-3-1151
Product Details | NONIMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-455-3794 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated.2042540000041300000441000004520000000
Part Alternates: C400-3-11.51, C40031151, C400-3-1151, 4520-01-455-3794, 01-455-3794, 4520014553794, 014553794
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 30 APR 1998 | 01-455-3794 | 29427 ( HEATING ELEMENT, ELECTRICAL, NONIMMERSION TYPE ) |
Drawings & Photos | NSN 4520-01-455-3794
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-01-455-3794
Technical Data | NSN 4520-01-455-3794
| Characteristic | Specifications |
|---|---|

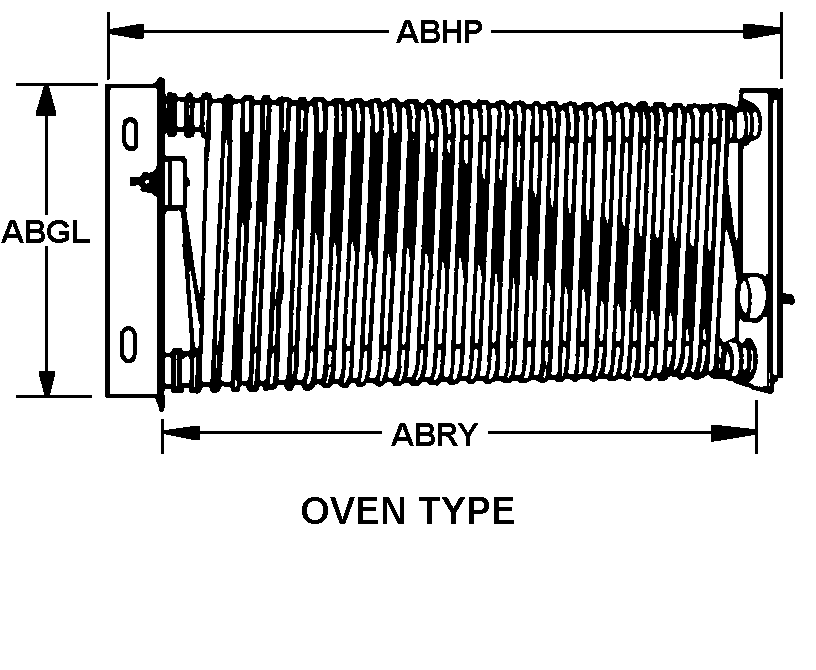

| BODY STYLE | 18 OVEN TYPE |
| MATERIAL | STEEL CORROSION RESISTING RESISTANCE WIRE EMBEDDING/SUPPORT INSULATION |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 120.0 AC SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | SINGLE SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | 1500.0 SINGLE VOLTAGE |
| HEAT CONTROL TYPE | THERMOSTAT |
| THERMOSTAT RANGE | 40.0 TO 100.0 DEG FAHRENHEIT |
| ELEMENT QUANTITY | 2 |
| ELEMENT CONNECTION STYLE | 5 HERMETICALLY SEALED STUD |
| III END ITEM IDENTIFICATION | HEATER, FORCED AIR P/N C400-11.5-1 NM ONBOARD 49 FT BUSL COAST GUARD VESSELS |
| MANUFACTURERS CODE | 17032 |
| DESIGN CONTROL REFERENCE | C400-3-11.51 |
Restrictions/Controls & Freight Information | NSN 4520-01-455-3794
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4520-01-455-3794
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
