NSN 4520-01-486-9393 3HM49, 01-486-9393, 014869393
Product Details | NONIMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-486-9393 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated.2042540000041300000441000004520000000
Part Alternates: 3HM49, 4520-01-486-9393, 01-486-9393, 4520014869393, 014869393
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 19 JUL 2001 | 01-486-9393 | 29427 ( HEATING ELEMENT, ELECTRICAL, NONIMMERSION TYPE ) |
Drawings & Photos | NSN 4520-01-486-9393
Cross Reference | NSN 4520-01-486-9393
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3HM49 | 0HD36 | PHENIX TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-01-486-9393
Technical Data | NSN 4520-01-486-9393
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 3 STRIP, FINNED |
| OVERALL LENGTH | 10.500 INCHES NOMINAL |
| WIDTH | 2.000 INCHES NOMINAL |
| LENGTH | 6.000 INCHES NOMINAL |
| TERMINAL ARRANGEMENT STYLE | 2 OFFSET OR STAGGERED AT ONE END |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| MATERIAL | STEEL COMP 304 SHEATH |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 240.0 DC SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | NOT RATED SINGLE VOLTAGE |
| WATT DENSITY RATING | 17.0 PER SQUARE INCH SINGLE VOLTAGE |
| HEAT CONTROL TYPE | ANY ACCEPTABLE |
| ELEMENT QUANTITY | 1 |
| HEAT QUANTITY | 1 |
| ELEMENT CONNECTION STYLE | 3 TERMINAL SCREW |
| TERMINAL QUANTITY | 2 |

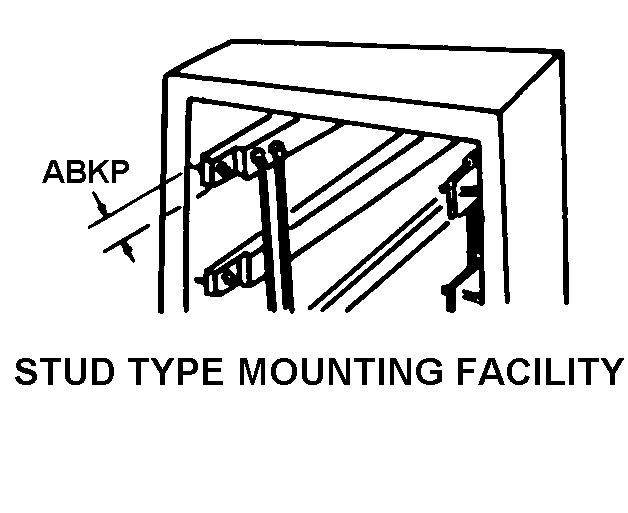

| MOUNTING METHOD STYLE | 10 STUD TYPE MOUNTING FACILITY |
| MOUNTING FACILITY LENGTH | 1.000 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | MOTOR TEST SET ON NIMITZ CLASS CVN |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | STAINLESS STEEL FINNED STRIP HEATER |
