Product Details | IMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-510-8590 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and a sheath. It is designed to transform electrical current into heat while immersed in a liquid to be heated or in contact with materials to be melted. It may include an automatic control to regulate the amount of heat generated.2042590000041300045Refrigeration and Air Conditioning Components44100018Industrial Boilers45200033Space and Water Heating Equipment
Part Alternates: L5291E20056BDITEMNO4, 529X135146, 529X-135146, 43505060, 43-505-060, 4520-01-510-8590, 01-510-8590, 4520015108590, 015108590
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 28 JUL 2003 | 01-510-8590 | 11327 ( HEATING ELEMENT, ELECTRICAL, IMMERSION TYPE ) |
Drawings & Photos | NSN 4520-01-510-8590
Demand History | NSN 4520-01-510-8590
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4520-01-510-8590 | 2018-11-317 | 194 | DIBBS |
| 4520-01-510-8590 | 2018-11-306 | 194 | US |
| 4520-01-510-8590 | 2018-11-305 | 194 | DIBBS |
| 4520-01-510-8590 | 2018-04-109 | 56 | DIBBS |
| 4520-01-510-8590 | 2018-04-98 | 56 | DIBBS |
| 4520-01-510-8590 | 2018-02-43 | 71 | DIBBS |
| 4520-01-510-8590 | 2018-02-32 | 71 | DIBBS |
| 4520-01-510-8590 | 2017-10-291 | 55 | DIBBS |
| 4520-01-510-8590 | 2016-10-278 | 55 | DIBBS |
| 4520-01-510-8590 | 2014-02-52 | 58 | DIBBS |
| 4520-01-510-8590 | 2014-02-37 | 58 | DIBBS |
| 4520-01-510-8590 | 2013-04-105 | 21 | DIBBS |
| 4520-01-510-8590 | 2013-03-88 | 21 | DIBBS |
| 4520-01-510-8590 | 2012-10-277 | 21 | DIBBS |
| 4520-01-510-8590 | 2012-09-255 | 27 | DIBBS |
| 4520-01-510-8590 | 2012-05-129 | 35 | DIBBS |
| 4520-01-510-8590 | 2011-09-273 | 52 | DIBBS |
| 4520-01-510-8590 | 2011-06-176 | 4 | DIBBS |
| 4520-01-510-8590 | 2011-06-167 | 6 | DIBBS |
| 4520-01-510-8590 | 2011-02-40 | 1 | DIBBS |
| 4520-01-510-8590 | 2011-02-40 | 5 | DIBBS |
Cross Reference | NSN 4520-01-510-8590
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4520-01-510-8590
Related Products | NSN 4520-01-510-8590
Technical Data | NSN 4520-01-510-8590

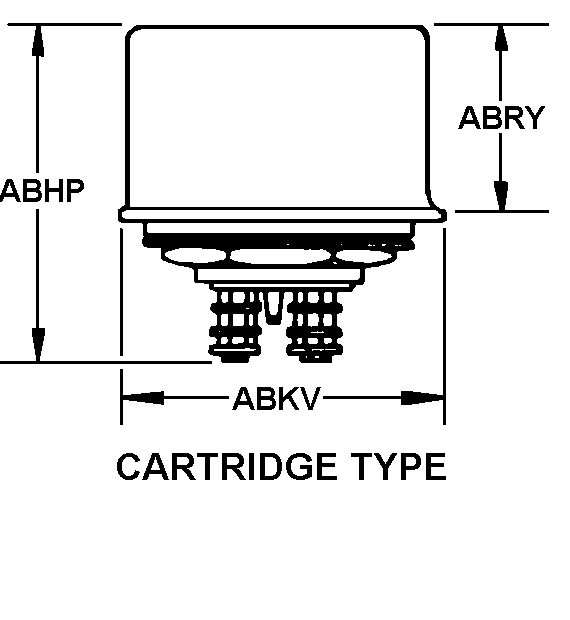

| Characteristic | Specifications |
|---|---|
| BODY STYLE | 47 CARTRIDGE TYPE |
| OVERALL LENGTH | 26.500 INCHES MINIMUM AND 27.000 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.561 INCHES MINIMUM AND 0.565 INCHES MAXIMUM |
| LENGTH | 26.000 INCHES MINIMUM AND 26.500 INCHES MAXIMUM |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| MATERIAL | STEEL COMP 304 SHEATH |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 440.0 AC SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | SINGLE SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | 600.0 SINGLE VOLTAGE |
| WATT DENSITY RATING | NOT RATED |
| ELEMENT QUANTITY | 6 |
| HEAT QUANTITY | 1 |
| ELEMENT CONNECTION STYLE | 1 WIRE LEAD |
| TERMINAL QUANTITY | 2 |
| TERMINAL LENGTH | 24.000 INCHES NOMINAL |
| MOUNTING METHOD STYLE | 4 FLANGE TYPE MOUNTING FACILITY |
| HOLE DIAMETER | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| MOUNTING FACILITY LENGTH | 1.495 INCHES MINIMUM AND 1.560 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.975 INCHES MINIMUM AND 1.275 INCHES MAXIMUM |
| MOUNTING FACILITY WIDTH | 1.495 INCHES MINIMUM AND 1.560 INCHES MAXIMUM |
| HOLE OR SLOT QUANTITY | 3 |
| FLANGE THICKNESS | 0.065 INCHES NOMINAL |
| SPECIAL FEATURES | MOUNTING FLANGE IS 16 GA 304 SST, TACKWELDED TO TUBE; TERMINALS ARE 18 GA EXANE LEADWIRE WITH 0.875 LONG SILICONE RUBBER SLEEVING AT FLANGE; CAVITY IS SEALED WITH CLEAR EPOXY |
| III END ITEM IDENTIFICATION | FBR; DEFROST PANELCXCY |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SPECIAL TUBE-IN-TUBE DESIGN 9/16 DIAMETER HEATER FOR MARLO COIL |
