NSN 4530-00-001-7971 1791, 30302, 00-001-7971
Product Details | FUEL OIL REGULATING VALVE
4530-00-001-7971 A valve with a grooved or slotted seat covered by a rotating cam or slotted disk designed for the accurate regulation of the flow of fuel oil to a burner or burner manifold. It is equipped with a position indicator.
Part Alternates: 1791, 30302, 4530-00-001-7971, 00-001-7971, 4530000017971, 000017971
Plumbing, Heating, and Waste Disposal Equipment | Fuel Burning Equipment Units
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 27 SEP 1972 | 00-001-7971 | 10264 ( VALVE, REGULATING, FUEL OIL ) |
Drawings & Photos | NSN 4530-00-001-7971
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4530-00-001-7971
Related Products | NSN 4530-00-001-7971
Technical Data | NSN 4530-00-001-7971
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL, ASTM A216, GRADE WCB |
| SEAT MATERIAL | STEEL, CORROSION RESISTING |
| STEM MATERIAL | STEEL, CORROSION RESISTING |
| FLOW CONTROL DEVICE | STEM AND INTEGRAL DISK |
| FLOW CONTROL DEVICE MATERIAL | STEEL, CORROSION RESISTING |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | RAISED FACE FLANGE |
| FIRST END STYLE DESIGNATOR | G1 PLAIN |
| FIRST END RAISED FACE HEIGHT | 0.250 INCHES NOMINAL |
| FIRST END RAISED FACE DIAMETER | 3.625 INCHES NOMINAL |
| FIRST END FLANGE SHAPE STYLE | 3 ROUND |
| FIRST END BOLT HOLE QUANTITY | 8 |
| FIRST END FLANGE OUTSIDE DIAMETER | 8.500 INCHES NOMINAL |
| FIRST END FLANGE THICKNESS | ANY ACCEPTABLE |
| FIRST END BOLT HOLE DIAMETER | 1.000 INCHES NOMINAL |
| FIRST END BOLT CIRCLE DIAMETER | ANY ACCEPTABLE |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |

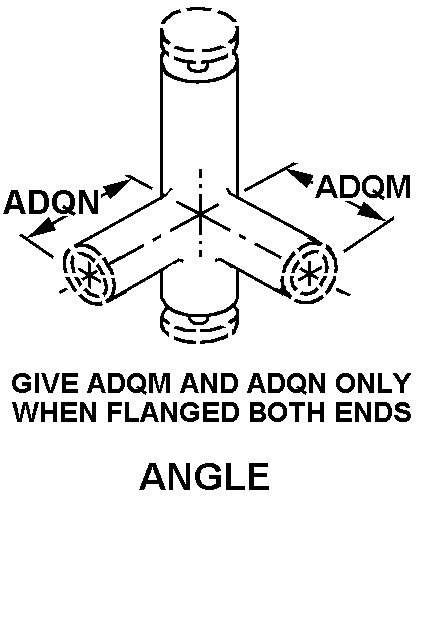

| BODY STYLE | A44 ANGLE |
| FIRST CONNECTION FACE TO CENTERLINE DISTANCE | 7.250 INCHES NOMINAL |
| SECOND CONNECTION FACE TO CENTERLINE DISTANCE | 7.250 INCHES NOMINAL |
| PRESSURE RATING | NOT RATED |
| REGULATION TYPE | MANUAL, DOUBLE STAGE |
| MANUAL CONTROL METHOD | WHEEL |
| BYPASS FLOW RATE | NOT RATED |
Restrictions/Controls & Freight Information | NSN 4530-00-001-7971
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 132740 | VALVES GRAVITY FUEL OIL FLOW |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4530-00-001-7971
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
