Product Details | IMMERSION TYPE ELECTRICAL HEATING ELEMENT
4540-01-090-6364 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and a sheath. It is designed to transform electrical current into heat while immersed in a liquid to be heated or in contact with materials to be melted. It may include an automatic control to regulate the amount of heat generated.2042590000041300045Refrigeration and Air Conditioning Components44100018Industrial Boilers45200033Space and Water Heating Equipment
Part Alternates: 3152980, 31529803, 3152980-3, 332803, 3-32-80-3, 4540-01-090-6364, 01-090-6364, 4540010906364, 010906364
Plumbing, Heating, and Waste Disposal Equipment | Waste Disposal Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 22 FEB 1980 | 01-090-6364 | 11327 ( HEATING ELEMENT, ELECTRICAL, IMMERSION TYPE ) |
Drawings & Photos | NSN 4540-01-090-6364
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4540-01-090-6364
Technical Data | NSN 4540-01-090-6364
| Characteristic | Specifications |
|---|---|

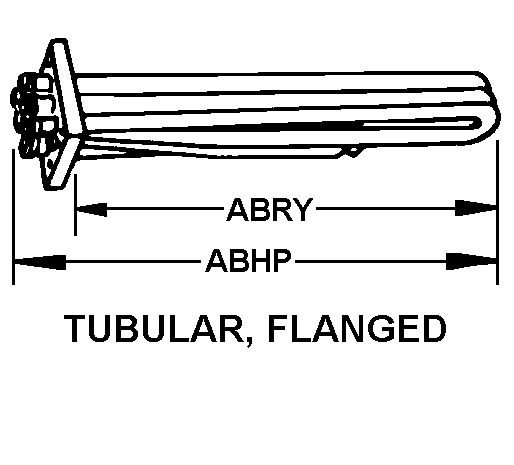

| BODY STYLE | 64 TUBULAR, FLANGED |
| OVERALL LENGTH | 7.062 INCHES NOMINAL |
| LENGTH | 5.875 INCHES NOMINAL |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| MATERIAL | NICKEL ALLOY SHEATH |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | SINGLE SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | 50.0 SINGLE VOLTAGE |
| WATT DENSITY RATING | NOT RATED SINGLE VOLTAGE |
| EFFECTIVE HEATING LENGTH | 5.187 INCHES NOMINAL |
| ELEMENT QUANTITY | 1 |
| HEAT QUANTITY | 1 |
| ELEMENT CONNECTION STYLE | 4 STUD TYPE |
| TERMINAL QUANTITY | 2 |
| TERMINAL LENGTH | 1.187 INCHES NOMINAL |
| MOUNTING METHOD STYLE | 4 FLANGE TYPE MOUNTING FACILITY |
| HOLE DIAMETER | 0.206 INCHES NOMINAL |
| MOUNTING FACILITY LENGTH | 2.625 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.125 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.875 INCHES NOMINAL |
| MOUNTING FACILITY WIDTH | 1.250 INCHES NOMINAL |
| HOLE OR SLOT QUANTITY | 4 |
| FLANGE THICKNESS | 0.187 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC STUD |
| NOMINAL THREAD SIZE | 0.125 INCHES STUD |
| THREAD QUANTITY | 40.0 PER INCH STUD |
