NSN 4620-01-020-2365 6001092, 600109-2, 01-020-2365
Product Details | SALINITY DETECTOR CELL

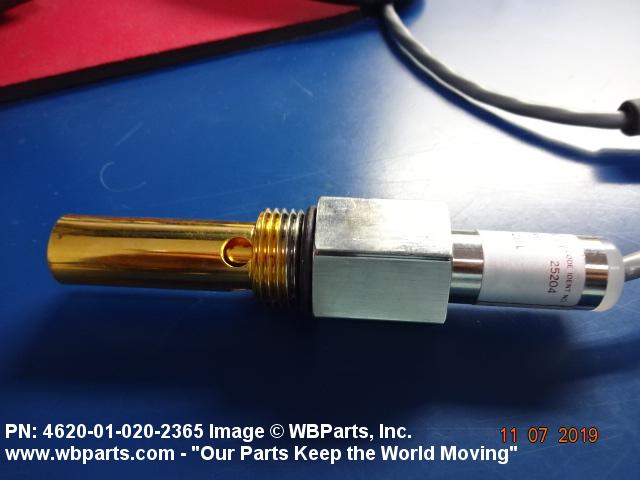

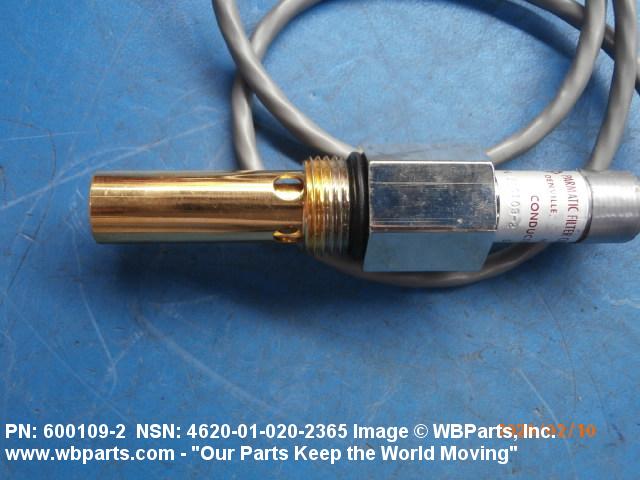

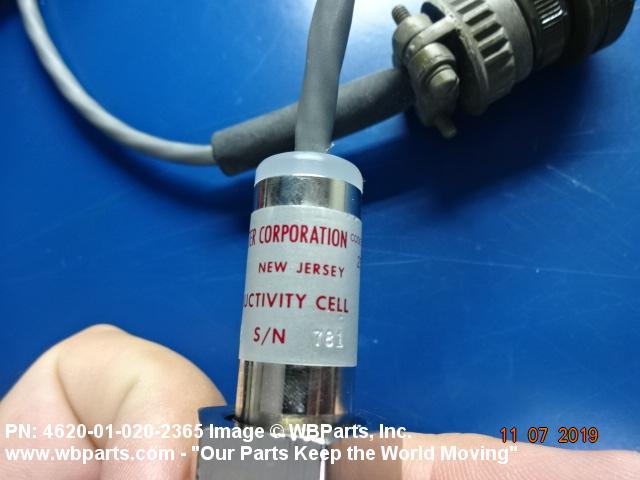

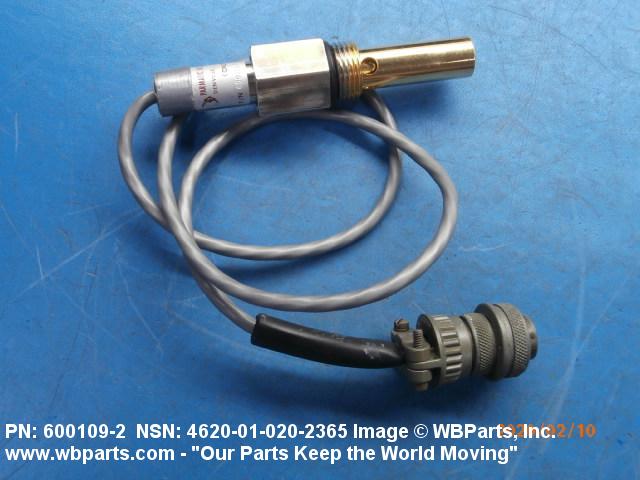

4620-01-020-2365 A sensor designed to detect the salt content of water by means of electrodes. The item has a threaded fitting for direct pipe connection. It is electrically connected to a PANEL, SALINITY MONITORING SYSTEM, SHIPBOARD that may activate a dump valve to discharge poor quality water. For cells without a valve see CELL, AND VALVE ASSEMBLY, SALINITY DETECTOR.20246200051Water Distillation Equipment, Marine and Industrial66300029Chemical Analysis Instruments
Part Alternates: 6001092, 600109-2, 4620-01-020-2365, 01-020-2365, 4620010202365, 010202365
Water Purification and Sewage Treatment Equipment | Water Distillation Equipment, Marine and Industrial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 46 | 27 APR 1976 | 01-020-2365 | 51178 ( CELL, SALINITY DETECTOR ) |
Drawings & Photos | NSN 4620-01-020-2365
Demand History | NSN 4620-01-020-2365
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 600109-2 | 2023-02-57 | 5 | DIBBS |
| 4620-01-020-2365 | 2021-06-158 | 2 | Taiwan |
| 600109-2 | 2020-10-296 | 5 | DIBBS |
| 4620-01-020-2365 | 2020-02-38 | 1 | Taiwan |
| 4620-01-020-2365 | 2020-01-30 | 1 | Taiwan |
| 4620-01-020-2365 | 2019-11-308 | 1 | Taiwan |
| 4620-01-020-2365 | 2019-09-266 | 3 | Taiwan |
| 600109-2 | 2019-03-68 | 5 | DIBBS |
Cross Reference | NSN 4620-01-020-2365
| Part Number | Cage Code | Manufacturer |
|---|---|---|

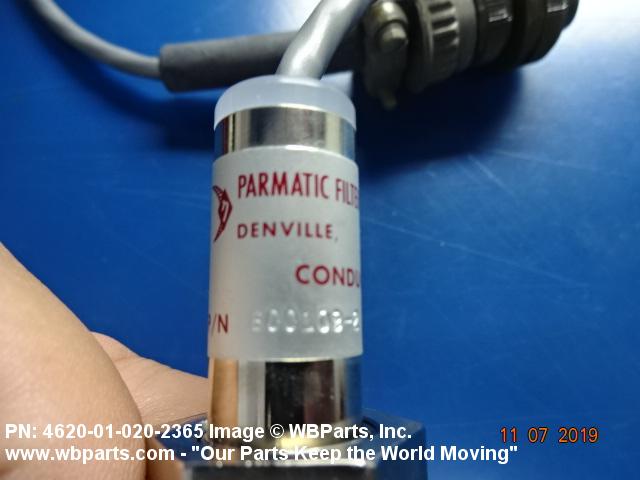

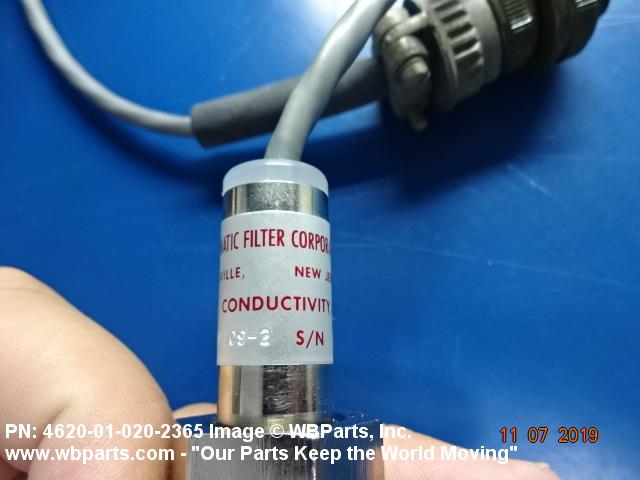

| 600109-2 | 25204 | ADMIRAL FILTER COMPANY LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4620-01-020-2365
Technical Data | NSN 4620-01-020-2365
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 35.000 INCHES NOMINAL |

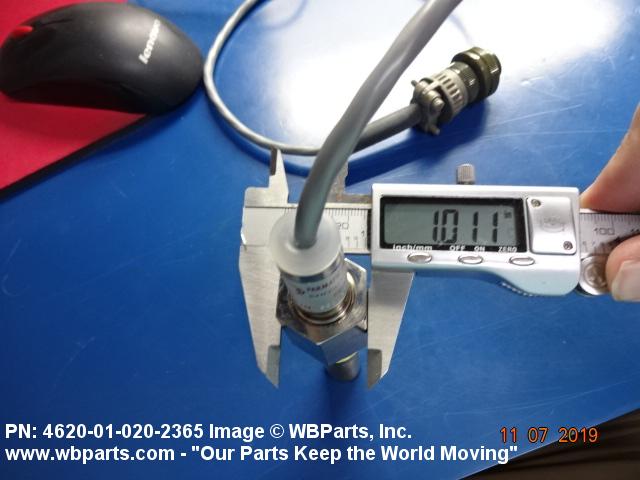

| OVERALL DIAMETER | 1.030 INCHES NOMINAL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.875-14 2B UNF |

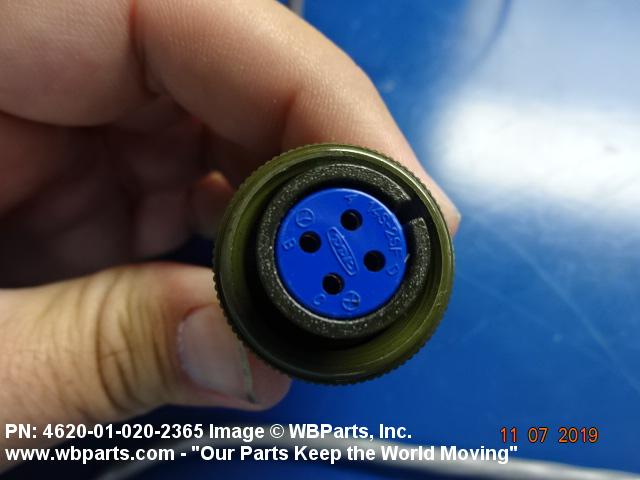

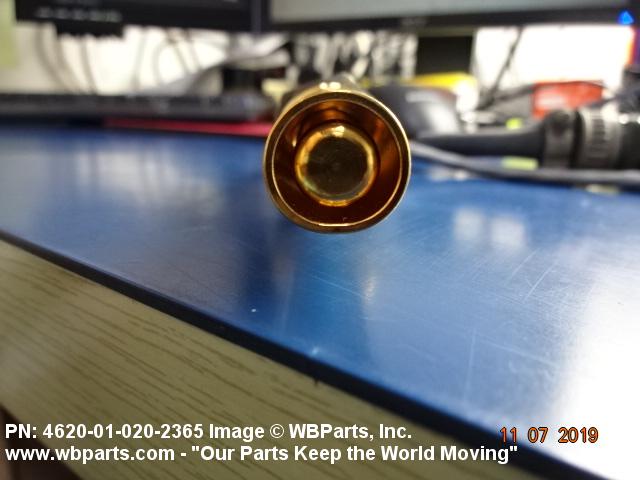

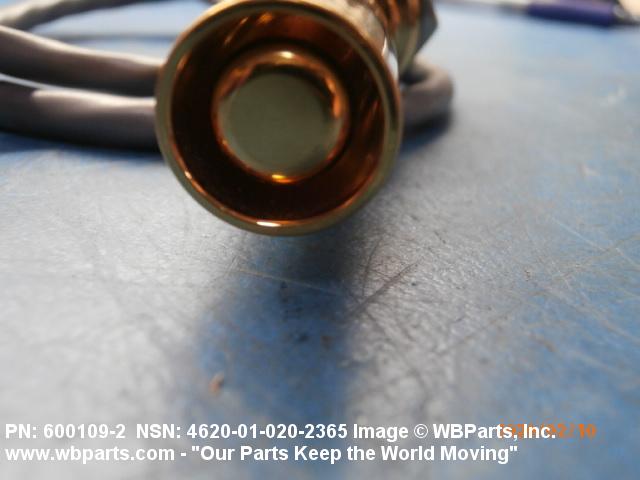

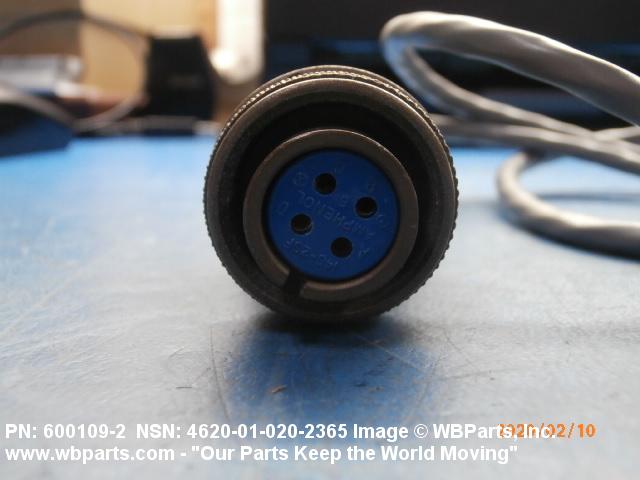

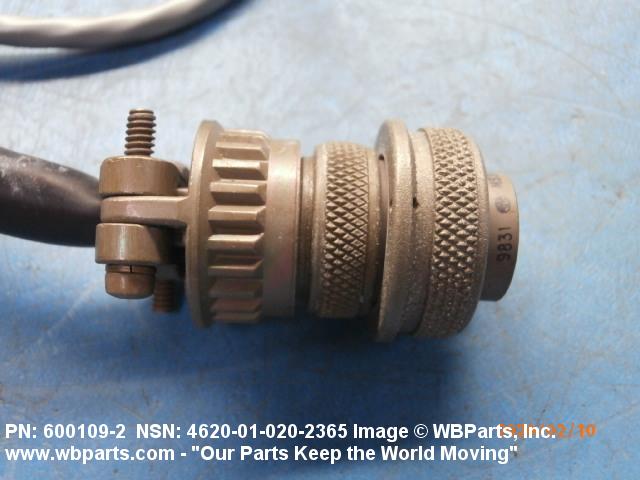

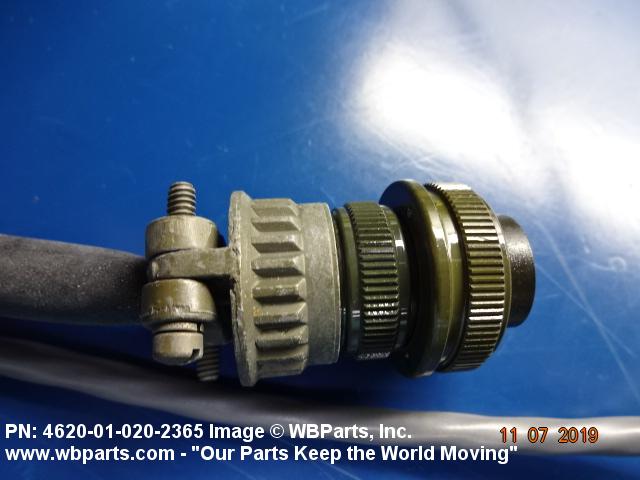

| GENERAL CHARACTERISTICS ITEM DESCRIPTION | ASSEMBLY CONSISTS OF COMPONENTS: ITEM 1 P/N 202819-( ) SHIELD CABLE; ITEM 2 P/N MS3106A-145-25 PLUG-CONNECTOR; ITEM 3 P/N MS28778-10 O-RING SEAL; ITEM 4 P/N 200532-1 OUTER ELECTRODE; ITEM 5 P/N 200766 INNER ELECTRODE |

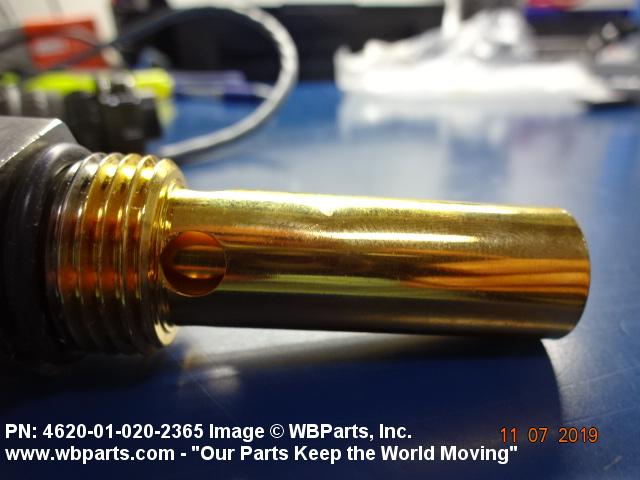

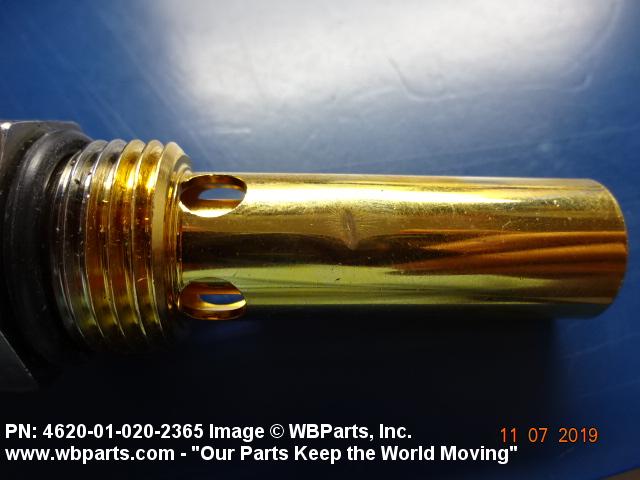

| SPECIAL FEATURES | ELECTRODE THREADS 7/8-14UNF-2B |
| III END ITEM IDENTIFICATION | PARAMTIC DEMINERALIZER U.S.NAVY VESSELS |
| III FUNCTIONAL DESCRIPTION | MEASURES PURITY OF CONTAMINATED WATER INCOOLING SYSTEMS; WORKS IN CONJUNCTION W/CONDUCTIVITY METERS |
Restrictions/Controls & Freight Information | NSN 4620-01-020-2365
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 056680 | DENTAL/MEDICAL/SURG INST R MACHINE |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 651 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4620-01-020-2365
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
