NSN 4710-00-159-9010 3900T16P04, 00-159-9010, 001599010
Product Details | METAL TUBE ASSEMBLY
4710-00-159-9010 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: 3900T16P04, 4710-00-159-9010, 00-159-9010, 4710001599010, 001599010
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 MAY 1971 | 00-159-9010 | 21989 ( TUBE ASSEMBLY, METAL ) |
Drawings & Photos | NSN 4710-00-159-9010
Cross Reference | NSN 4710-00-159-9010
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3900T16P04 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-00-159-9010
Technical Data | NSN 4710-00-159-9010
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | STEEL AMS 5580 |
| TUBE OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| WALL THICKNESS | 0.035 INCHES NOMINAL |
| END CONNECTION STYLE | B45 FLARELESS |
| MATING END QUANTITY | 1 |
| MATERIAL | STEEL AMS 5665 |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD CLASS | 2A |

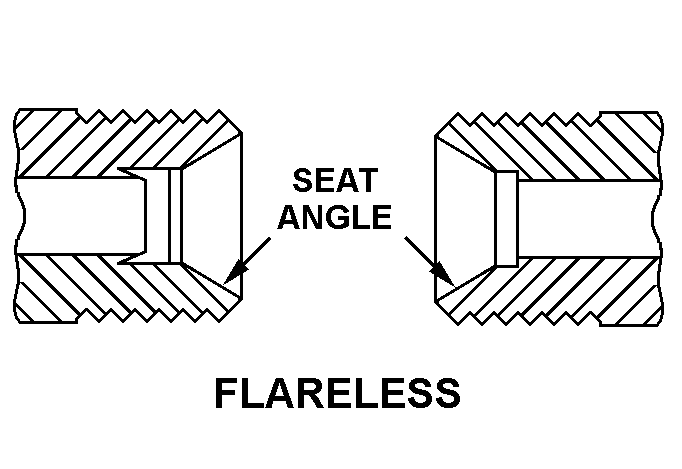

| SEAT ANGLE IN DEG | 74.0 75.0 |
| DESIGN FORM | PREBENT |
| MANUFACTURERS CODE | 99207 |
| DESIGN CONTROL REFERENCE | 3900T16P04 |
Restrictions/Controls & Freight Information | NSN 4710-00-159-9010
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4710-00-159-9010
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | EQ | TURBO PROPENGINES(T58) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
