NSN 4710-00-493-4253 2586382, 00-493-4253, 004934253
Product Details | METAL TUBE ASSEMBLY
4710-00-493-4253 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: 2586382, 4710-00-493-4253, 00-493-4253, 4710004934253, 004934253
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 13 FEB 1970 | 00-493-4253 | 21989 ( TUBE ASSEMBLY, METAL ) |
Drawings & Photos | NSN 4710-00-493-4253
Cross Reference | NSN 4710-00-493-4253
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2586382 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-00-493-4253
Technical Data | NSN 4710-00-493-4253
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | STEEL, FED STD 66, COMP 304 |
| TUBE OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |
| WALL THICKNESS | 0.035 INCHES NOMINAL |

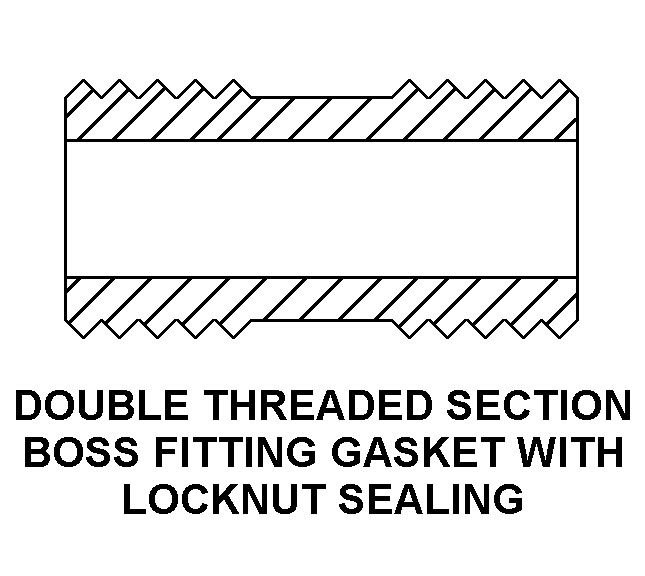

| END CONNECTION STYLE | B51 DOUBLE THREADED SECTION BOSS FITTING GASKET WITH LOCKNUT SEALING |
| CONNECTION SPECIAL DESIGN | UNION |
| MATING END QUANTITY | 1 |
| MATERIAL | STEEL, CORROSION RESISTING |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 0.438 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT ANGLE IN DEG | 45.0 |
| DESIGN FORM | PREBENT |
| OVERALL LENGTH | 13.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | 2586382 |
Restrictions/Controls & Freight Information | NSN 4710-00-493-4253
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
