NSN 4710-00-691-4461 10870110, 00-691-4461, 006914461
Product Details | METAL TUBE ASSEMBLY
4710-00-691-4461 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: 10870110, 4710-00-691-4461, 00-691-4461, 4710006914461, 006914461
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-691-4461 | 21989 ( TUBE ASSEMBLY, METAL ) |

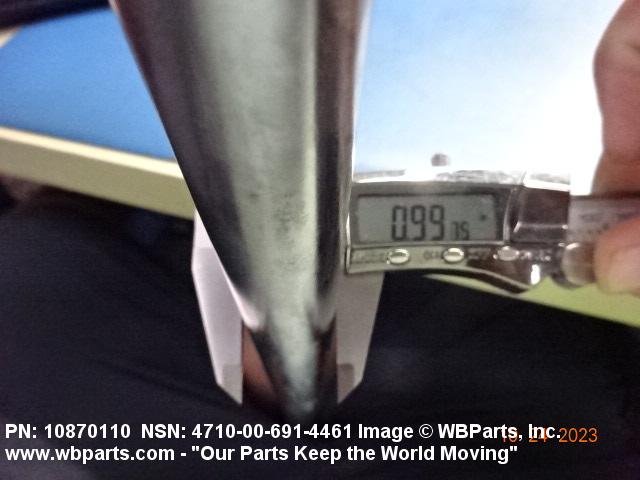

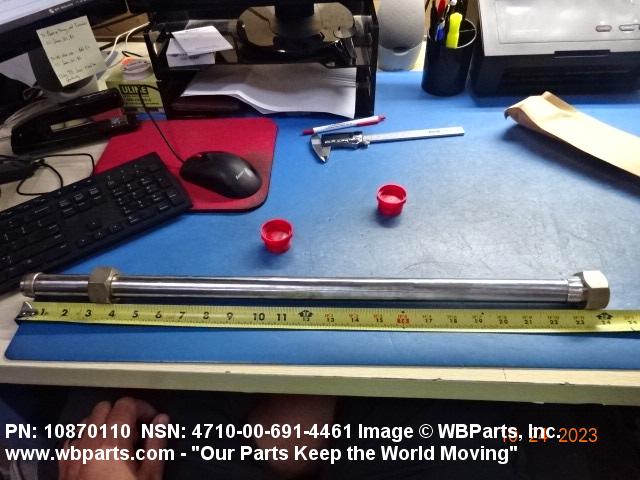

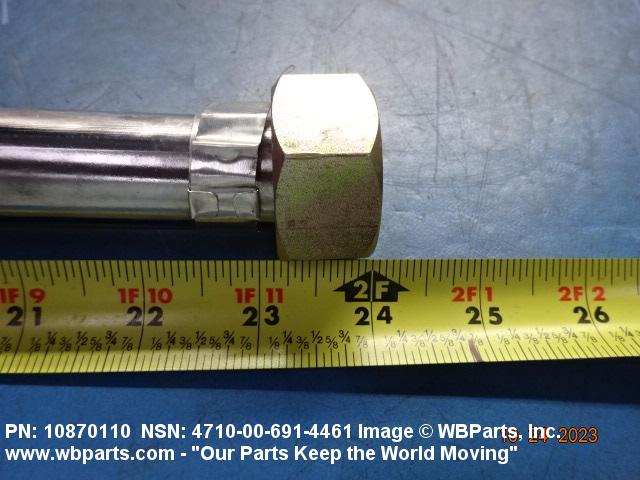

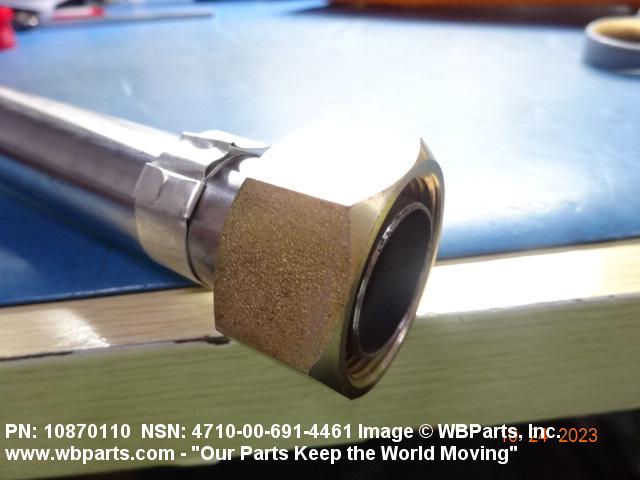

Drawings & Photos | NSN 4710-00-691-4461
Demand History | NSN 4710-00-691-4461
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4710-00-691-4461 | 2023-10-285 | 1 | United States |
| 4710-00-691-4461 | 2023-08-222 | 51 | DIBBS |
| 4710-00-691-4461 | 2023-07-211 | 51 | DIBBS |
| 4710-00-691-4461 | 2023-04-116 | 1 | United States |
| 4710-00-691-4461 | 2023-01-12 | 55 | DIBBS |
| 4710-00-691-4461 | 2021-03-87 | 29 | DIBBS |
| 4710-00-691-4461 | 2020-11-311 | 333 | DIBBS |
| 4710-00-691-4461 | 2020-10-300 | 333 | DIBBS |
| 4710-00-691-4461 | 2018-02-32 | 67 | DIBBS |
| 4710-00-691-4461 | 2016-08-231 | 53 | DIBBS |
| 4710-00-691-4461 | 2014-04-107 | 49 | DIBBS |
| 4710-00-691-4461 | 2012-01-20 | 11 | DIBBS |
| 4710-00-691-4461 | 2011-10-294 | 9 | DIBBS |
| 4710-00-691-4461 | 2010-07-209 | 5 | DIBBS |
| 4710-00-691-4461 | 2010-07-209 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4710-00-691-4461
Related Products | NSN 4710-00-691-4461
Technical Data | NSN 4710-00-691-4461
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | STEEL,FED,QQ-S-00643,FS 1000 OR FS 1020 |
| TUBE OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| WALL THICKNESS | 0.032 INCHES NOMINAL |
| END CONNECTION STYLE | B13 SWIVEL NUT WITH LOOSE OR INTEGRAL CLINCH SLEEVE |
| MATING END QUANTITY | 2 |
| MATERIAL | STEEL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 1.312 INCHES |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT ANGLE IN DEG | 45.0 |
| END CONNECTION SPEC/STD | MIL,MS39210,P/N MS39210-10;MIL,MS39212,P/N MS39212-10 |
| DESIGN FORM | STRAIGHT |
| OVERALL LENGTH | 22.750 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4710-00-691-4461
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4710-00-691-4461
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | W | Line of Communication/Base Support Systems |
| Weapons Systems/End Item or Homogeneous Group | WB | Bridge Armored Vehicle and Support Equipment |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
