NSN 4710-00-856-5626 S613063005177, S6130-63005-177, 00-856-5626
Product Details | METAL TUBE ASSEMBLY
4710-00-856-5626 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: S613063005177, S6130-63005-177, 4710-00-856-5626, 00-856-5626, 4710008565626, 008565626
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 04 OCT 1967 | 00-856-5626 | 21989 ( TUBE ASSEMBLY, METAL ) |

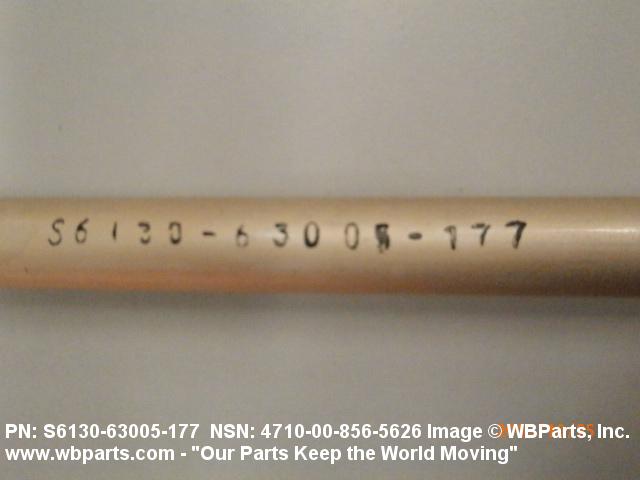

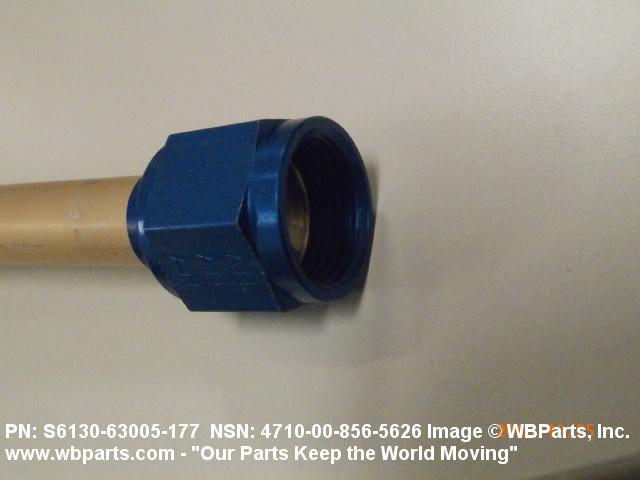

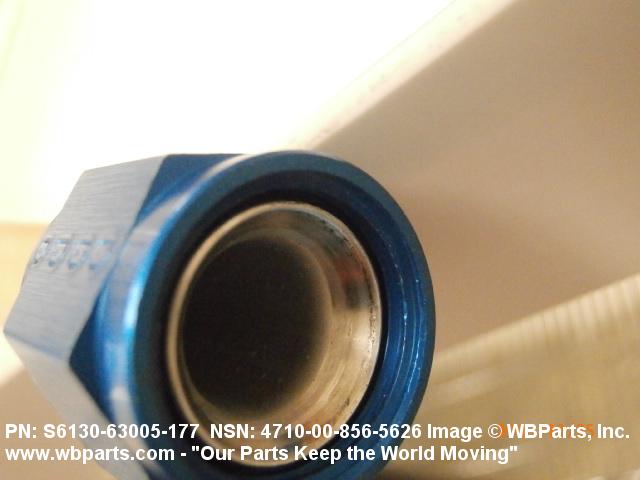

Drawings & Photos | NSN 4710-00-856-5626
Demand History | NSN 4710-00-856-5626
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| S613063005177 | 2013-10-280 | 1 | United States |
| S613063005177 | 2013-09-269 | 1 | United States |
| S613063005177 | 2013-06-156 | 1 | United States |
| S6130-63005-177 | 2012-07-184 | 1 | United States |
| S6130-63005-177 | 2012-06-160 | 1 | United States |
| S6130-63005-177 | 2012-04-93 | 1 | United States |
Cross Reference | NSN 4710-00-856-5626
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S6130-63005-177 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-00-856-5626
Technical Data | NSN 4710-00-856-5626
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | ALUMINUM ALLOY, WW-T-700/4, O, TYPE 1 |
| TUBE OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| WALL THICKNESS | 0.042 INCHES NOMINAL |
| END CONNECTION STYLE | B7 FLARE |
| MATING END QUANTITY | 2 |
| MATERIAL | ALUMINUM ALLOY |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT ANGLE IN DEG | 33.00 |
| END CONNECTION SPEC/STD | NAS,NAS593,NAS593-8 |
| DESIGN FORM | PREBENT |
| III FSC APPLICATION DATA | FUSELAGE,AIRFRAME |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | S6130-63005-177 |
Restrictions/Controls & Freight Information | NSN 4710-00-856-5626
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
