Product Details | METAL TUBE ASSEMBLY

4710-00-858-1028 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.

Part Alternates: 419243, 458124, 646887, 4710-00-858-1028, 00-858-1028, 4710008581028, 008581028

Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1962	00-858-1028	21989 ( TUBE ASSEMBLY, METAL )

Drawings & Photos | NSN 4710-00-858-1028

Part Number	Request Date	QTY	Origin
646887	2019-11-321	2	DIBBS
646887	2019-07-199	2	DIBBS
646887	2019-06-161	2	DIBBS
4710-00-858-1028	2015-12-340	23	DIBBS
4710-00-858-1028	2015-10-302	27	DIBBS
4710-00-858-1028	2014-12-345	15	DIBBS
4710-00-858-1028	2014-06-160	11	DIBBS
4710-00-858-1028	2013-11-308	24	DIBBS
4710-00-858-1028	2013-05-129	22	DIBBS
4710-00-858-1028	2013-04-109	21	DIBBS

Cross Reference | NSN 4710-00-858-1028

Part Number	Cage Code	Manufacturer
419243	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
458124	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
646887	05813	KREISLER INDUSTRIAL CORPORATION DBA KREISLER INDUSTRIAL
646887	05819	E. A. PATTEN CO., THE
646887	21890	LEWIS & SAUNDERS INC
646887	33830	AERO TUBE TECHNOLOGIES, LLC DBA TUBE BENDS
646887	52661	UNITED TECHNOLOGIES CORPORATION DBA PRATT & WHITNEY
646887	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
646887	96593	INTERNATIONAL AEROSPACE TUBES LLC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4710-00-858-1028

Compare

Related Products | NSN 4710-00-858-1028

4710-00-858-1031, 4710-00-858-1032, 4710-00-858-1033, 4710-00-858-1639, 4710-00-858-1642

Technical Data | NSN 4710-00-858-1028

Characteristic	Specifications
TUBING MATERIAL	STEEL, AMS 5570
TUBE OUTSIDE DIAMETER	1.255 INCHES NOMINAL
WALL THICKNESS	0.022 INCHES NOMINAL

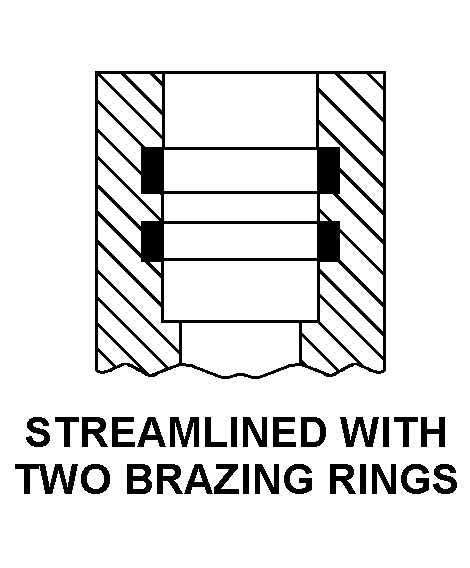

END CONNECTION STYLE	B23 STREAMLINED WITH TWO BRAZING RINGS B72 RAISED
