Product Details | METAL TUBE ASSEMBLY
4710-00-896-8590 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: 77643589, 776435-89, 4710-00-896-8590, 00-896-8590, 4710008968590, 008968590
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-896-8590 | 21989 ( TUBE ASSEMBLY, METAL ) |
Drawings & Photos | NSN 4710-00-896-8590
Cross Reference | NSN 4710-00-896-8590
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 776435-89 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4710-00-896-8590
4710-00-896-8873, 4710-00-896-8895, 4710-00-896-9002, 4710-00-896-9031, 4710-00-897-0889
Technical Data | NSN 4710-00-896-8590
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | STEEL, MIL-T-6845, TYPE 304, COND 1/8H |
| TUBE OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| WALL THICKNESS | 0.035 INCHES NOMINAL |

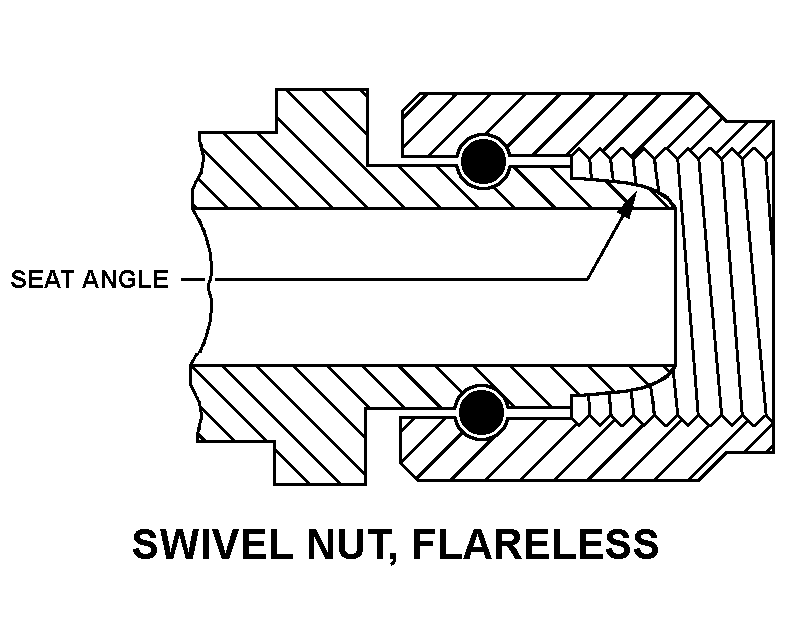

| END CONNECTION STYLE | B19 SWIVEL NUT, FLARELESS |
| MATING END QUANTITY | 2 |
| MATERIAL | STEEL, CARBON AND ALUMINUM ALLOY |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT ANGLE IN DEG | 45.0 |
| END CONNECTION SPEC/STD | MS21921-D8,MS21921-8,MS21922-8 |
| DESIGN FORM | PREBENT |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 776435-89 |
