NSN 4710-00-899-3044 WWP401, 00-899-3044, 008993044
Product Details | METALLIC PIPE
4710-00-899-3044 A straight, one piece metallic pipe in excess of 12 inches (304 mm) in length. It may have external or internal threads or may be unthreaded. For pipe having external threads 12 inches (304 mm) or less in length see NIPPLE,PIPE. For pipe having internal threads 12 inches (304 mm) or less in lenght see COUPLING,PIPE.
Part Alternates: WWP401, 4710-00-899-3044, 00-899-3044, 4710008993044, 008993044
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-899-3044 | 31978 ( PIPE, METALLIC ) |
Drawings & Photos | NSN 4710-00-899-3044
Cross Reference | NSN 4710-00-899-3044
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WWP401 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-00-899-3044
Technical Data | NSN 4710-00-899-3044
| Characteristic | Specifications |
|---|---|
| NOMINAL PIPE SIZE DESIGNATION | 6.000 INCHES |
| WALL THICKNESS DESIGNATION | EXTRA HEAVY WEIGHT |
| MEASURING METHOD AND LENGTH | 56.810 INCHES MINIMUM LAYING AND 57.190 INCHES MAXIMUM LAYING |
| FIRST END STYLE | 9 SPIGOT |
| FIRST END BEAD OUTSIDE DIAMETER | 6.880 INCHES MINIMUM AND 6.970 INCHES MAXIMUM |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |

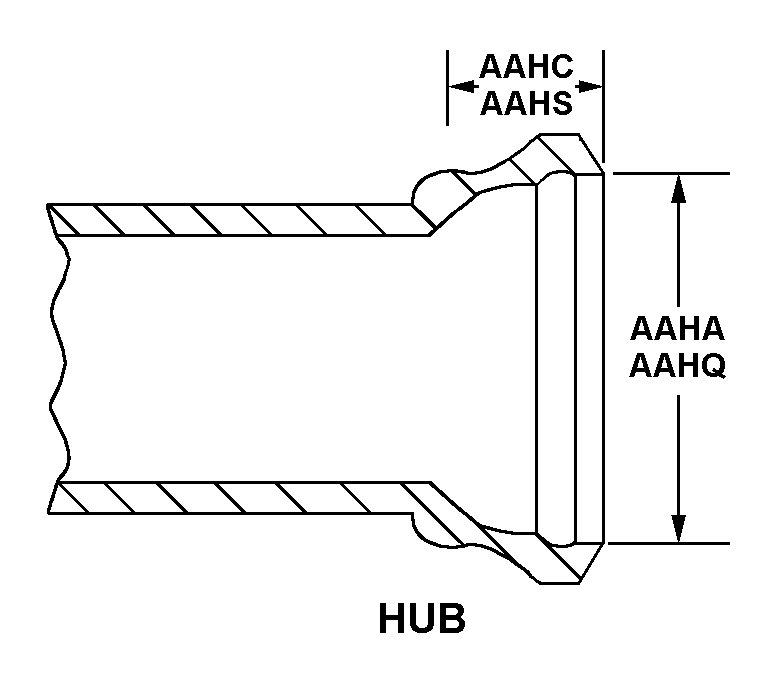

| SECOND END STYLE | 17 HUB |
| SECOND END INSIDE DIAMETER | 7.130 INCHES MINIMUM AND 7.280 INCHES MAXIMUM |
| SECOND END TELESCOPING LENGTH | 2.940 INCHES MINIMUM AND 3.060 INCHES MAXIMUM |
| CONSTRUCTION | SEAMLESS |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| MAXIMUM OPERATING TEMP | NOT RATED |
| NONDEFINITIVE SPEC/STD DATA | XH CLASS AND SINGLE HUB PATTERN AND 6.0 SIZE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY LAYING LG AND BY PATTERN AND BY OUTSIDE SURFACE TREATME T AND BY INSIDE SURFACE TREATMENT |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WWP401 |
Restrictions/Controls & Freight Information | NSN 4710-00-899-3044
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
