NSN 4710-01-108-3898 2502836, 01-108-3898, 011083898
Product Details | RIGID NONMETALLIC TUBING ASSEMBLY
4710-01-108-3898 A length of nonmetallic tubing having a round cross section and fittings on one or both ends. For items without fittings, see TUBING, NONMETALLIC. Excludes HOSE ASSEMBLY (as modified)20247100027Pipe, Tube and Rigid Tubing47200024Hose and Flexible Tubing
Part Alternates: 2502836, 4710-01-108-3898, 01-108-3898, 4710011083898, 011083898
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 26 FEB 1981 | 01-108-3898 | 31933 ( TUBING ASSEMBLY, NONMETALLIC ) |

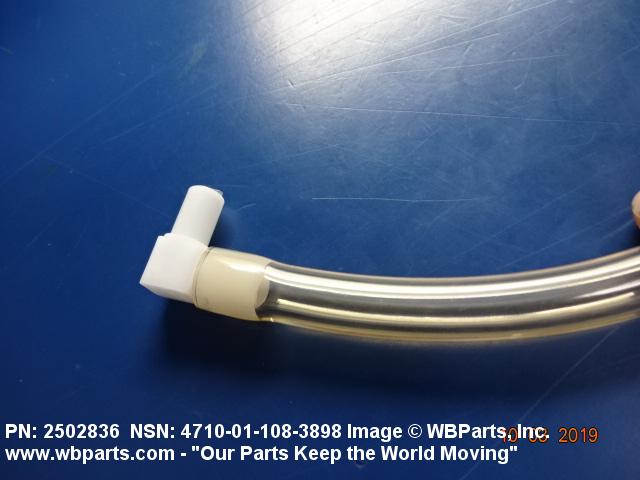

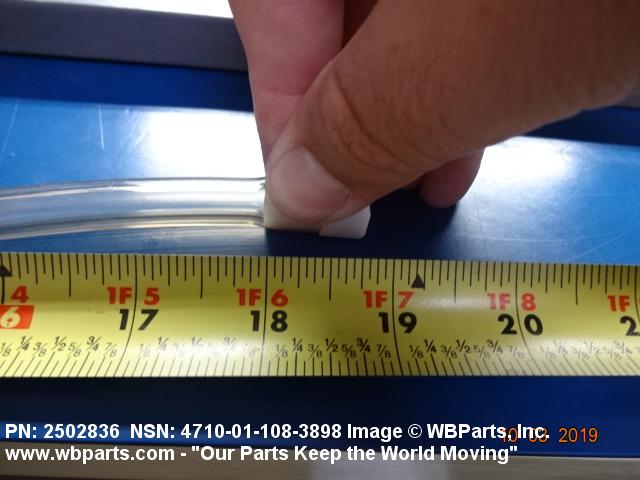

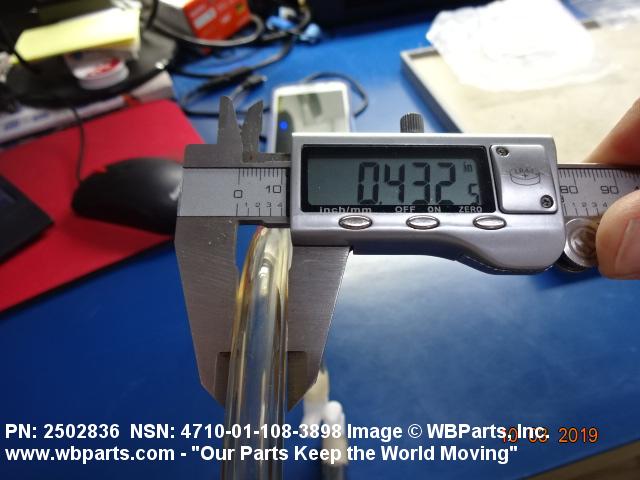

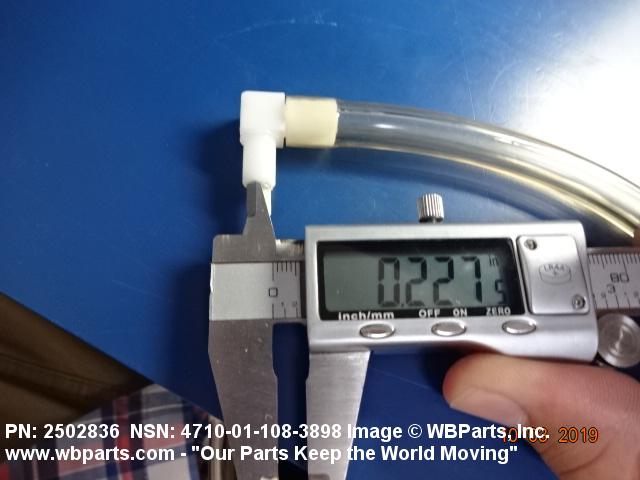

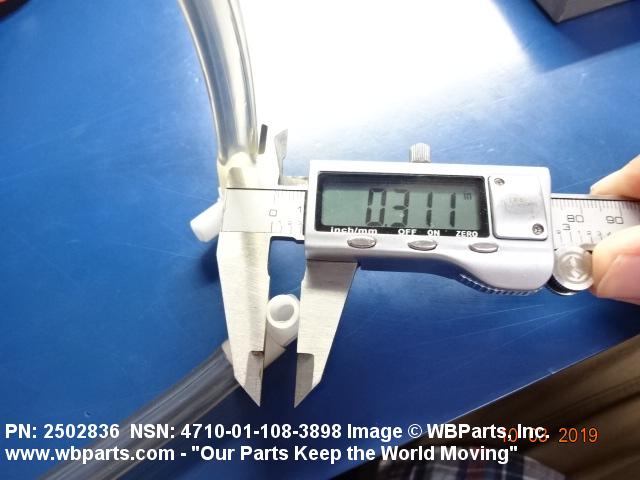

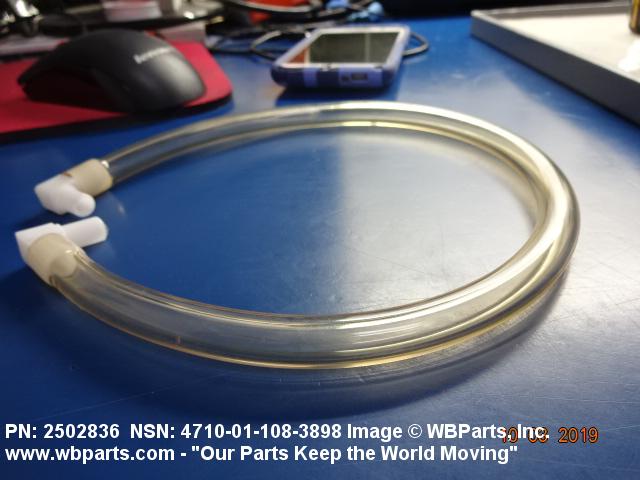

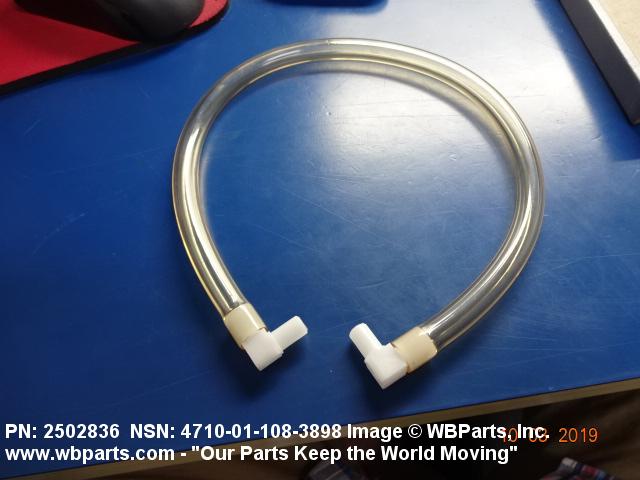

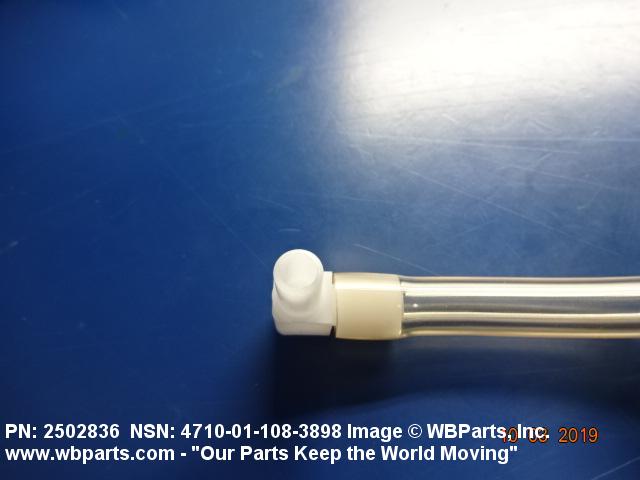

Drawings & Photos | NSN 4710-01-108-3898
Demand History | NSN 4710-01-108-3898
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4710-01-108-3898 | 2019-09-261 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4710-01-108-3898
Related Products | NSN 4710-01-108-3898
Technical Data | NSN 4710-01-108-3898
| Characteristic | Specifications |
|---|---|
| NONMETALLIC HARDNESS RATING | NOT RATED |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| TUBING MATERIAL | PLASTIC, POLYVINYL CHLORIDE |
| INSIDE SURFACE CONDITION | SMOOTH |
| EXTERIOR COLOR | CLEAR |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.125 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 12.000 INCHES NOMINAL OVERALL |
| FLEXIBILITY | FLEXIBLE |
| FIRST END CONNECTION TYPE | UNTHREADED EXTERNAL TUBE |
| FIRST END CONNECTION DESIGN | ELBOW |
| FIRST END FLOW ANGLE IN DEG | 90.0 |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING PLASTIC, POLYVINYL CHLORIDE |
| FIRST END FITTING/COMPONENT AND SURFACE TREATMENT | COMPLETE FITTING ANY ACCEPTABLE |
| FIRST END TUBE OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP RATING | NOT RATED |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| BURST TEST PRESSURE | NOT RATED |
| MANUFACTURERS CODE | 58568 |
| DESIGN CONTROL REFERENCE | 2502836 |
Restrictions/Controls & Freight Information | NSN 4710-01-108-3898
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 157320 | PLASTIC/RUBBER ARTICLE/ETC VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | XF | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4710-01-108-3898
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z AY : Assembly |
