NSN 4710-01-138-8205 75081A, 01-138-8205, 011388205
Product Details | PLASTIC PIPE
4710-01-138-8205 A tubular product formed from plastic material. The nominal pipe size and outside diameter conform to iron pipe size designators or the dimensions conform to Standard Thermoplastic Pipe Dimensions Ratio (SDR) Tables. It may have threaded ends or the ends may be capable of being formed by heating. For items not conforming to these dimensioning criteria, see TUBING, NONMETALLIC.
Part Alternates: 75081A, 4710-01-138-8205, 01-138-8205, 4710011388205, 011388205
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 21 SEP 1982 | 01-138-8205 | 21439 ( PIPE, PLASTIC ) |
Drawings & Photos | NSN 4710-01-138-8205
Demand History | NSN 4710-01-138-8205
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4710-01-138-8205 | 2015-06-180 | 1 | DIBBS |
| 4710-01-138-8205 | 2015-06-167 | 1 | DIBBS |
Cross Reference | NSN 4710-01-138-8205
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 75081A | 59500 | TENNANT COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4710-01-138-8205
Related Products | NSN 4710-01-138-8205
Technical Data | NSN 4710-01-138-8205
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| NOMINAL PIPE SIZE DESIGNATION | 3.000 INCHES |
| WALL THICKNESS | 0.216 INCHES NOMINAL |
| INSIDE DIAMETER | 2.568 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.500 INCHES NOMINAL |
| LENGTH | 25.000 FEET NOMINAL |

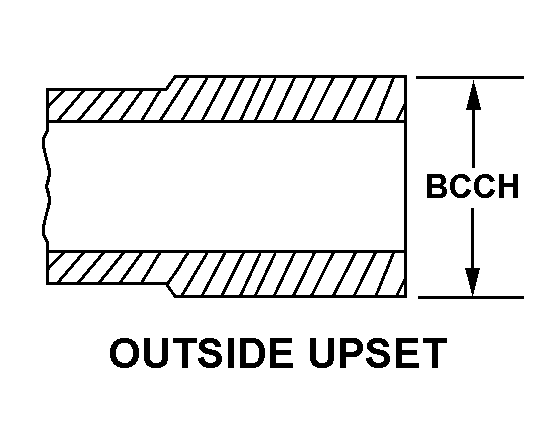

| END CONNECTION STYLE | A3 OUTSIDE UPSET |
| END OUTSIDE DIAMETER | 3.000 INCHES NOMINAL |
| COLOR | ANY ACCEPTABLE |
| SPECIAL FEATURES | THE FLANGE END HAS A WELDED PLATE ON A 40 DEGREE ANGLE WITH SIX 0.281 INCH DIAMETER HOLES DRILLED THRU AND EQUALLY SPACED 0.620 INCH IN FROM PERIMETER; 3.810 INCH CENTER TO CENTER EACH HOLE ALONG THE LENGTH AND 4.750 INCH CENTER TO CENTER ALONG WIDTH; PLATE IS 0.375 INCH THICK BY 7.620 INCHES LONG BY 6.000 INCHES WIDE |
| MANUFACTURERS CODE | 59500 |
| DESIGN CONTROL REFERENCE | 75081A |
Restrictions/Controls & Freight Information | NSN 4710-01-138-8205
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 157320 | PLASTIC/RUBBER ARTICLE/ETC VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4710-01-138-8205
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
