NSN 4710-01-216-1163 10302666 , 74A695540, 74A6955401001
Product Details | METAL TUBE ASSEMBLY
4710-01-216-1163 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: 10302666 , 74A695540, 74A6955401001, 74A695540-1001, 4710-01-216-1163, 01-216-1163, 4710012161163, 012161163
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 06 SEP 1985 | 01-216-1163 | 21989 ( TUBE ASSEMBLY, METAL ) |

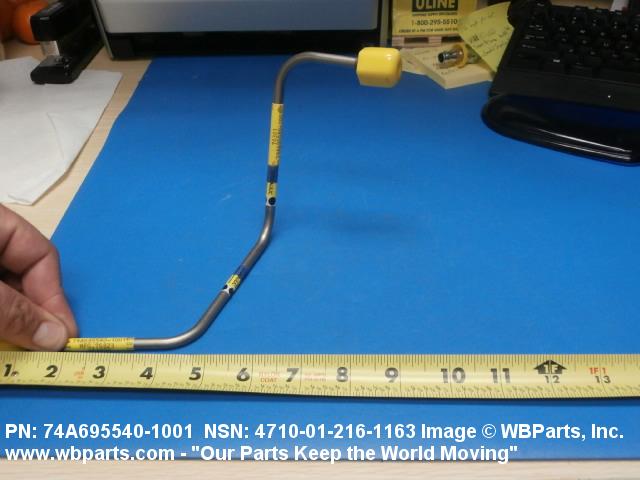

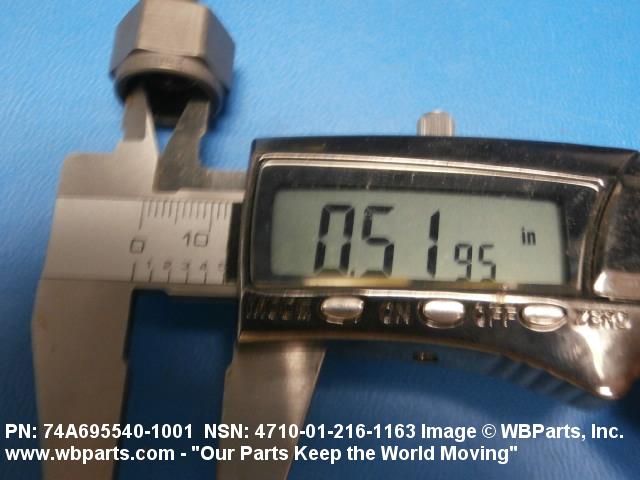

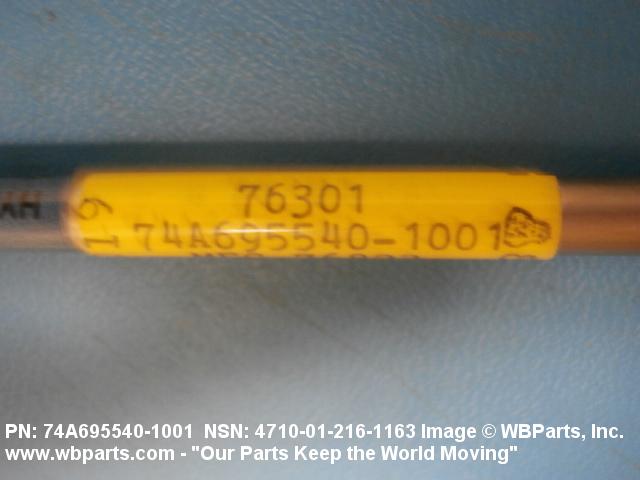

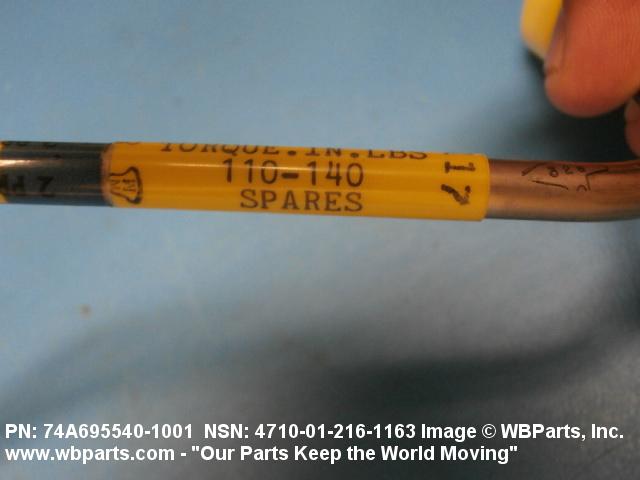

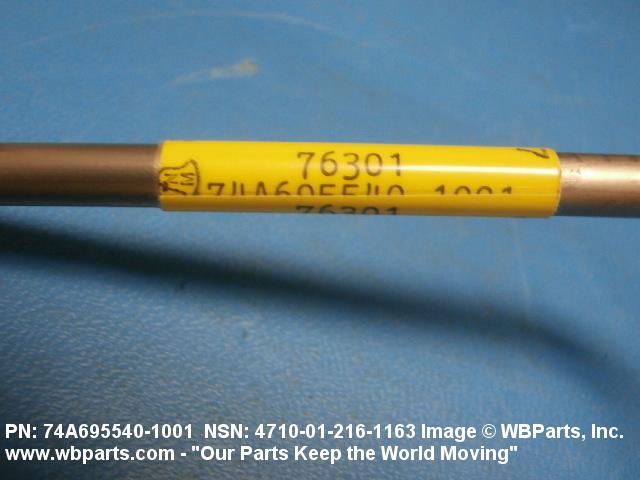

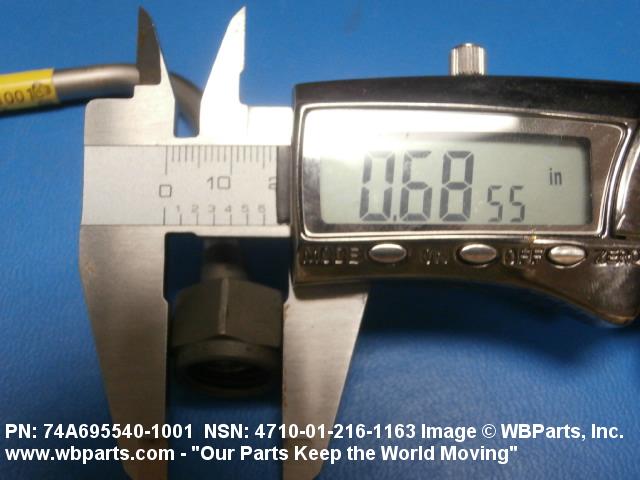

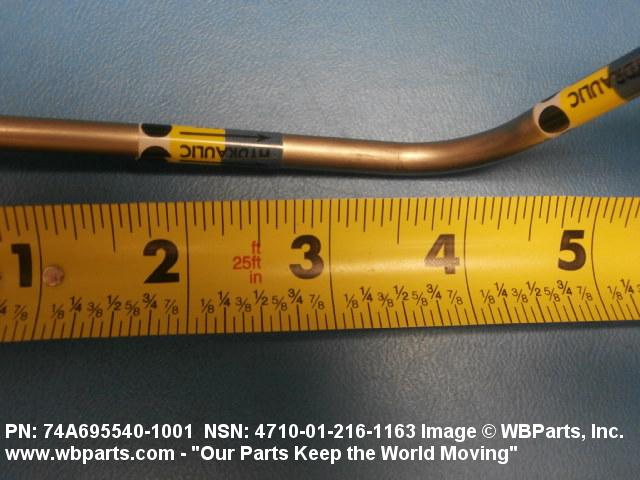

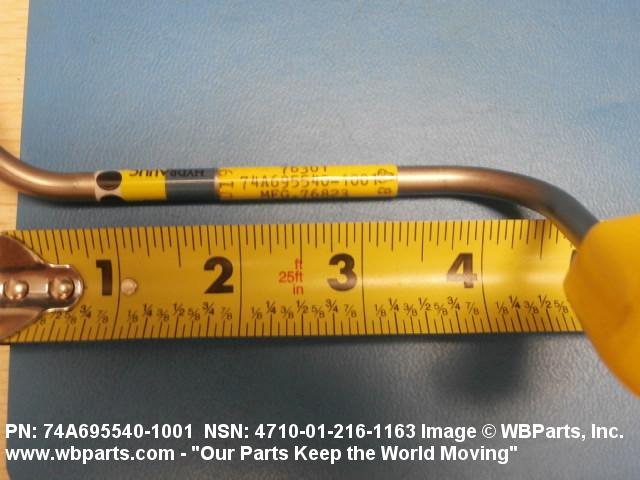

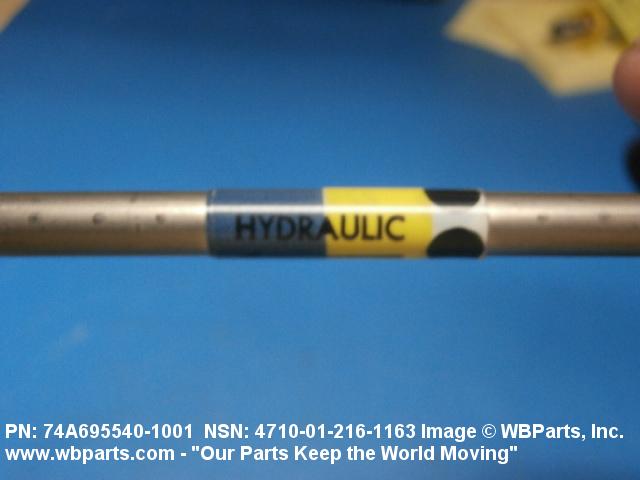

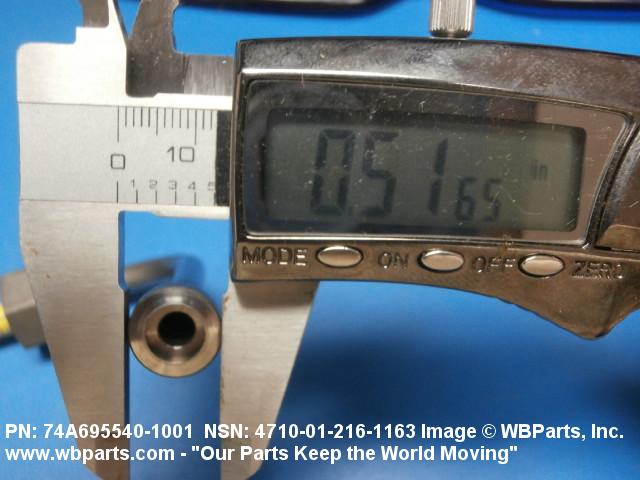

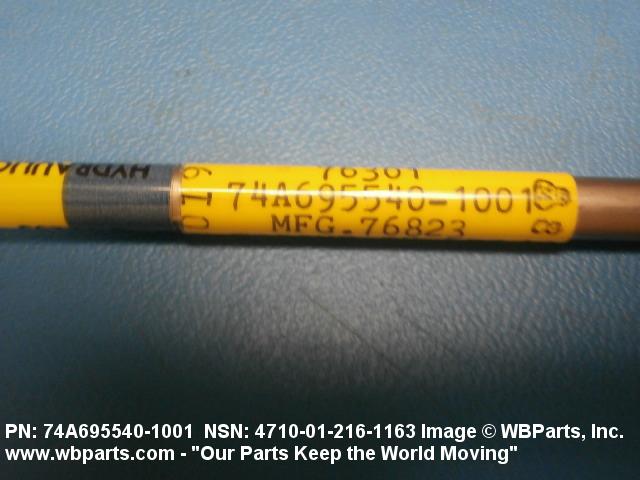

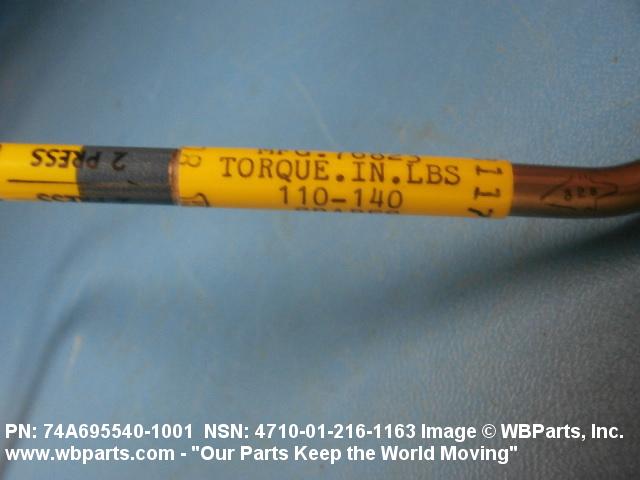

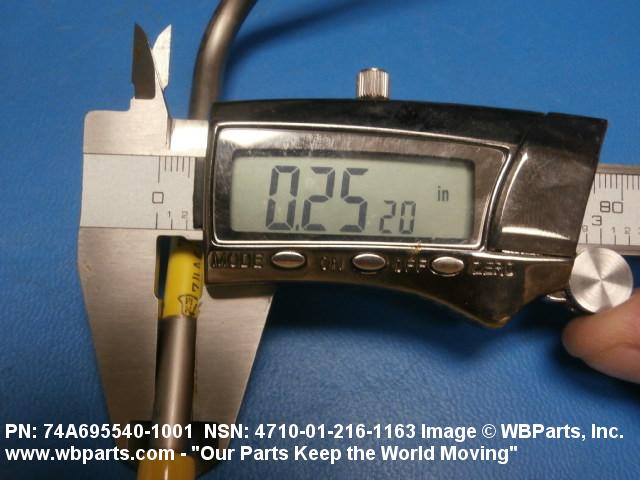

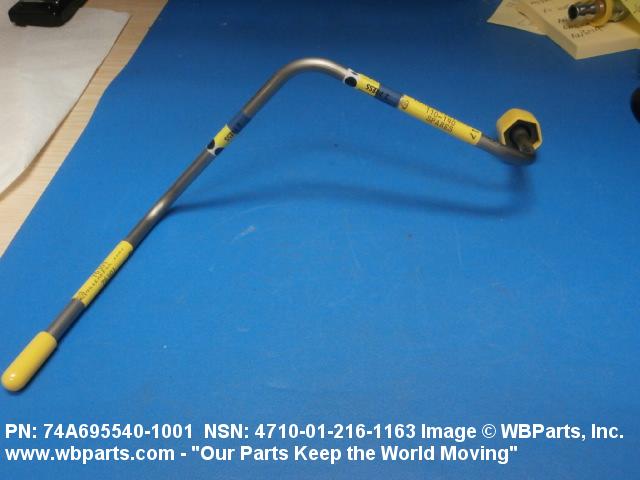

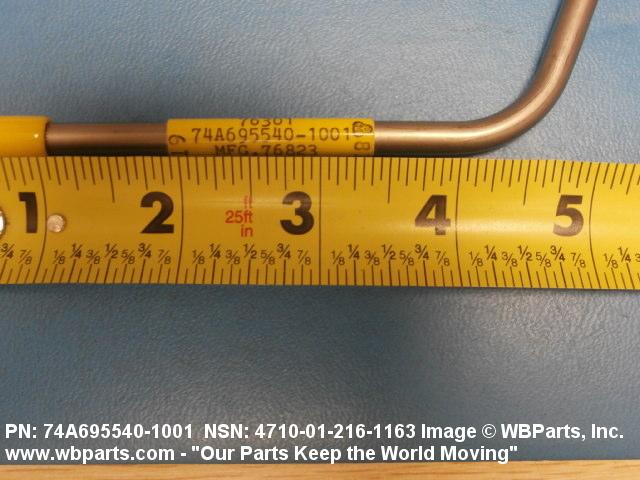

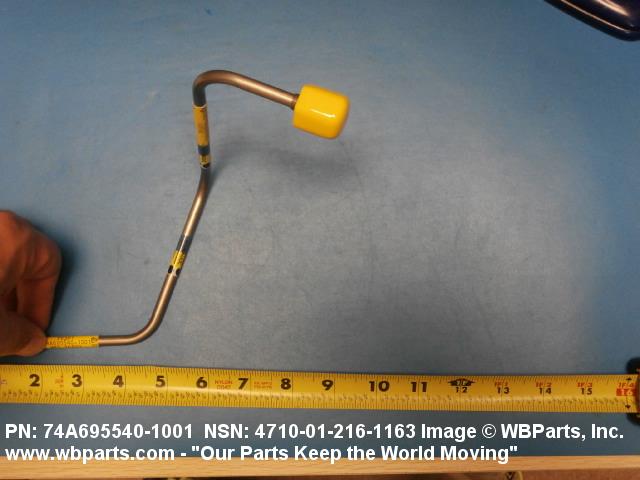

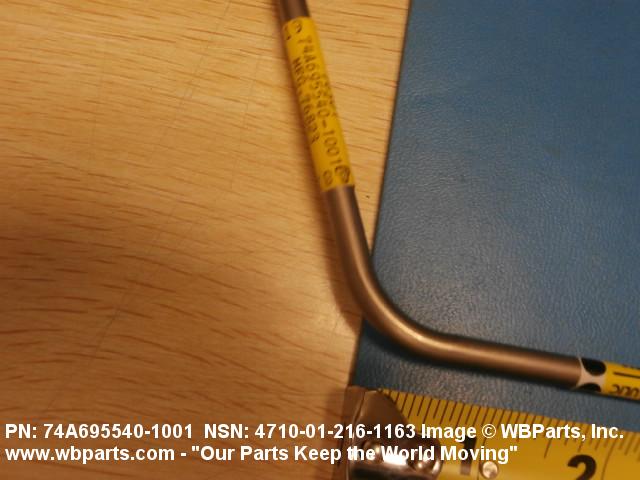

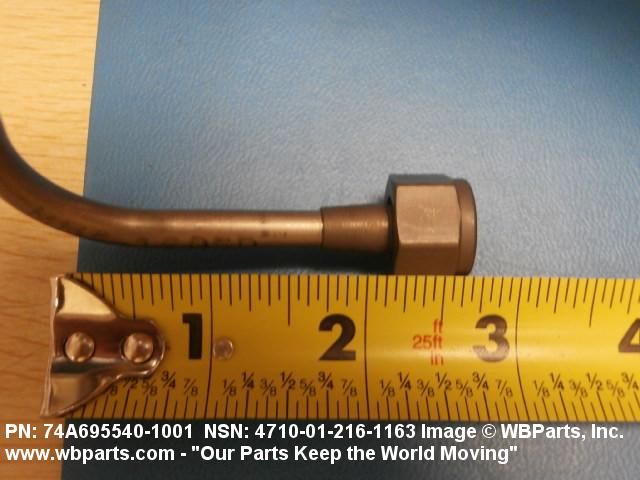

Drawings & Photos | NSN 4710-01-216-1163
Demand History | NSN 4710-01-216-1163
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4710-01-216-1163 | 2017-05-142 | 3 | DIBBS |
| 4710-01-216-1163 | 2016-06-157 | 2 | DIBBS |
| 4710-01-216-1163 | 2016-05-144 | 2 | DIBBS |
| 4710-01-216-1163 | 2016-03-90 | 21 | DIBBS |
| 4710-01-216-1163 | 2016-02-42 | 1 | United States |
| 4710-01-216-1163 | 2015-12-354 | 13 | DIBBS |
| 4710-01-216-1163 | 2015-12-340 | 13 | DIBBS |
| 4710-01-216-1163 | 2015-10-292 | 1 | DIBBS |
| 4710-01-216-1163 | 2015-10-279 | 1 | DIBBS |
| 4710-01-216-1163 | 2015-09-263 | 8 | DIBBS |
| 4710-01-216-1163 | 2015-08-215 | 1 | United States |
| 4710-01-216-1163 | 2015-05-148 | 18 | DIBBS |
| 4710-01-216-1163 | 2014-08-237 | 1 | DIBBS |
| 4710-01-216-1163 | 2014-08-224 | 1 | DIBBS |
| 4710-01-216-1163 | 2013-06-156 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-01-216-1163
Technical Data | NSN 4710-01-216-1163
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | TITANIUM |
| TUBE OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |
| WALL THICKNESS | 0.016 INCHES NOMINAL |
| END CONNECTION STYLE | B8 SWIVEL NUT, INVERTED FLARE SINGLE END |
| MATING END QUANTITY | 1 SINGLE END |
| MATERIAL | TITANIUM SINGLE END |
| THREAD SERIES DESIGNATOR | UNJS SINGLE END |
| NOMINAL THREAD SIZE | 0.562 INCHES SINGLE END |
| THREAD CLASS | 3B SINGLE END |
| THREAD DIRECTION | RIGHT-HAND SINGLE END |
| SEAT ANGLE IN DEG | 8.5 SINGLE END |
| DESIGN FORM | PREBENT |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 74A695540-1001 |
Restrictions/Controls & Freight Information | NSN 4710-01-216-1163
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI SUB1 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4710-01-216-1163
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
